926345 (PRO 28) - Ariens Hydro Pro 28" Track Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Controls Parts Diagram

Hydro Pro 28" Track Snow Blower, Ariens AX 420cc EFI

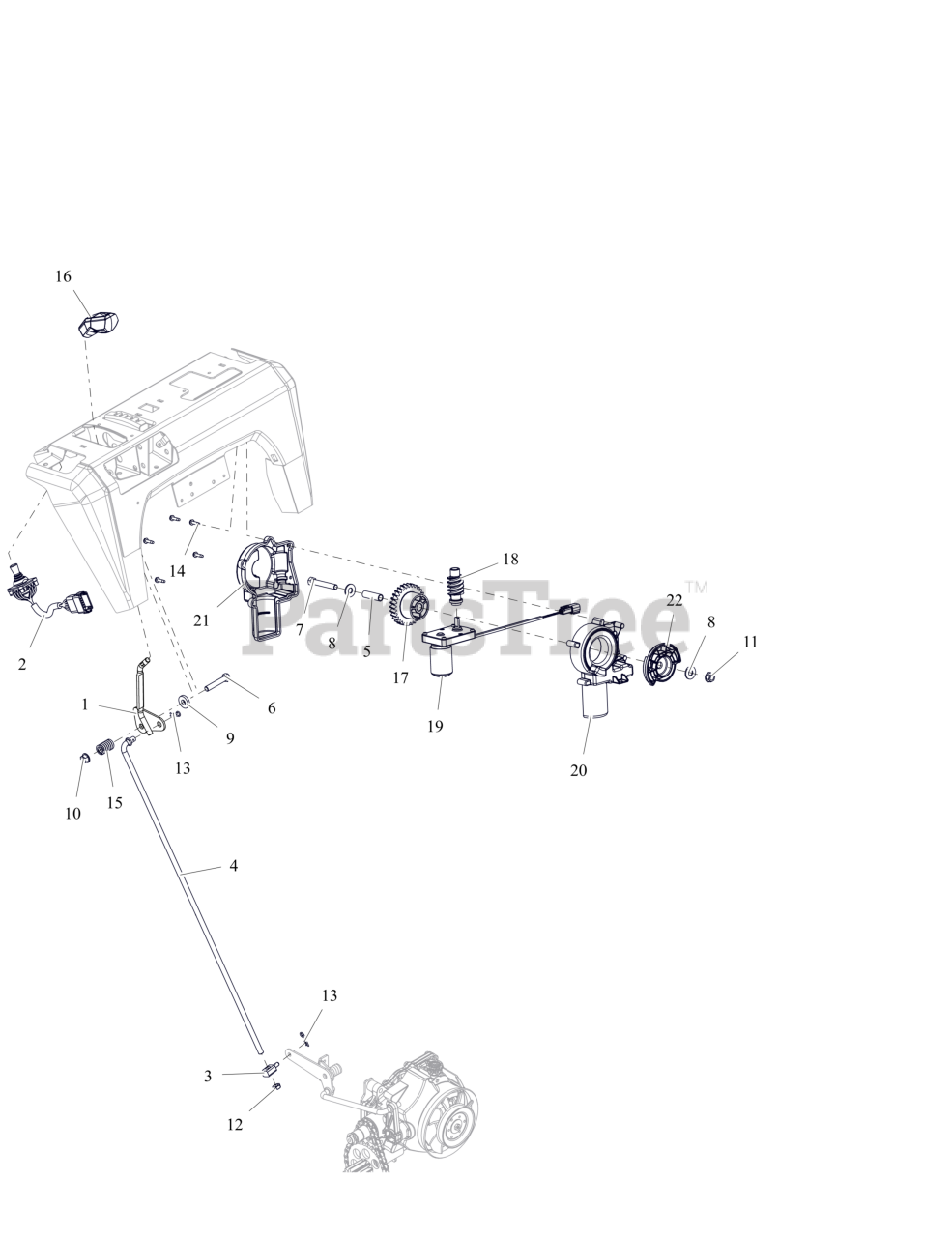

Controls Parts Diagram

  • Title

1

Ariens 04846900

WELDMENT,LG DASH SPEED CONTROL

$15.99

$

Usually ships in 4-12 days

0

2

Ariens 09429200

HARNESS, JOYSTICK

$129.99

$

Usually ships in 4-12 days

0

3

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

Usually ships in 4-12 days

0

4

Ariens 04753600

ROD, SHIFT - PRO

$27.99

$

Usually ships in 4-12 days

0

5

Ariens 05501438

BSHG-SLV- .391X.500X.1.750

$1.99

$

Usually ships in 4-12 days

0

6

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 9

0

7

Ariens 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

8

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, only 4 left!

0

9

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 19

0

10

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, only 4 left!

0

13

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 14

0

14

Ariens 07400208

SCR- TAP #10-32X.750 T23 ZCC

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

Usually ships in 4-12 days

0

16

Ariens 09382800

KNOB, CONTROL

$11.99

$

Usually ships in 4-12 days

0

17

Ariens 09384600

GEAR, HELICAL

$22.99

$

Usually ships in 4-12 days

0

18

Ariens 09384700

WORM, DRIVE

$

$

Not available

19

Ariens 09384800

MOTOR, E-CHUTE

$102.99

$

Usually ships in 4-12 days

0

20

Ariens 09384900

ENCLOSURE, CAP ACTUATION (MALE)

$34.99

$

Usually ships in 4-12 days

0

21

Ariens 09385000

ENCLOSURE, CAP ACTUATION (FEMALE)

$34.99

$

Usually ships in 4-12 days

0

22

Ariens 09385100

ADAPTOR, CAM

$22.99

$

Usually ships in 4-12 days
