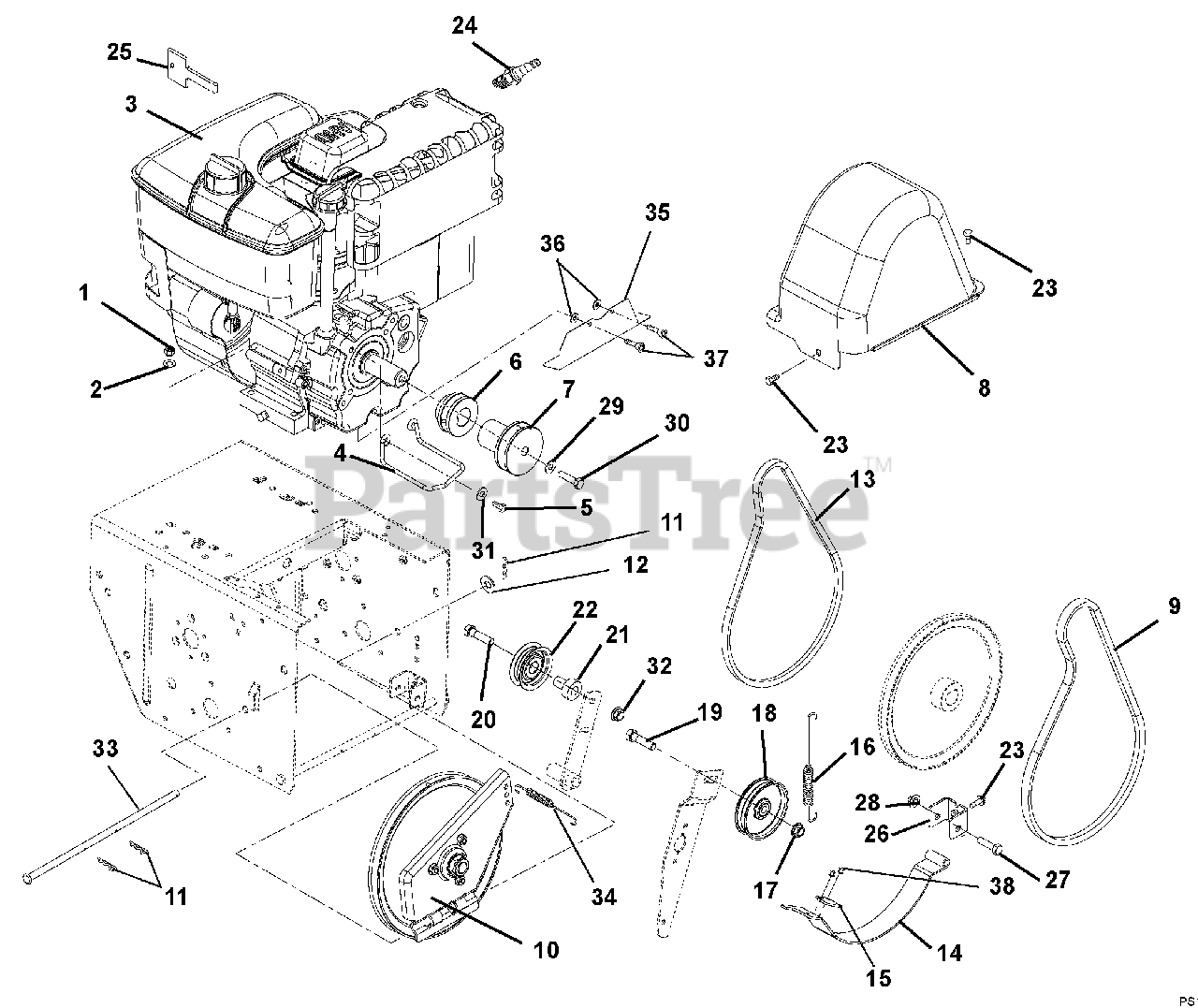

926503 - Gravely 36" Power Brush, Tecumseh (SN: 000101 - 001000) Engine And Belt Drive Parts Diagram

36" Power Brush, Tecumseh

Engine And Belt Drive Parts Diagram

  • Title

1

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

2

Gravely 06307400

Washer, Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

3

Gravely 08200042

Engine, 9HP Tecumseh OH318EA - 222719E

$

$

Not available

4

Gravely 00461900

Belt Finger
(Superseded to 05273200)

$18.99

$

In Stock, only 1 left!

0

4

Gravely 00432700

Belt Finger
(Superseded to 52602600)

Note: (serial number 000101 - 000109)

$68.99

$

Usually ships in 4-12 days

0

5

Gravely 05947300

Bolt, Hex .31-24 x .75 Grade 5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05947300

Bolt, Hex .31-24 x .75 Grade 5
(Superseded to 05902014)

Note: (serial number 000101 - 000109)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 00397100

Sheave, Drive
(Superseded to 52616500)

$15.99

$

In Stock, only 1 left!

0

7

Gravely 00397000

Sheave, Attachment

$

$

Not available

8

Gravely 00384100

Cover, Belt

$45.99

$

In Stock, only 2 left!

0

9

Gravely 07200020

V-Belt 4L
(Superseded to 07200623)

$36.99

$

In Stock, Qty 8

0

10

Gravely 52602100

Plate, Swing Assembly

Note: (serial number 000101 - 000300)

$

$

Not available

10

52602800

Plate, Deep Swing Assembly

Note: (serial number 000301 & up)

$

$

Not available

11

Gravely 06714800

Hair Pin
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

12

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 07200101

V-Belt,Traction Drive

Note: (serial number 000101 - 000300)

$19.99

$

Usually ships in 4-12 days

0

13

Gravely 07200110

V-Belt,Traction Drive 3L

Note: (serial number 000301 & up)

$20.99

$

In Stock, Qty 20+

0

14

Gravely 00374900

Arm, Brake Attachment

$25.99

$

Usually ships in 4-12 days

0

15

Gravely 00180500

Pad, Brake

Note: (Not Shown)

$10.99

$

In Stock, Qty 5

0

16

Gravely 08300017

Spring, Tension

$5.99

$

In Stock, Qty 20+

0

17

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07300013

Idler, Flat 3.00

$34.99

$

In Stock, only 1 left!

0

19

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 6

0

20

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

21

Gravely 01213100

Spacer, Bearing

$3.49

$

In Stock, Qty 6

0

22

Gravely 02457400

Idler
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

23

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 21533500

Plug, Spark

$4.49

$

In Stock, Qty 7

0

25

Gravely 07532000

Key, Push/Pull Tecumseh
(Superseded to 07500108)

$7.99

$

In Stock, only 4 left!

0

26

Gravely 00430751

Pivot, Brake
(Superseded to 00430700)

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 05957200

Bolt, Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 14

0

28

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06308800

Washer, Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

30

Gravely 05958600

Bolt, Hex .38-24 x 2.0
(Superseded to 05902015)

$2.99

$

In Stock, only 2 left!

0

31

Gravely 06307400

Washer, Locking .312 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

31

Gravely 06307400

Washer, Locking .312 x .097 Heavy
(Superseded to 06300123)

Note: (serial number 000101 - 000109)

$0.99

$

In Stock, only 4 left!

0

32

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 00380900

Rod, Pivot

$40.99

$

In Stock, only 1 left!

0

34

Gravely 08300019

Spring, Tension

$5.99

$

In Stock, Qty 18

0

35

Gravely 03276651

Baffle, Engine (Serial No. 553 and up)

Note: (serial number 000553-)

$24.99

$

Usually ships in 4-12 days

0

36

Gravely 06400828

Washer, Flat-Steel .536 x 1.07 x .109 (Serial No. 553 and up)

Note: (serial number 000553-)

$2.49

$

Usually ships in 4-12 days

0

37

Gravely 06100203

Screw, Machine .31-24 x .75 EP80 (Serial No. 553 and up)

Note: (serial number 000553-)

$4.99

$

Usually ships in 4-12 days

0

38

Gravely 06800028

Rivet, Pop .187
(Superseded to 06800140)

$0.99

$

In Stock, Qty 10

0
