926503 - Gravely 36" Power Brush, Tecumseh (SN: 000101 - 001000) Handlebars, Lever Controls, Panel And Dash Parts Diagram

36" Power Brush, Tecumseh

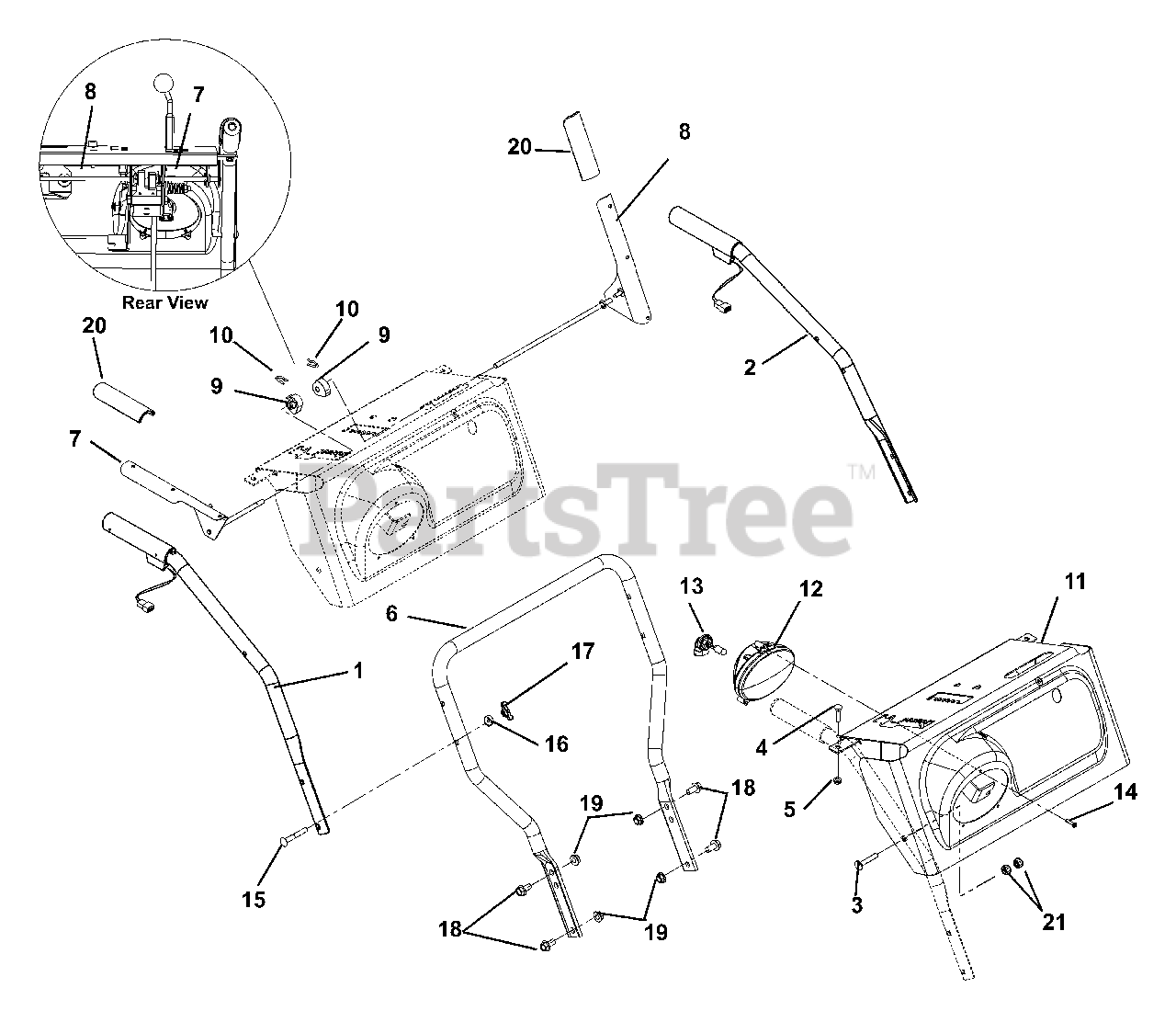

Handlebars, Lever Controls, Panel And Dash Parts Diagram

  • Title

1

Gravely 52602000

HANDLEBAR, UPPER RH-W/HW

$159.99

$

Usually ships in 4-12 days

0

2

Gravely 52601900

HANDLEBAR, UPPER LH-W/HW

$159.99

$

Usually ships in 4-12 days

0

3

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 15

0

4

Gravely 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5YZ

$2.99

$

In Stock, Qty 9

0

5

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 13

0

6

Gravely 00373251

HANDLEBAR, LOWER

$102.99

$

Usually ships in 4-12 days

0

7

Gravely 00393051

LEVER, RH-ATTACHMENT

$65.99

$

In Stock, only 3 left!

0

8

Gravely 00393151

LEVER, LH-TRACTION

$75.99

$

In Stock, only 3 left!

0

9

Gravely 02492100

CAM, INTERLOCK
(Superseded to 03888100)

$8.49

$

In Stock, only 2 left!

0

10

Gravely 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 20+

0

11

Gravely 52602300

PANEL-W/CONTROL GR BRUSH DECAL

$167.99

$

Usually ships in 4-12 days

0

12

Gravely 00432500

LIGHT, HALOGEN ASSY.

Note: (Bulb Included)

$23.99

$

In Stock, only 2 left!

0

13

Gravely 00432600

BULB, LIGHT-HALOGEN 20W

$17.99

$

In Stock, only 2 left!

0

14

Gravely 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$0.99

$

Usually ships in 4-12 days

0

15

Gravely 06221600

BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

In Stock, Qty 12

0

16

Gravely 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, only 4 left!

0

17

Gravely 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

19

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 00384500

GRIP, CLUTCH LEVER, LH AND RH

$2.49

$

In Stock, only 2 left!

0

21

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0
