926503 - Gravely 36" Power Brush, Tecumseh (SN: 000101 - 001000) Wheels And Axles Parts Diagram

36" Power Brush, Tecumseh

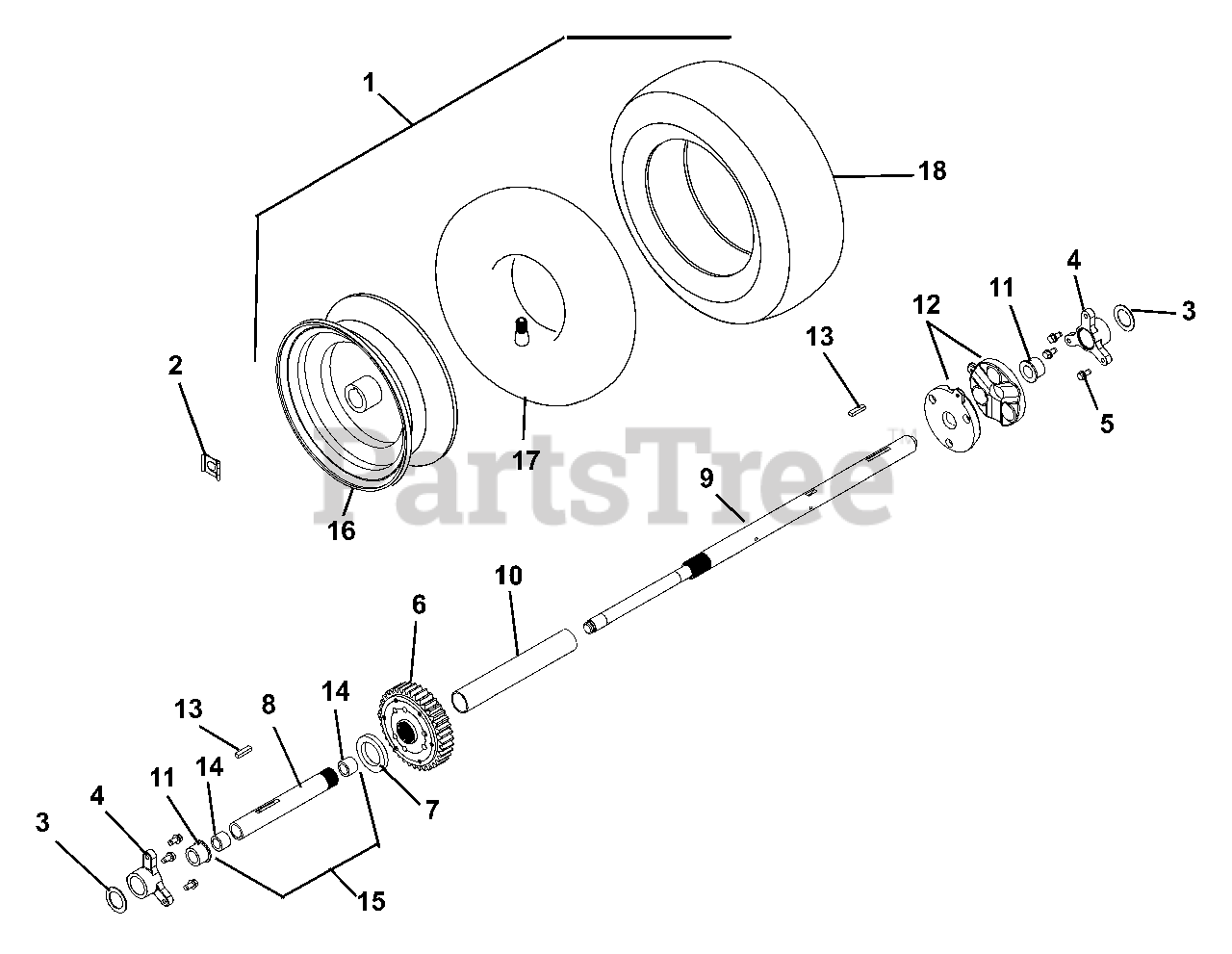

Wheels And Axles Parts Diagram

  • Title

1

Gravely 07100030

Tire/Wheel Assembly RH 16 x 6.50 - 8 Differential
(Superseded to 07101139)

Note: (Includes 16-18)

$148.99

$

Usually ships in 4-12 days

0

1

Gravely 07100031

Tire/Wheel Assembly LH 16 x 6.50 - 8 Differential
(Superseded to 07101140)

Note: (Includes 16-18)

$148.99

$

In Stock, only 2 left!

0

2

Gravely 05700001

Clip, Snap

$2.49

$

In Stock, only 3 left!

0

3

Gravely 06436300

Washer, Flat Steel 1.010 x 1.505 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 16

0

4

Gravely 00275100

Bushing, Rake Shaft 1"

$11.99

$

In Stock, Qty 20+

0

5

Gravely 07412000

Screw, Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 52601600

Differential, Remote Assembly

$227.99

$

In Stock, only 2 left!

0

7

Gravely 06400012

Washer, Flat Nylon 1.38 x 2.00 x .25

$5.99

$

In Stock, only 2 left!

0

8

Gravely 00375900

Axle, Differential-Short
(Superseded to 52601700)

$100.99

$

In Stock, Qty 12

0

9

Gravely 00376000

Axle, Differential-Long

$366.99

$

In Stock, Qty 5

0

10

Gravely 00386500

Tube, Axle

$21.99

$

Usually ships in 4-12 days

0

11

Gravely 05500030

Bushing, Flange Split Nyliner 1.0" HP

$6.99

$

In Stock, Qty 20+

0

12

Gravely 00382900

Cam, Differential

$

$

Not available

13

Gravely 06600002

Key .25 x .188 x 1.00

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05500023

Bushing, Sleeve .706 x .764 x .75

$3.99

$

In Stock, Qty 19

0

15

Gravely 52601700

Axle, Differential with Bushings

Note: (Includes 8 and 14)

$100.99

$

In Stock, Qty 12

0

16

Gravely 07100103

Hub, Wheel- 16 x 6.5-8 Differential

$59.99

$

In Stock, only 1 left!

0

17

Gravely 07108700

Tube 16 x 6.50- 8

$34.99

$

Usually ships in 4-12 days

0

18

Gravely 07100108

Tire, X-TRAC 16 x 6.5-8

$

$

Not available
