926503 - Gravely 36" Power Brush, Tecumseh (SN: 000101 - 001000) Wheels And Axles Parts Diagram

36" Power Brush, Tecumseh

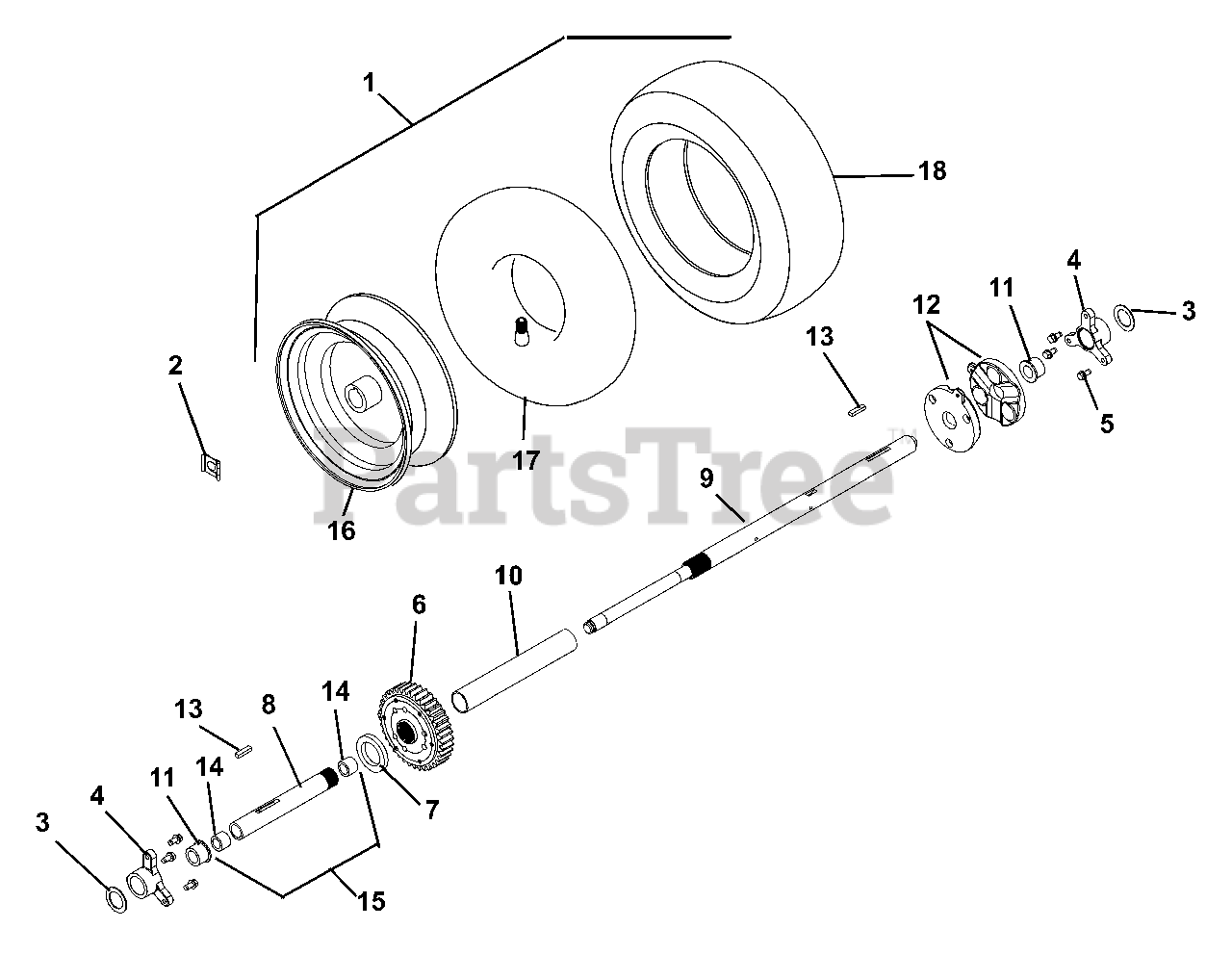

Wheels And Axles Parts Diagram

  • Title

1

Gravely 07100030

TIRE/WHEEL, RH 16X6.50-8 DIFF
(Superseded to 07101139)

Note: (Includes 16-18)

$151.99

$

Usually ships in 4-12 days

0

Gravely 07100031

TIRE/WHEEL, LH 16X6.50-8 DIFF
(Superseded to 07101140)

Note: (Includes 16-18)

$151.99

$

In Stock, only 1 left!

0

2

Gravely 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 13

0

3

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, only 2 left!

0

5

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 52601600

DIFFERENTIAL, REMOTE-ASSY

$231.99

$

In Stock, Qty 7

0

7

Gravely 06400012

WSHR-FL-NY 1.38X2.00X.25

$6.49

$

In Stock, only 1 left!

0

8

Gravely 00375900

AXLE, DIFFERENTIAL-SHORT
(Superseded to 52601700)

$112.99

$

In Stock, only 2 left!

0

9

Gravely 00376000

AXLE, DIFFERENTIAL-LONG

$373.99

$

In Stock, only 2 left!

0

10

Gravely 00386500

TUBE, AXLE

$22.99

$

In Stock, only 3 left!

0

11

Gravely 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$7.49

$

In Stock, Qty 16

0

12

Gravely 00382900

CAM, DIFFERENTIAL

$

$

Not available

13

Gravely 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

15

Gravely 52601700

AXLE, DIFFERENTIAL-W/BUSHINGS

Note: (Includes 8 and 14)

$112.99

$

In Stock, only 2 left!

0

16

Gravely 07100103

HUB, WHEEL - 16X6.5-8 DIFF

$65.99

$

Usually ships in 4-12 days

0

17

Gravely 07108700

TUBE

$23.99

$

Usually ships in 4-12 days

0

18

Gravely 07100108

TIRE, X-TRAC 16X6.5-8

$

$

Not available
