926503 - Gravely 36" Power Brush, Tecumseh (SN: 001001 & Above)

36" Power Brush, Tecumseh

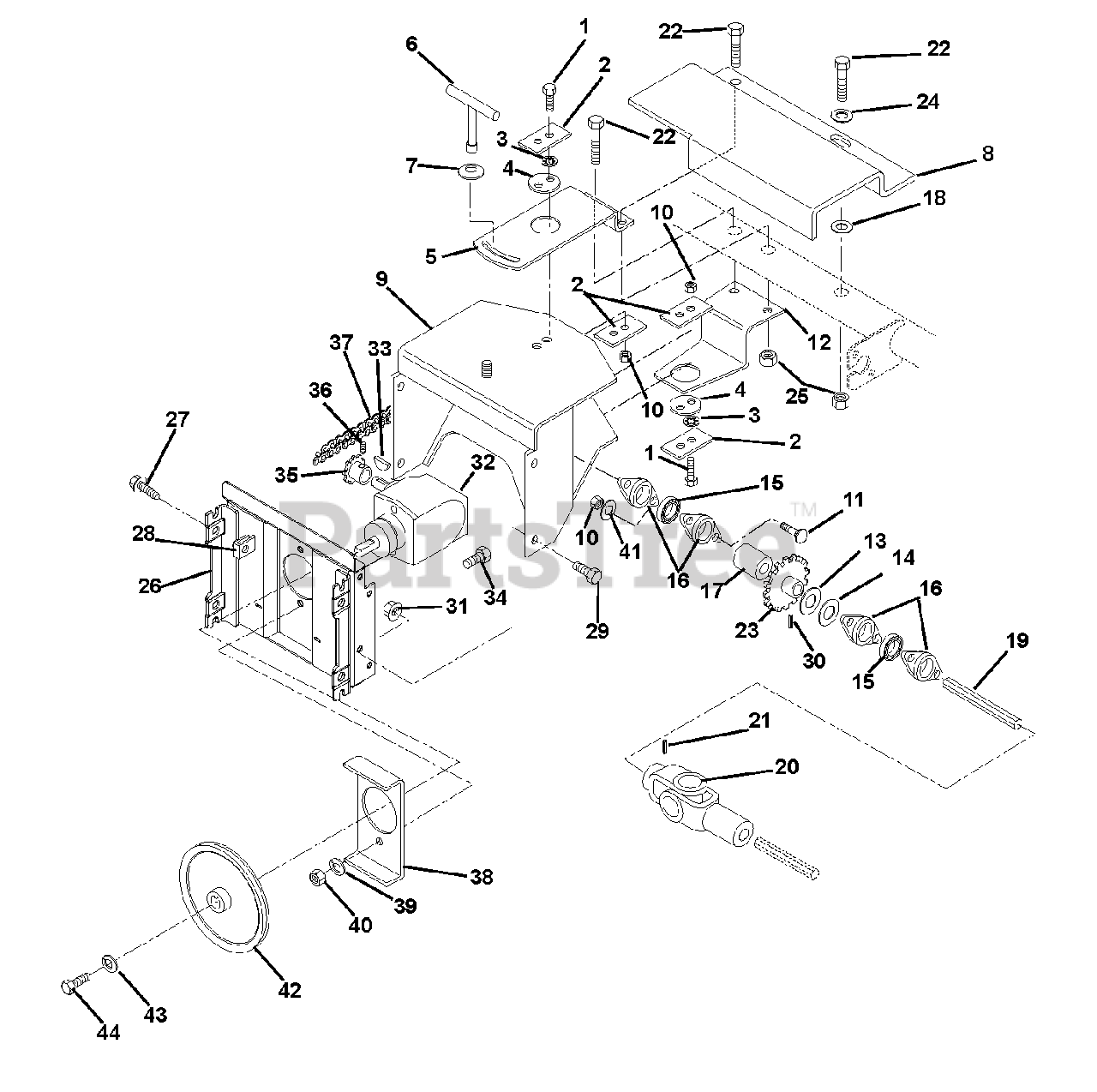

926503 - Gravely 36" Power Brush, Tecumseh (SN: 001001 & Above) > Parts Diagrams (12) > Brush Drive Unit

  • Title
05947500

1

Bolt, Hex .31-18 x 1.25 Grade 5

Part# 05947500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

02404800

2

Retainer

Part# 02404800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $17.55

06307200

3

Washer, Locking External .326 x .599 x .031

Part# 06307200

OEM Warranty Repair Part for Gravely

Not available

02404900

4

Pivot, Center

Part# 02404900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $17.55

02471751

5

Plate, Top Mount

Part# 02471751

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $74.35

02470900

6

T-Lock Handle

Part# 02470900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.60

06445700

7

Washer, Bellville .63 x 1.625 x .14

Part# 06445700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

02470151

8

Guard, Shaft

Part# 02470151

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

02405051

9

Frame, Adapter

Part# 02405051

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $188.16

06529800

10

Nut, Locking Center .31-18

Part# 06529800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06215700

11

Bolt, Round Head Square Neck .31-18 x .75 Grade 5

Part# 06215700 (Superseded to 06200232)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

02471851

12

Plate, Bottom Mount

Part# 02471851

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $66.91

06400025

13

Washer, Flat Steel 1.031 x 1.625 x .188

Part# 06400025

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06400026

14

Washer, Flat Steel 1.03 x 1.31 x .105

Part# 06400026

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05409700

15

Bearing, Ball

Part# 05409700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $81.56

02429600

16

Flange, Bearing

Part# 02429600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

02447600

17

Spacer

Part# 02447600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.13

06436800

18

Washer, Flat Steel .390 x .88 x .18

Part# 06436800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02429100

19

Shaft

Part# 02429100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $74.35

02495500

20

Universal Joint

Part# 02495500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $267.23

05803000

21

Pin, Roll .188 x 1.50

Part# 05803000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05961100

22

Bolt, Hex .38-16 x 3.25 Grade 5

Part# 05961100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

01062000

23

Sprocket

Part# 01062000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $98.33

06436200

24

Washer, Flat Steel .406 x .812 x .065

Part# 06436200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529600

25

Nut, Locking Center .38-16

Part# 06529600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

00430851

26

Plate, Mounting Broom

Part# 00430851

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $60.15

07028500

27

Bolt, Hex Flanged Whizloc Head .38-16 x .75

Part# 07028500

OEM Warranty Repair Part for Gravely

Not available

07053300

28

Nut, Retainer .38-16

Part# 07053300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05959400

29

Bolt, Hex .38-16 x .75 Grade 5

Part# 05959400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05805600

30

Pin, Roll .188 x 1.75

Part# 05805600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06529600

31

Nut, Locking Center .38-16

Part# 06529600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

02499300

32

Gear Box Assembly

Part# 02499300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $382.19

06600300

33

Key, Woodruff .188 x .75 x .313 SAE 9

Part# 06600300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05958000

34

Bolt, Hex .38-16 x 1.25 Grade 5

Part# 05958000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

02429800

35

Sprocket

Part# 02429800

OEM Warranty Repair Part for Gravely

Not available

06001100

36

Screw, Set .25-20 x .38 Socket Head Cup Point

Part# 06001100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

02477700

37

Chain

Part# 02477700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

02429551

38

Plate, Stiffener

Part# 02429551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $19.90

06308800

39

Washer, Lock .38 x .094

Part# 06308800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529400

40

Nut, Hex .38-16

Part# 06529400 (Superseded to 06500917)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06435700

41

Washer, Flat Steel .38 x .875 x .083

Part# 06435700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

00258551

42

Pulley, 4L with Hub

Part# 00258551 (Superseded to 52610800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $54.06

06307400

43

Washer, Lock .312 x .097

Part# 06307400

OEM Warranty Repair Part for Gravely

Not available

05947300

44

Bolt, Hex .312-24 x .75 Grade 5

Part# 05947300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85
