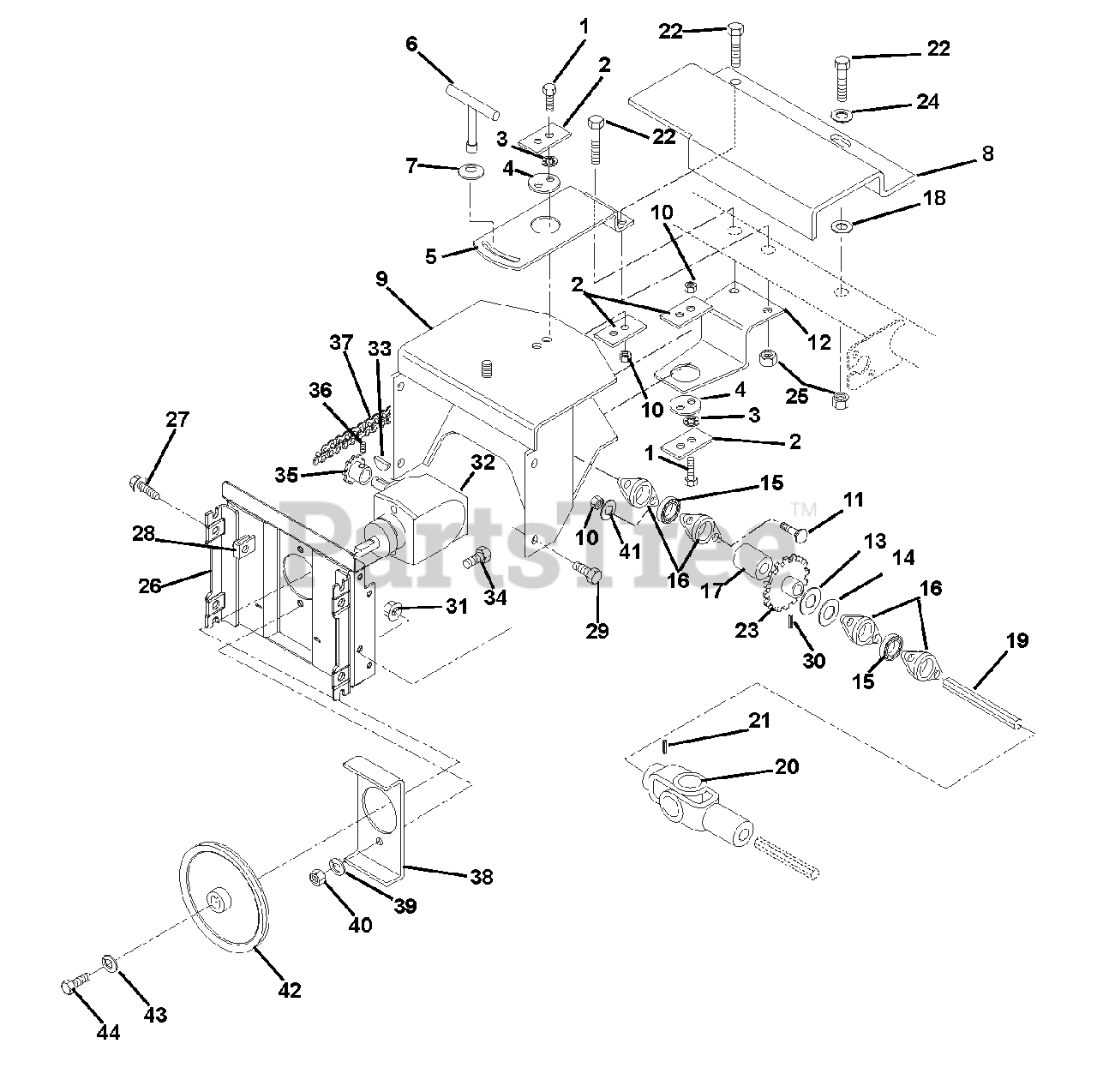

926503 - Gravely 36" Power Brush, Tecumseh (SN: 001001 & Above) Brush Drive Unit Parts Diagram

36" Power Brush, Tecumseh

Brush Drive Unit Parts Diagram

  • Title

1

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 12

0

2

Gravely 02404800

RETAINER

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 06307200

WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

In Stock, Qty 9

0

4

Gravely 02404900

PIVOT CENTER

$21.99

$

Usually ships in 4-12 days

0

5

Gravely 02471751

PLATE, TOP MOUNT

$87.99

$

Usually ships in 4-12 days

0

6

Gravely 02470900

T-LOCK HANDLE

$61.99

$

Usually ships in 4-12 days

0

7

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

8

Gravely 02470151

GUARD, SHAFT

$

$

Not available

9

Gravely 02405051

FRAME, ADAPTOR

$

$

Not available

10

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 02471851

PLATE, BOTTOM MOUNT

$79.99

$

Usually ships in 4-12 days

0

13

Gravely 06400025

WSHR-FL-STL 1.031X1.625X.188

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 06400026

WSHR-FL-STL 1.03X1.31X.105

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 05409700

BRG-BALL .884HEXX52MMX1.07

$96.99

$

Usually ships in 4-12 days

0

16

Gravely 02429600

BEARING FLANGE

$6.49

$

Usually ships in 4-12 days

0

17

Gravely 02447600

SPACER 1.006X1.307X.500

$25.99

$

Usually ships in 4-12 days

0

18

Gravely 06436800

WSHR-FL-STL .390X.88X.18 YWZC

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 02429100

SHAFT

$79.99

$

Usually ships in 4-12 days

0

20

Gravely 02495500

JOINT, UNIVERSAL

$291.99

$

Usually ships in 4-12 days

0

21

Gravely 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 4 left!

0

22

Gravely 05961100

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 01062000

SPROCKET

$105.99

$

Usually ships in 4-12 days

0

24

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 00430851

PLATE, MOUNTING-BROOM

$284.99

$

Usually ships in 4-12 days

0

27

Gravely 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

28

Gravely 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 2 left!

0

29

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

30

Gravely 05805600

PIN-ROLL .188X1.75

$

$

Not available

31

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 02499300

GEAR BOX ASSEMBLY

$416.99

$

Usually ships in 4-12 days

0

33

Gravely 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 13

0

34

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 15

0

35

Gravely 02429800

SPROCKET

$

$

Not available

36

Gravely 06001100

SCR-SET .25-20X.38 SKHCUPNL OH

$2.99

$

In Stock, only 2 left!

0

37

Gravely 02477700

ROLLER CHAIN #41 - 34 PITCHES

$16.99

$

In Stock, only 2 left!

0

38

Gravely 02429551

PLATE, STIFFENER

$

$

Not available

39

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

42

Gravely 00258551

PULLEY, 4L W/HUB - .87 X 8.5
(Superseded to 52610800)

$62.99

$

In Stock, only 1 left!

0

43

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

44

Gravely 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0
