926503 - Gravely 36" Power Brush, Tecumseh (SN: 001001 & Above)

36" Power Brush, Tecumseh

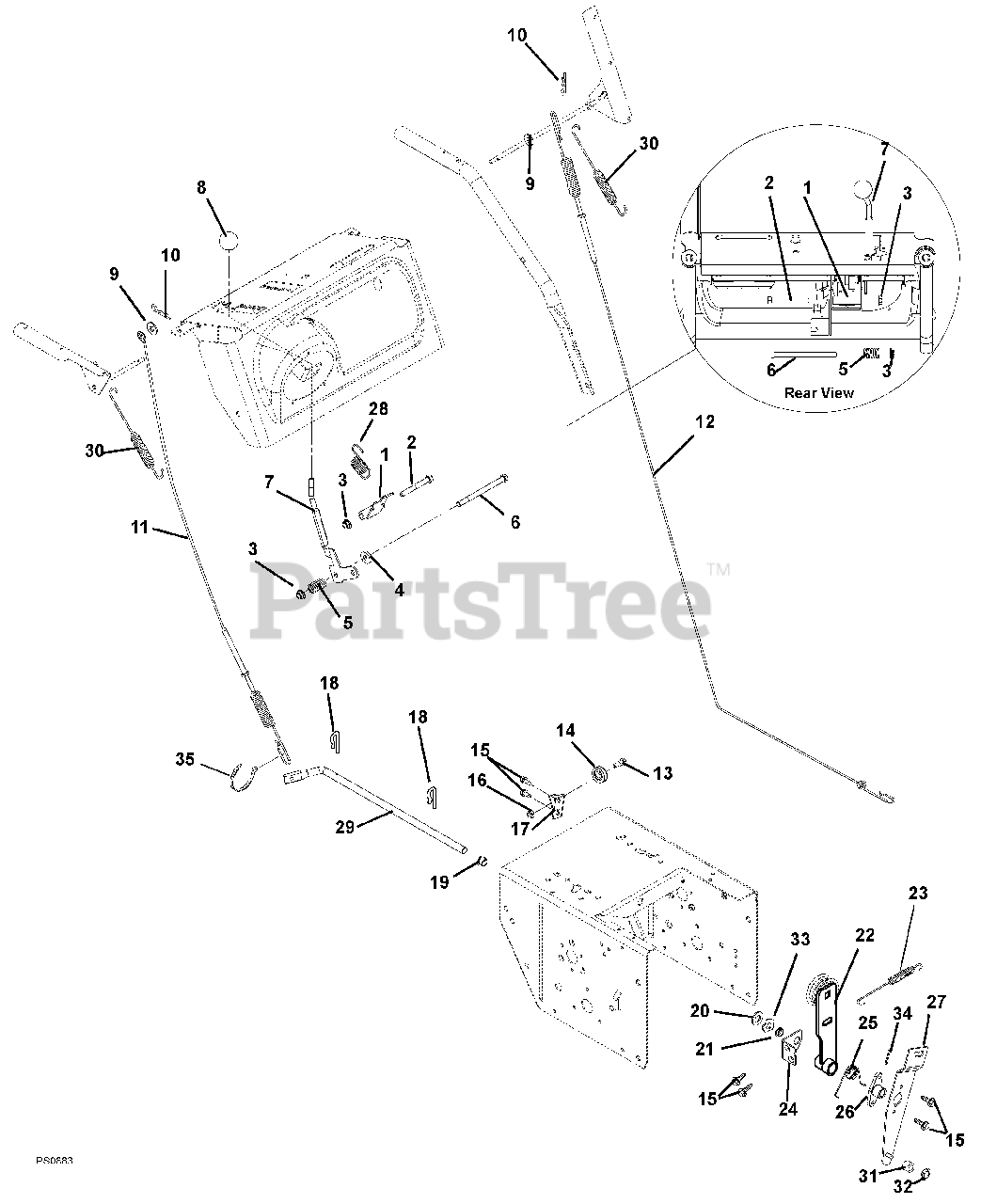

926503 - Gravely 36" Power Brush, Tecumseh (SN: 001001 & Above) > Parts Diagrams (12) > Cables And Controls

  • Title
00356900

1

Arm, Interlock

Part# 00356900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.76

05957800

2

Bolt, Hex .38-16 x 3.00 Grade 5

Part# 05957800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06542000

3

Nut, Locking Top Flange .38-16

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06444000

4

Washer, Flat Steel .406 x 1.00 x .188

Part# 06444000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

08335700

5

Spring, Compression

Part# 08335700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

05957700

6

Bolt, Hex .38-16 x 5.00 Grade 5

Part# 05957700

OEM Warranty Repair Part for Gravely

Not available

00396900

7

Lever, Shift

Part# 00396900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.61

07533500

8

Knob, Ball Black

Part# 07533500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $9.34

06437300

9

Washer, Flat Steel .28 x .62 x .065

Part# 06437300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.84

06701900

10

Pin, Hair Internal .06 x .18 x .77

Part# 06701900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06900312

11

Cable, Attachment

Part# 06900312

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

06900011

12

Cable, Traction

Part# 06900011

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

07000021

13

Bolt, Shoulder .375 x .375 x .25-20

Part# 07000021

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

07300012

14

Pulley, Cable

Part# 07300012

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

07412000

15

Screw, Tap .25-20 x .50

Part# 07412000 (Superseded to 07400034)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06543500

16

Nut, Locking Top Flange .25-20

Part# 06543500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

00373051

17

Bracket, Cable Pulley

Part# 00373051

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.24

06944800

18

Clip, Spring

Part# 06944800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05500026

19

Bushing, Polyliner .50 Split

Part# 05500026

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.29

06441900

20

Washer, Flat Steel .531 x 1.06 x .095

Part# 06441900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05500028

21

Bushing, Polyliner .50 Snap-in

Part# 05500028

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.29

00371651

22

Arm, Idler Traction

Part# 00371651

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $18.39

08300022

23

Spring, Tension

Part# 08300022

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

00372851

24

Bracket, Support

Part# 00372851

OEM Warranty Repair Part for Gravely

Not available

08300015

25

Spring, Torsion

Part# 08300015

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

00384200

26

Hub, Brake Arm

Part# 00384200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.81

00372551

27

Arm, Idler Attachment

Part# 00372551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $32.59

08337000

28

Spring, Tension

Part# 08337000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

00384351

29

Arm, Attachment

Part# 00384351

OEM Warranty Repair Part for Gravely

Not available

08300017

30

Spring, Tension

Part# 08300017

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

05500820

31

Bushing,Sleeve

Part# 05500820

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.47

05717600

32

Ring, Retaining External .250 x .010

Part# 05717600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

00325400

33

Wave Washer

Part# 00325400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05800900

34

Pin, Roll .125 x 1.00

Part# 05800900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

07517300

35

Cable Tie

Part# 07517300

OEM Warranty Repair Part for Gravely

Not available
