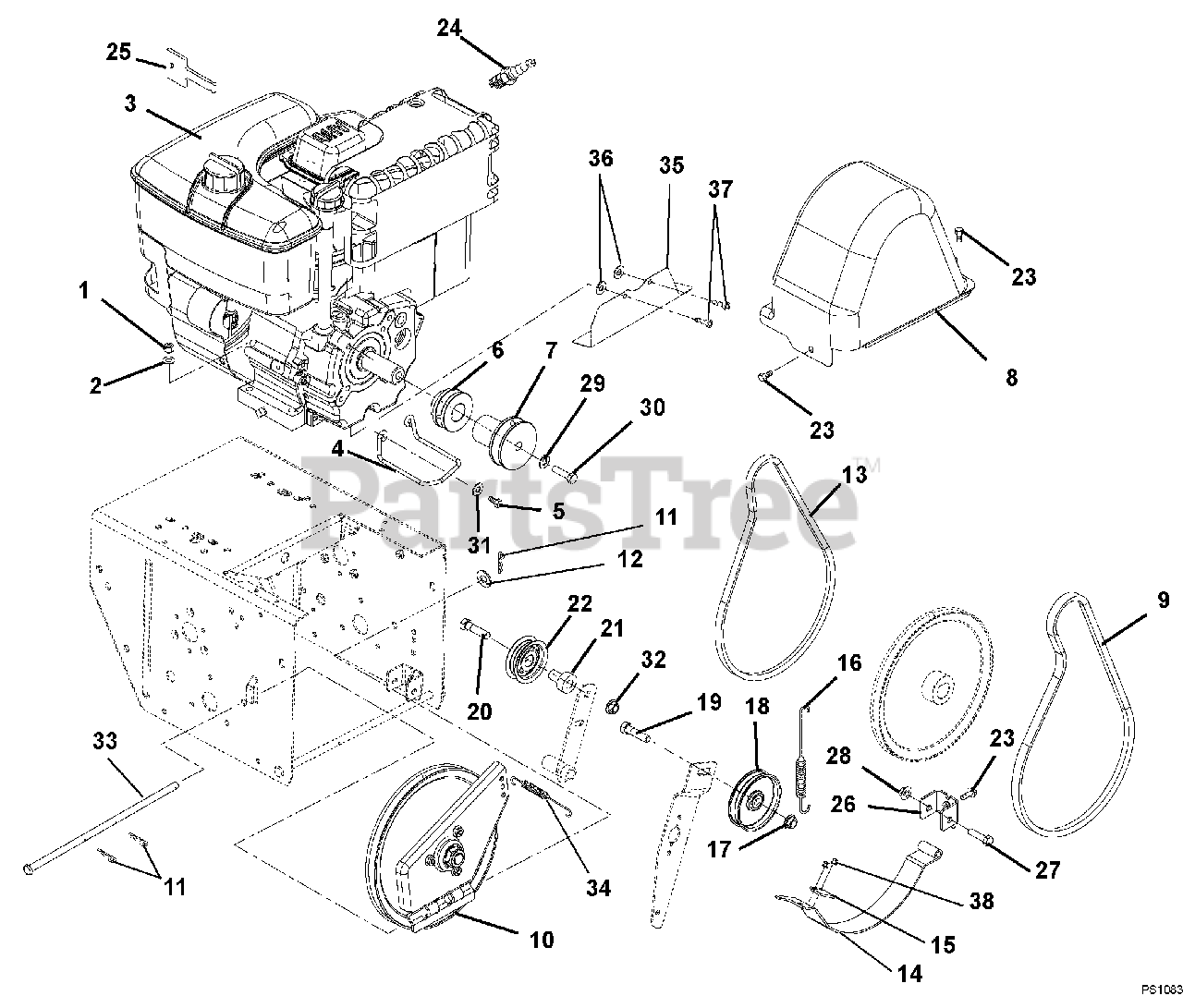

926503 - Gravely 36" Power Brush, Tecumseh (SN: 001001 & Above) Engine And Belt Drive Parts Diagram

36" Power Brush, Tecumseh

Engine And Belt Drive Parts Diagram

  • Title

1

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

2

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

3

Gravely 08200042

ENGINE, 9HP TEC. ALL-SEASON

$

$

Not available

4

Gravely 00461900

FINGER, BELT
(Superseded to 05273200)

$18.99

$

In Stock, only 2 left!

0

5

Gravely 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

6

Gravely 00397100

SHEAVE, DRIVE
(Superseded to 52616500)

$16.99

$

In Stock, only 2 left!

0

7

Gravely 00397000

SHEAVE, ATTACHMENT

$

$

Not available

8

Gravely 00384100

COVER, BELT

$46.99

$

In Stock, only 2 left!

0

9

Gravely 07200020

V-BELT, 4L-RAW EDGE
(Superseded to 07200623)

$38.99

$

In Stock, Qty 8

0

10

Gravely 52602700

PLATE, SWING ASSEMBLY-DEEP

$131.99

$

In Stock, only 2 left!

0

11

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

12

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07200110

V-BELT, 3L-WRAPPED

$23.99

$

In Stock, Qty 5

0

14

Gravely 52601800

ARM, BRAKE ATTACHMENT-W/PAD
(Superseded to 06800140)

$1.49

$

In Stock, Qty 5

0

15

Gravely 00180500

PAD, BRAKE

Note: (included with item 14)

$10.99

$

In Stock, only 1 left!

0

16

Gravely 08300017

SG-TENS .056X.60X4.40

$6.49

$

In Stock, only 4 left!

0

17

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07300013

IDLER, FLAT-3.00

$35.99

$

In Stock, only 2 left!

0

19

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

20

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

21

Gravely 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, only 2 left!

0

22

Gravely 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 3 left!

0

23

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 21533500

PLUG, SPARK

$8.49

$

In Stock, only 2 left!

0

25

Gravely 07532000

KEY, PUSH/PULL - TECUMSEH
(Superseded to 07500108)

$8.49

$

In Stock, Qty 8

0

26

Gravely 00430751

PIVOT, BRAKE
(Superseded to 00430700)

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

28

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05958600

BLT-HEX .38-24X2.0 YWZC
(Superseded to 05902015)

$3.49

$

In Stock, only 2 left!

0

31

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

32

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 00380900

PIN, PIVOT

$42.99

$

In Stock, only 3 left!

0

34

Gravely 08300019

SG-TENS .048X.50X2.8

$6.49

$

In Stock, only 2 left!

0

35

Gravely 03276651

BAFFLE, ENGINE

$29.99

$

Usually ships in 4-12 days

0

36

Gravely 06400828

WSHR-FL-STL .536X1.07X.109 YZ

$2.99

$

Usually ships in 4-12 days

0

37

Gravely 06100203

SCR-MCH.31-24X.75FLCTRSK EP80

$5.49

$

Usually ships in 4-12 days

0

38

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, Qty 5

0
