926503 - Gravely 36" Power Brush, Tecumseh (SN: 001001 & Above)

36" Power Brush, Tecumseh

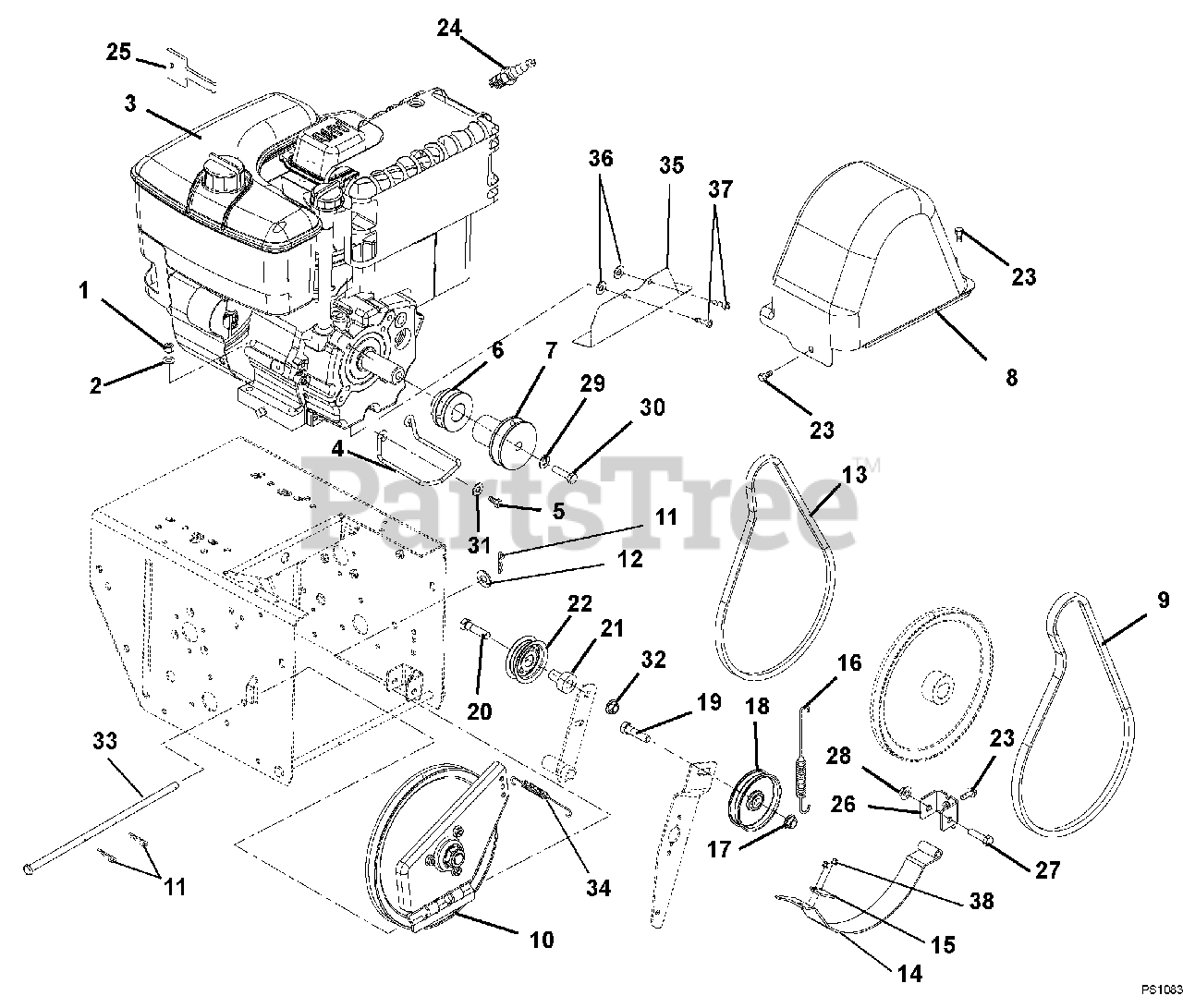

926503 - Gravely 36" Power Brush, Tecumseh (SN: 001001 & Above) > Parts Diagrams (12) > Engine And Belt Drive

  • Title
06529200

1

Nut, Hex .31-18

Part# 06529200

OEM Warranty Repair Part for Gravely

Not available

06307400

2

Washer, Lock .312 x .097

Part# 06307400

OEM Warranty Repair Part for Gravely

Not available

08200042

3

Engine, 9HP Tecumseh OH318EA - 222719E

Part# 08200042

OEM Warranty Repair Part for Gravely

Not available

00461900

4

Belt Finger

Part# 00461900

OEM Warranty Repair Part for Gravely

Not available

05947300

5

Bolt, Hex .31-24 x .75 Grade 5

Part# 05947300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

00397100

6

Sheave, Drive

Part# 00397100

OEM Warranty Repair Part for Gravely

Not available

00397000

7

Sheave, Attachment

Part# 00397000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $60.82

00384100

8

Cover, Belt

Part# 00384100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $23.42

07200020

9

V-Belt 4L

Part# 07200020 (Superseded to 07200623)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $32.81

52602700

10

Plate, Deep Swing Assembly

Part# 52602700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $110.63

06714800

11

Hair Pin

Part# 06714800

OEM Warranty Repair Part for Gravely

Not available

06436200

12

Washer, Flat Steel .406 x .812 x .065

Part# 06436200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07200110

13

V-Belt,Traction Drive 3L

Part# 07200110

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.73

52601800

14

Arm, Brake Attachment

Part# 52601800

OEM Warranty Repair Part for Gravely

Not available

00180500

15

Pad, Brake (included with item 14)

Part# 00180500

Note: (included with item 14)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

08300017

16

Spring, Tension

Part# 08300017

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06542000

17

Nut, Locking Top Flange .38-16

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07300013

18

Idler, Flat 3.00

Part# 07300013

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

05957900

19

Bolt, Hex .38-16 x 1.50 Grade 5

Part# 05957900

OEM Warranty Repair Part for Gravely

Not available

05947500

20

Bolt, Hex .31-18 x 1.25 Grade 5

Part# 05947500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

01213100

21

Spacer, Bearing

Part# 01213100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

02457400

22

Idler

Part# 02457400 (Superseded to 52007000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $42.43

07412000

23

Screw, Tapping .25-20 x .50 Hex Washer Head Thread Rolling

Part# 07412000 (Superseded to 07400034)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

21533500

24

Plug, Spark

Part# 21533500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.99

07532000

25

Key, Push/Pull Tecumseh

Part# 07532000

OEM Warranty Repair Part for Gravely

Not available

00430751

26

Pivot, Brake

Part# 00430751

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

05957200

27

Bolt, Hex .31-18 x 2.00 Grade 5

Part# 05957200

OEM Warranty Repair Part for Gravely

Not available

06543100

28

Nut, Locking-Top-Flange .31-18

Part# 06543100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.62

06308800

29

Washer, Locking .38 x .094

Part# 06308800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05958600

30

Bolt, Hex .38-24 x 2.0

Part# 05958600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06307400

31

Washer, Locking .312 x .097 Heavy

Part# 06307400

OEM Warranty Repair Part for Gravely

Not available

06543100

32

Nut, Locking-Top-Flange .31-18

Part# 06543100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.62

00380900

33

Rod, Pivot

Part# 00380900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $40.19

08300019

34

Spring, Tension

Part# 08300019

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

03276651

35

Baffle, Engine

Part# 03276651

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.48

06400828

36

Washer, Flat Steel .536 x 1.07 x .109

Part# 06400828

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06100203

37

Screw, Machine .31-24 x .75 EP80

Part# 06100203

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.80

06800028

38

Rivet, Pop .187

Part# 06800028

OEM Warranty Repair Part for Gravely

Not available
