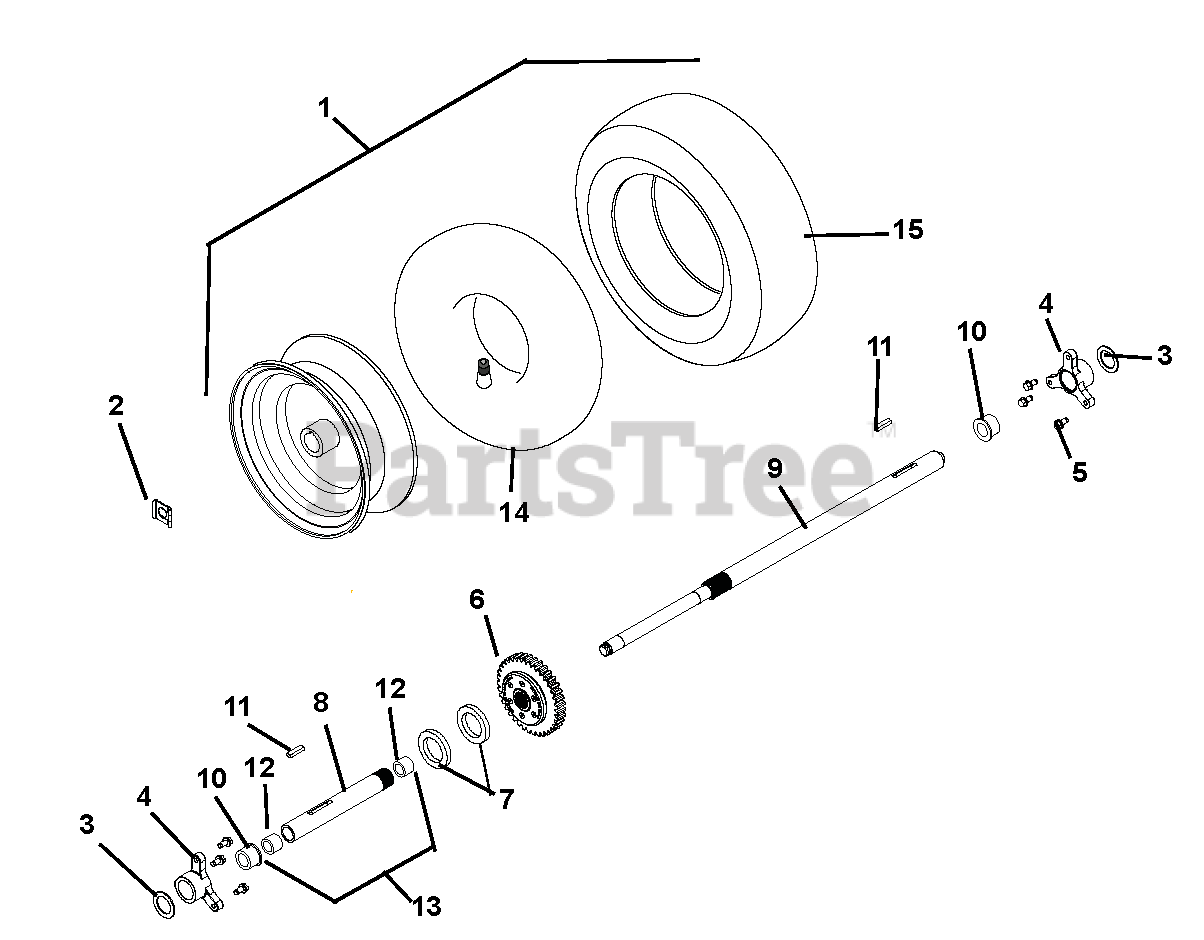

926503 - Gravely 36" Power Brush, Tecumseh (SN: 001001 & Above) Wheels And Axles Parts Diagram

36" Power Brush, Tecumseh

Wheels And Axles Parts Diagram

  • Title

1

Gravely 07100231

TIRE/WHEEL, RH 16X6.50-8 DIFF
(Superseded to 07101139)

Note: (Includes 14-15)

$151.99

$

Usually ships in 4-12 days

0

Gravely 07100232

TIRE/WHEEL, LH 16X6.50-8 DIFF
(Superseded to 07101140)

Note: (Includes 14-15)

$151.99

$

In Stock, only 1 left!

0

2

Gravely 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

3

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, only 4 left!

0

5

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00866000

DIFFERENTIAL, AUTOMATIC
(Superseded to 05013000)

$201.99

$

In Stock, only 2 left!

0

7

Gravely 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 00660800

AXLE, SHORT-PRO AUTO DIFF
(Superseded to 52604100)

$55.99

$

In Stock, only 2 left!

0

9

Gravely 00660900

AXLE, LONG-PRO AUTO DIFF

$98.99

$

In Stock, only 3 left!

0

10

Gravely 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$7.49

$

In Stock, Qty 9

0

11

Gravely 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

13

Gravely 52604100

AXLE, SHORT-AUTO W/BUSHINGS

Note: (Includes 8 and 12)

$55.99

$

In Stock, only 2 left!

0

14

Gravely 07108700

TUBE

$23.99

$

Usually ships in 4-12 days

0

15

Gravely 07100728

TIRE, 16X6.50-8 K478

$86.99

$

Usually ships in 4-12 days

0
