926507 (PRO 36) - Ariens Professional 36" Snow Blower, Briggs & Stratton (SN: 000101 - 000400) Wiring Diagram Parts Diagram

Professional 36" Snow Blower, Briggs & Stratton

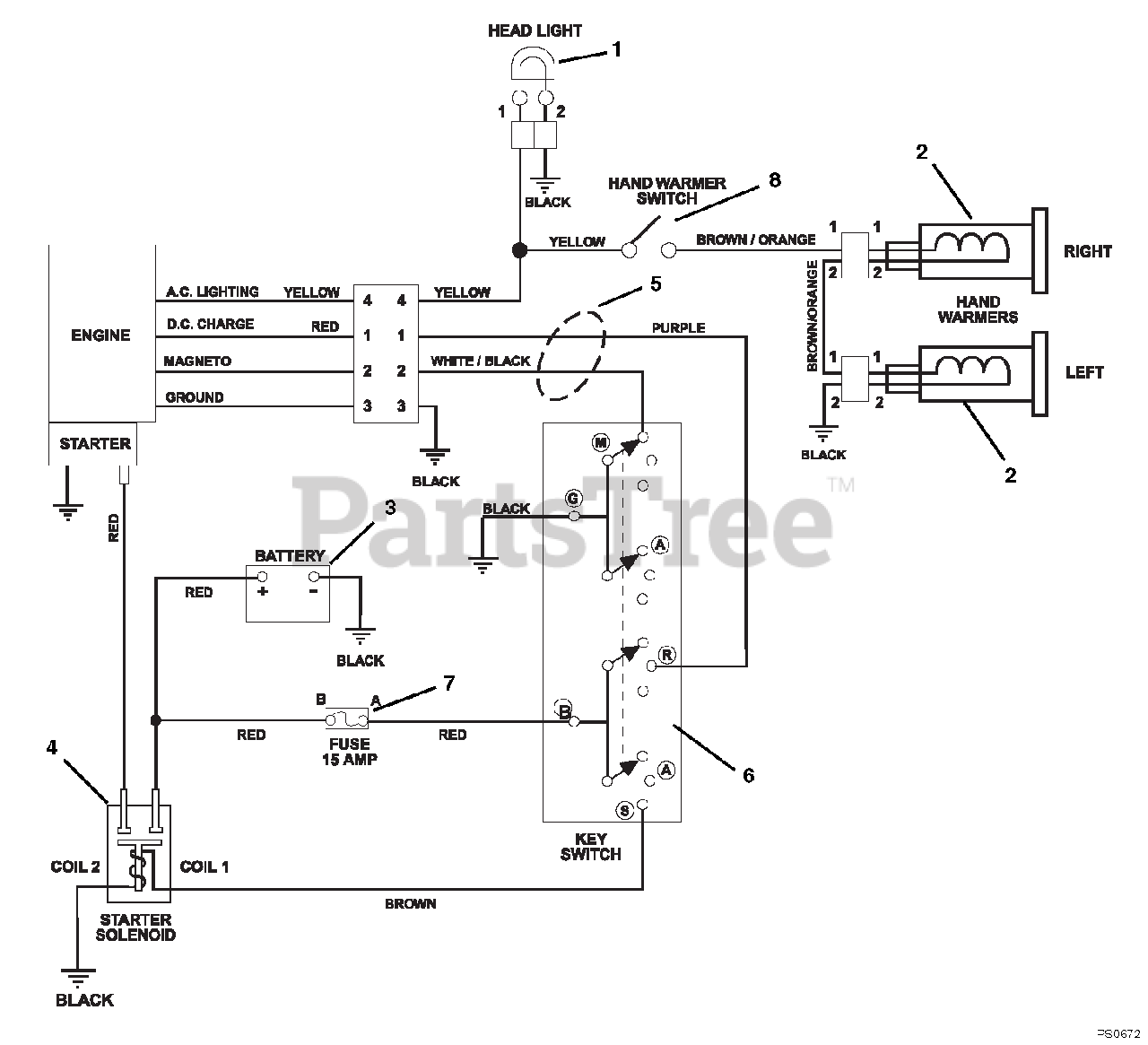

Wiring Diagram Parts Diagram

  • Title
1

Ariens 00432500

LIGHT, HALOGEN ASSY.

$21.99

$

Usually ships in 4-12 days

0

2

Ariens 07500015

HEATED GRIP, MAGURA
(Superseded to 07500514)

Note: (Recommend Loctite E90-FL Epoxy for Installation)

$46.99

$

In Stock, only 1 left!

0

3

Battery Recommend 240 Minimum CCA at 0° F. Size U1R or U1L

$

$

Not available

4

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

5

Ariens 00432401

HARNESS, WIRE-LT, HW, & 12V

$96.99

$

Usually ships in 4-12 days

0

6

Ariens 52709300

SWITCH ASSEMBLY

$56.99

$

In Stock, only 4 left!

0

7

Ariens 00524700

FUSE, 15 AMP.

$

$

Not available

8

Ariens 02485700

SWITCH, ON/OFF

$15.99

$

Usually ships in 4-12 days

0
