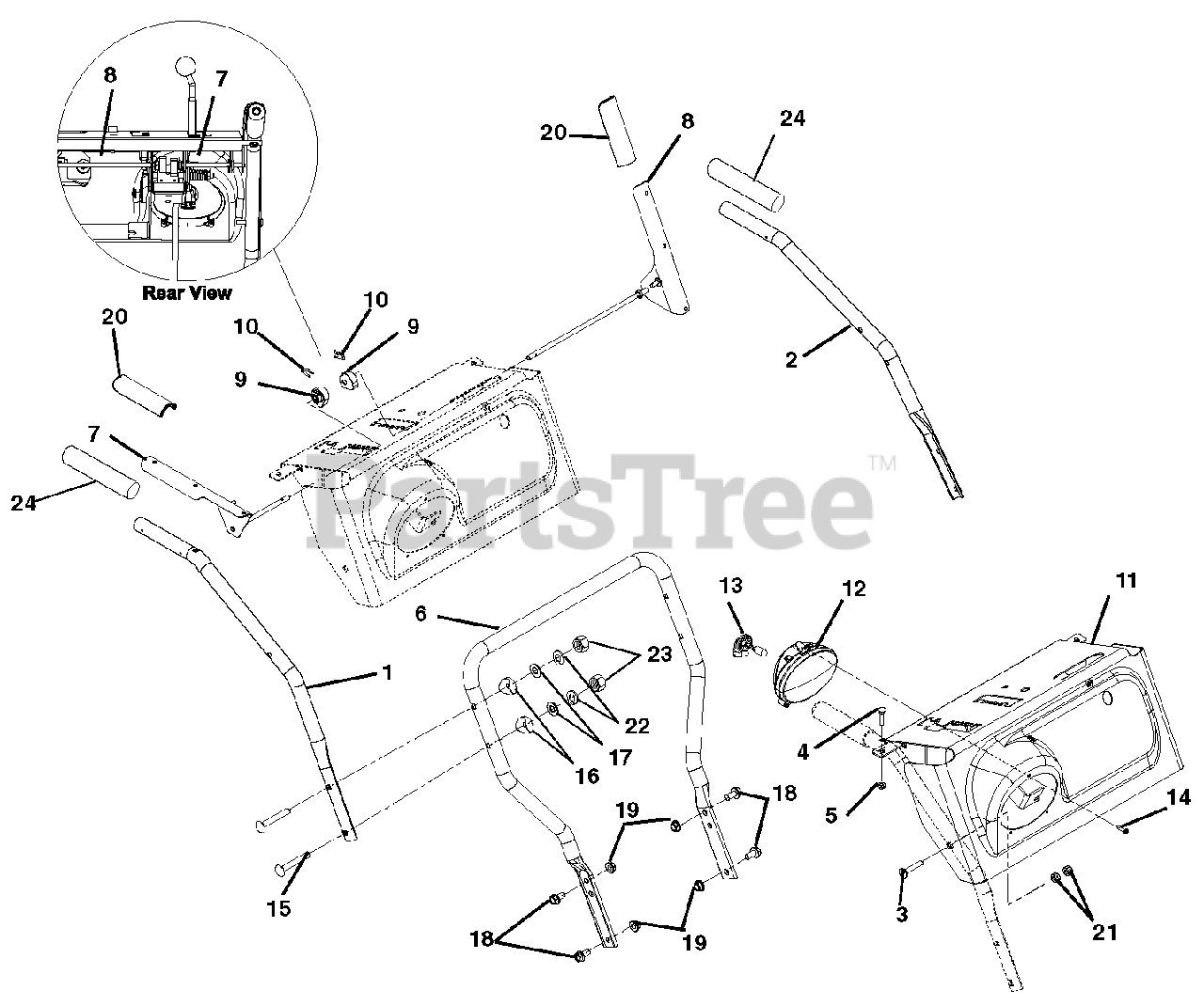

926512 - Gravely 36" Power Brush, Subaru (SN: 000101 & Above) Handlebars, Levers And Dash Panel Parts Diagram

36" Power Brush, Subaru

Handlebars, Levers And Dash Panel Parts Diagram

  • Title

1

Gravely 00428351

Handlebar, Upper Right Hand

$69.99

$

Usually ships in 4-12 days

0

2

Gravely 00428451

Handlebar, Upper Left Hand

$76.99

$

Usually ships in 4-12 days

0

3

Gravely 06220200

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$3.49

$

In Stock, Qty 10

0

4

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25

$2.99

$

In Stock, only 2 left!

0

5

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

6

Gravely 00373251

Handlebar, Lower

$102.99

$

Usually ships in 4-12 days

0

7

Gravely 00393051

Lever, Right Hand-Attachment

$65.99

$

In Stock, only 2 left!

0

8

Gravely 00393151

Lever, Left Hand-Traction

$75.99

$

In Stock, only 2 left!

0

9

Gravely 03888100

Cam, Interlock

$8.49

$

In Stock, only 2 left!

0

10

Gravely 06714500

Pin, Spring Clip

$2.99

$

In Stock, Qty 19

0

11

Gravely 52609300

Panel with Control Decal

$

$

Not available

12

Gravely 03917500

Light, Halogen Assy. (Bulb Included)

Note: (Bulb Included)

$29.99

$

Usually ships in 4-12 days

0

13

Gravely 03917501

Bulb, Light Halogen
(Superseded to 04676800)

$13.99

$

Usually ships in 4-12 days

0

14

Gravely 07416700

Screw, Tapping 10-16 x .75 Hi-Lo

$0.99

$

Usually ships in 4-12 days

0

15

Gravely 06221600

Bolt, Round Head Square Neck .31-18 x 2.25
(Superseded to 06200408)

$3.49

$

In Stock, only 2 left!

0

16

Gravely 07500005

Spacer, Handlebar

$1.49

$

In Stock, Qty 5

0

17

Gravely 06435700

Washer, Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 07028500

Bolt, Screw Hex Flanged Whiz Lock Head .38-16 x .75
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

19

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 00384500

Grip, Clutch Lever

$2.49

$

In Stock, Qty 7

0

21

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06530200

Nut, Locking-Nylon .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07518700

Handle Grip
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0
