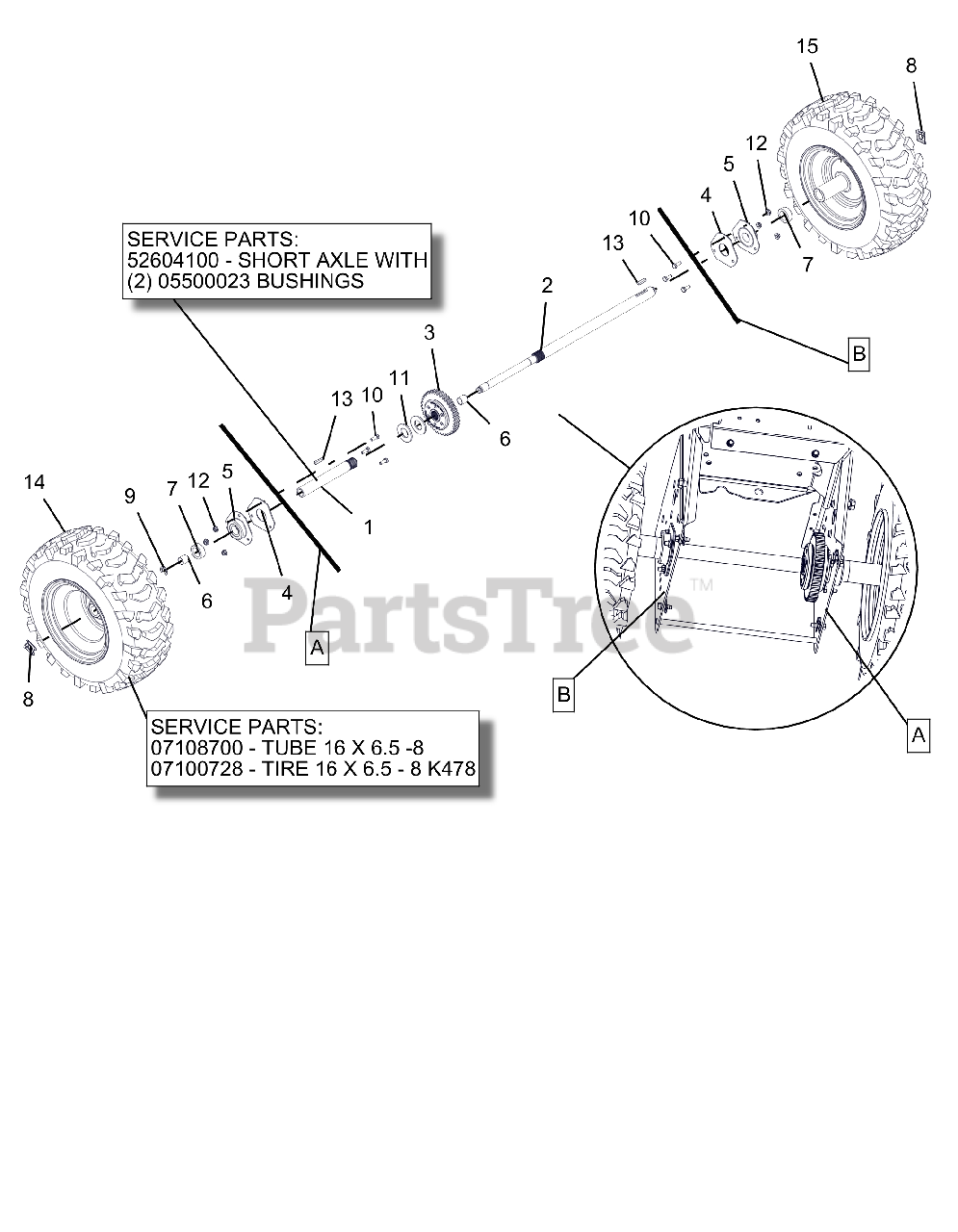

926515 (PB 36) - Ariens Hydro 36" Power Brush, Subaru (SN: 000101 & Above) Wheels And Axle Parts Diagram

Hydro 36" Power Brush, Subaru

Wheels And Axle Parts Diagram

  • Title

1

Ariens 00660800

AXLE, SHORT-PRO AUTO DIFF
(Superseded to 52604100)

$52.99

$

In Stock, Qty 9

0

1

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

Note: SERVICE PART

$3.99

$

In Stock, Qty 19

0

1

Ariens 52604100

AXLE, SHORT-AUTO W/BUSHINGS

Note: SERVICE PART

$52.99

$

In Stock, Qty 9

0

2

Ariens 00660900

AXLE, LONG-PRO AUTO DIFF

$96.99

$

Usually ships in 4-12 days

0

3

Ariens 00866000

DIFFERENTIAL, AUTOMATIC
(Superseded to 05013000)

$193.99

$

In Stock, only 3 left!

0

4

Ariens 04796351

PLATE, BEARING SPACER

Note: (BLACK)

$13.99

$

Usually ships in 4-12 days

0

5

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$43.99

$

In Stock, only 2 left!

0

6

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 19

0

7

Ariens 05501014

SPACER, PRO AXLE BEARING

$7.49

$

In Stock, Qty 12

0

8

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, only 3 left!

0

8

Ariens 07108700

TUBE

Note: SERVICE PART

$34.99

$

Usually ships in 4-12 days

0

8

Ariens 07100728

TIRE, 16X6.50-8 K478

Note: SERVICE PART

$79.99

$

Usually ships in 4-12 days

0

9

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, only 4 left!

0

10

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

11

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

12

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 11

0

13

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

14

Ariens 07100231

TIRE/WHEEL, RH 16X6.50-8 DIFF
(Superseded to 07101139)

$148.99

$

Usually ships in 4-12 days

0

15

Ariens 07100232

TIRE/WHEEL, LH 16X6.50-8 DIFF
(Superseded to 07101140)

$148.99

$

In Stock, only 2 left!

0
