926515 (PB 36) - Ariens Hydro 36" Power Brush, Subaru (SN: 000101 & Above)

Hydro 36" Power Brush, Subaru

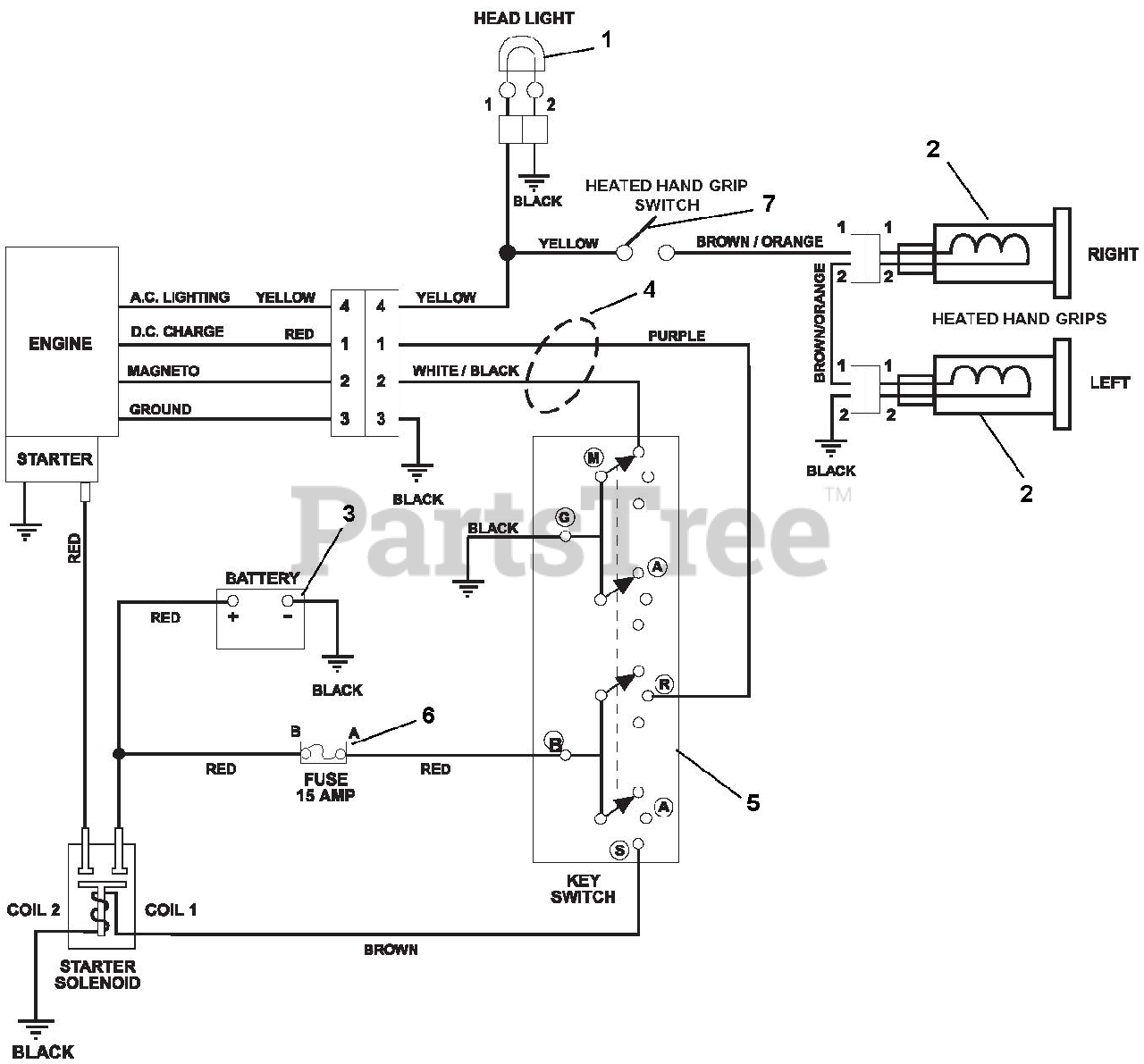

926515 (PB 36) - Ariens Hydro 36" Power Brush, Subaru (SN: 000101 & Above) > Parts Diagrams (16) > Wiring Diagram

  • Title
04812400

1

HEADLIGHT ASY, HOLO 15W 2 SHOT

Part# 04812400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $41.03

07500015

2

HEATED GRIP, MAGURA

Part# 07500015 (Superseded to 07500337)

Note: (Recommend Loctite E90-FL Epoxy for Installation)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.16

3

Battery

Part#

Note: (Recommend 300 Minimum CCA at 0° F. Size 10U1L)

Not available

04715800

4

HARNESS,BRUSH-LT,HW,12V

Part# 04715800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $94.14

52709300

5

SWITCH ASSEMBLY

Part# 52709300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $67.02

00524700

6

FUSE, 15 AMP.

Part# 00524700

OEM Warranty Repair Part for Ariens

Not available

02485700

7

SWITCH, ON/OFF

Part# 02485700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07
