926517 (PRO 32) - Ariens Hydro Professional 32" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Auger And Impeller - 32" Parts Diagram

Hydro Professional 32" Snow Blower, Briggs & Stratton

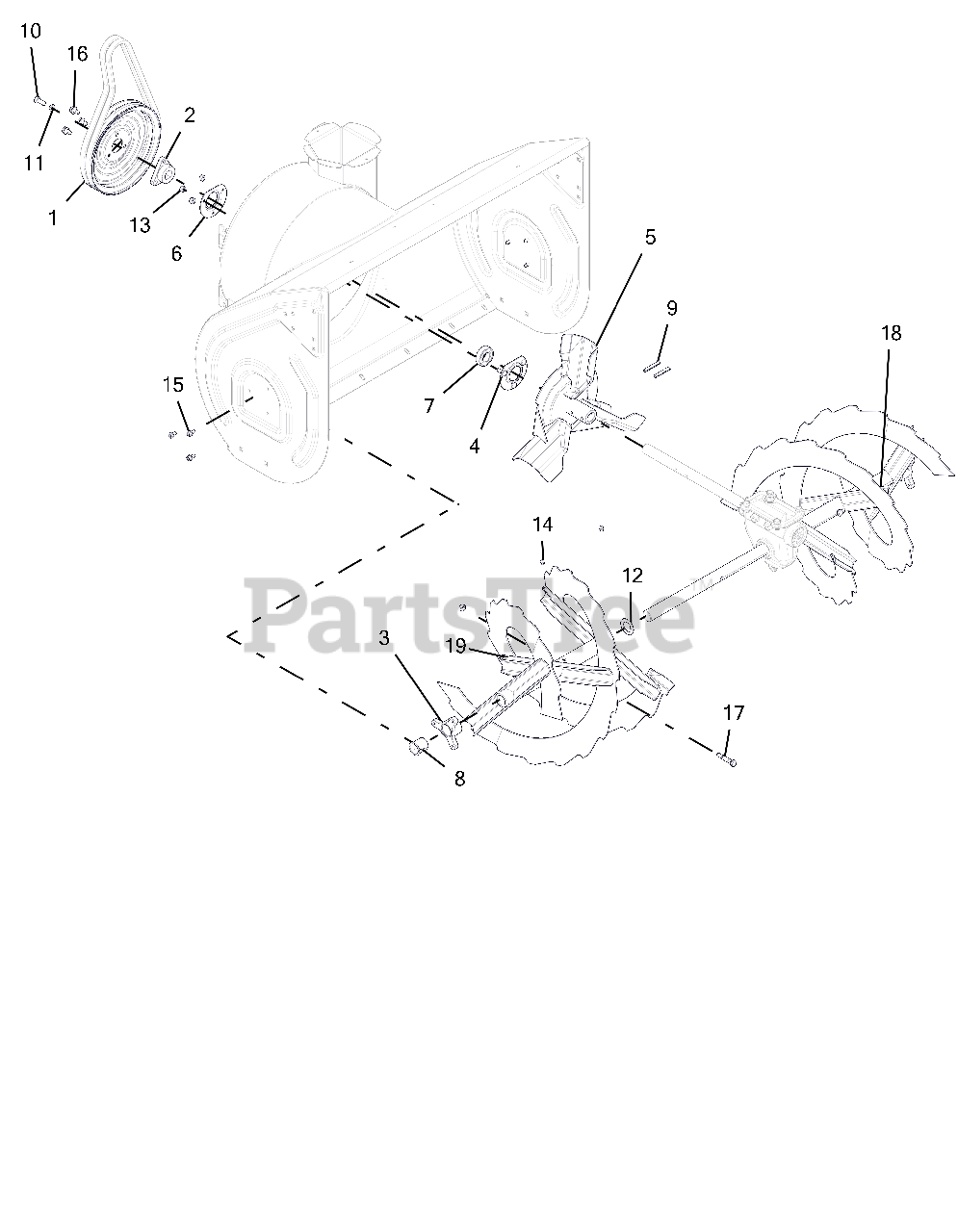

Auger And Impeller - 32" Parts Diagram

  • Title

1

Ariens 00268751

PULLEY, SPIN FORM DUAL GROOVE

$45.99

$

In Stock, only 3 left!

0

2

Ariens 00268703

PULLEY HUB, D-BORE .87 PRO

$10.99

$

In Stock, only 2 left!

0

3

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$12.99

$

In Stock, Qty 17

0

4

Ariens 00428700

BEARING FLANGE

$21.99

$

In Stock, only 2 left!

0

5

Ariens 00485551

IMPELLER, 3 BLADE-14"

$113.99

$

In Stock, only 2 left!

0

6

Ariens 01014200

BEARING FLANGE

$6.99

$

In Stock, Qty 8

0

7

Ariens 05400713

BRG-BALL .876X1.75X.50 RSTFP

Note: (RSTFP)

$45.99

$

In Stock, only 2 left!

0

8

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$7.99

$

In Stock, Qty 20+

0

9

Ariens 05803700

PIN-ROLL .250X1.75

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$2.99

$

In Stock, Qty 20+

0

13

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$5.99

$

In Stock, Qty 20+

0

15

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$2.49

$

In Stock, Qty 20+

0

17

Ariens 52100100

SHEAR BOLT SERVICE ASSEMBLY

Note: (3 PACK)

$4.99

$

In Stock, Qty 20+

0

18

Ariens 52606600

RAKE, LH-32"(1 ID X 15.75 OD)

$186.99

$

Usually ships in 4-12 days

0

19

Ariens 52606700

RAKE, RH-32"(1 ID X 15.75 OD)

$212.99

$

Usually ships in 4-12 days

0
