926517 (PRO 32) - Ariens Hydro Professional 32" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Wheels And Axles Parts Diagram

Hydro Professional 32" Snow Blower, Briggs & Stratton

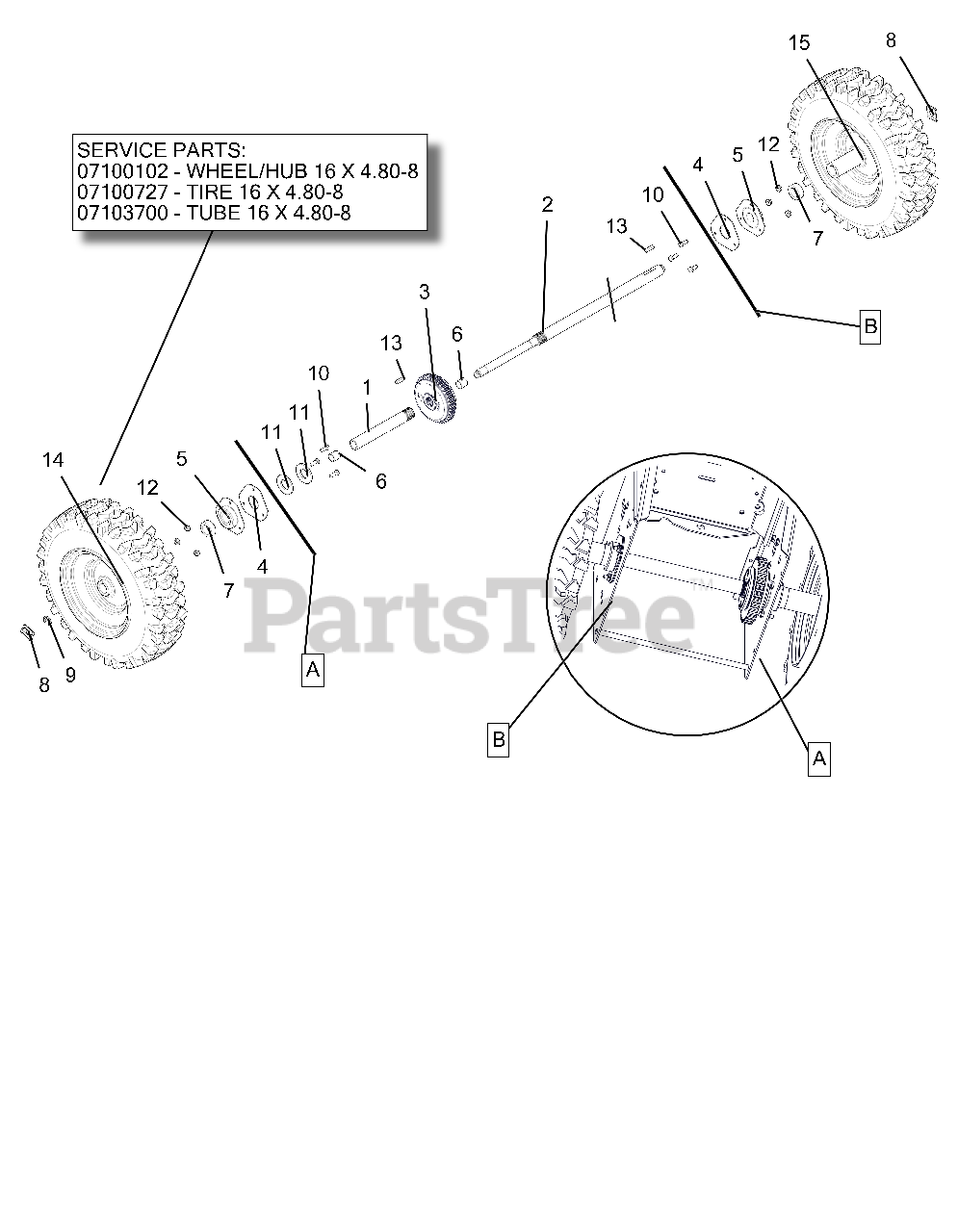

Wheels And Axles Parts Diagram

  • Title

1

Ariens 00660800

AXLE, SHORT-PRO AUTO DIFF
(Superseded to 52604100)

$55.99

$

In Stock, only 2 left!

0

2

Ariens 00660900

AXLE, LONG-PRO AUTO DIFF

$98.99

$

In Stock, only 2 left!

0

3

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$161.99

$

In Stock, only 2 left!

0

4

Ariens 04796351

PLATE, BEARING SPACER

Note: (BLACK)

$14.99

$

Usually ships in 4-12 days

0

5

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$44.99

$

In Stock, Qty 7

0

6

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

7

Ariens 05501014

SPACER, PRO AXLE BEARING

$7.99

$

In Stock, only 4 left!

0

8

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

9

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 15

0

10

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

11

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$4.99

$

In Stock, Qty 20+

0

12

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

13

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 11

0

14

Ariens 07100229

TIRE/WHEEL,RH 16X4.8-8 DIFF T2
(Superseded to 07101201)

$125.99

$

In Stock, only 1 left!

0

14

Ariens 07100102

HUB, WHEEL - 16X4.8-8 DIFF

Note: SERVICE PART

$65.99

$

Usually ships in 4-12 days

0

14

Ariens 07100727

TIRE, 4.80-8 K478

Note: SERVICE PART

$75.99

$

Usually ships in 4-12 days

0

14

Ariens 07103700

TUBE

Note: SERVICE PART

$15.99

$

In Stock, only 2 left!

0

15

Ariens 07100230

TIRE/WHEEL,LH 16X4.8-8 DIFF T2
(Superseded to 07101202)

$125.99

$

Usually ships in 4-12 days

0
