926518 (PB 36) - Ariens Hydro 36" Power Brush, Subaru (SN: 000101 - 000999) Electrical Parts Diagram

Hydro 36" Power Brush, Subaru

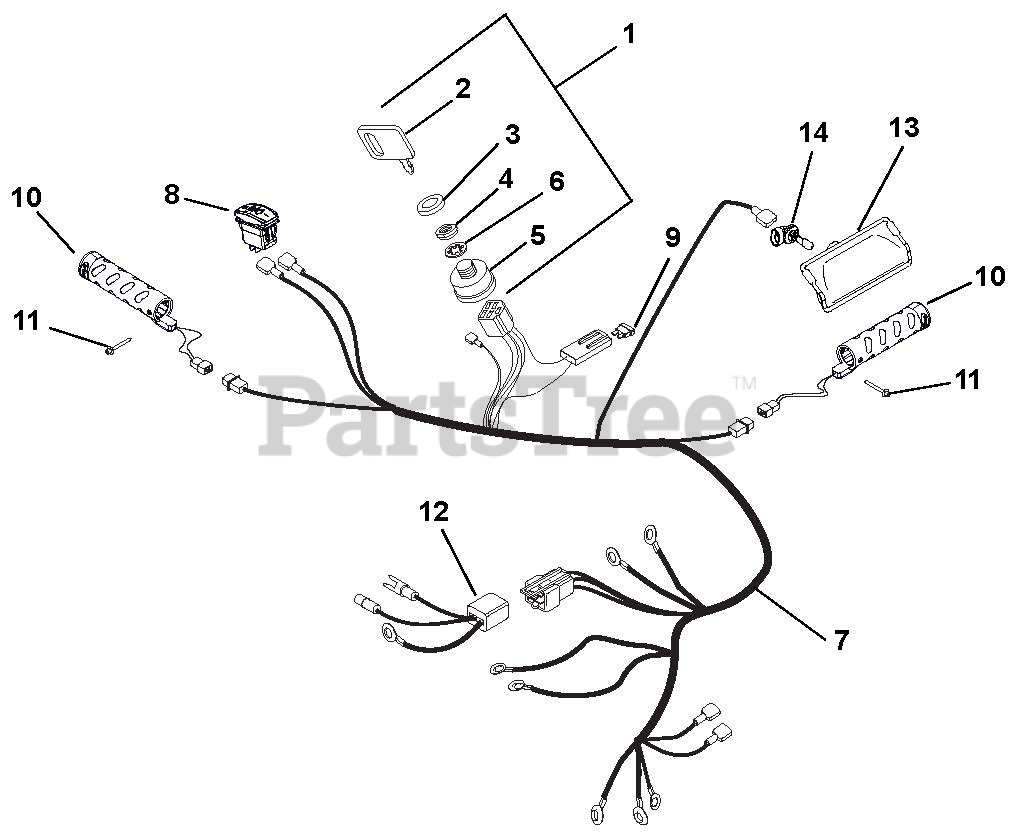

Electrical Parts Diagram

  • Title

1

Ariens 52709300

SWITCH ASSEMBLY

$56.99

$

In Stock, only 3 left!

0

2

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 15

0

3

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 9

0

4

Ariens 06517300

NUT-PANEL .625-32 GRECO

$7.99

$

In Stock, only 1 left!

0

5

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, only 3 left!

0

6

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

$3.99

$

In Stock, only 1 left!

0

7

Ariens 04715800

HARNESS,BRUSH-LT,HW,12V

$95.99

$

Usually ships in 4-12 days

0

8

Ariens 04836700

SWITCH,ROCKER SPST-ON/OFF
(Superseded to 09395000)

$19.99

$

In Stock, only 1 left!

0

9

Ariens 00524700

FUSE, 15 AMP.

$

$

Not available

10

Ariens 07500337

GRIP,HEATED HANDLE-GRAY
(Superseded to 07500514)

$46.99

$

In Stock, only 1 left!

0

11

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$1.49

$

Usually ships in 4-12 days

0

12

Ariens 03972400

HARNESS ADAPTER, SUBARU

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 04812400

HEADLIGHT ASY, HOLO 15W 2 SHOT

$42.99

$

Usually ships in 4-12 days

0

14

Ariens 04676800

BULB, LIGHT-HALOGEN 15 WATT

$11.99

$

Usually ships in 4-12 days

0
