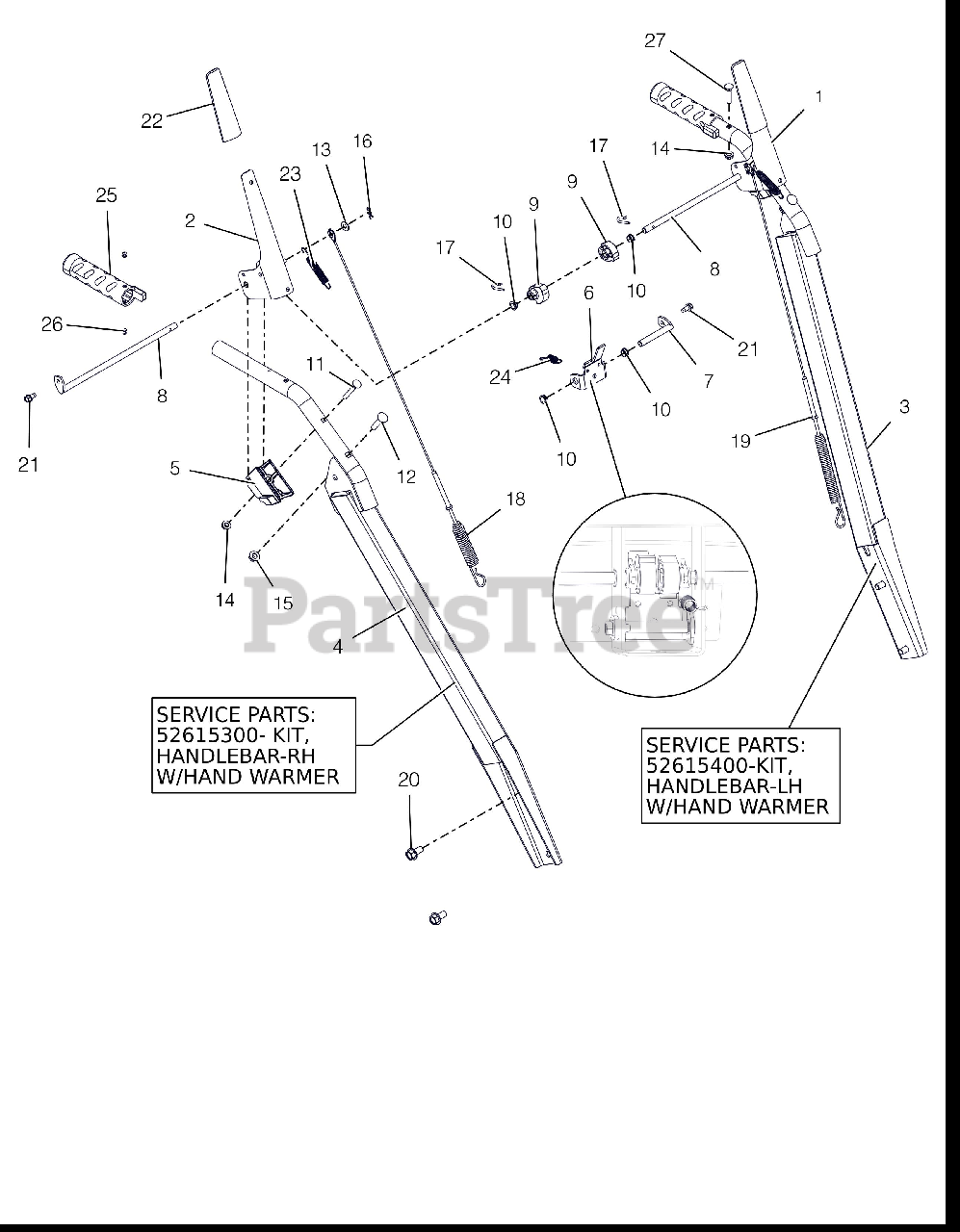

926518 (PB 36) - Ariens Hydro 36" Power Brush, Subaru (SN: 002000 & Above) Handlebars Parts Diagram

Hydro 36" Power Brush, Subaru

Handlebars Parts Diagram

  • Title

1

Ariens 04310451

LEVER, CLUTCH-LH

$28.99

$

Usually ships in 4-12 days

0

2

Ariens 04310551

LEVER, CLUTCH-RH

$22.99

$

Usually ships in 4-12 days

0

3

Ariens 04878651

HANDLEBAR, HEAVYDUTY-PRO LH

$90.99

$

Usually ships in 4-12 days

0

3

Ariens 52615400

KIT, HANDLEBAR-LH W/WARM GRIP

Note: SERVICE PART

$119.99

$

Usually ships in 4-12 days

0

4

Ariens 04878751

HANDLEBAR, HEAVYDUTY-PRO-RH

$85.99

$

Usually ships in 4-12 days

0

4

Ariens 52615300

KIT, HANDLEBAR-RH W/WARM GRIP

Note: SERVICE PART

$119.99

$

Usually ships in 4-12 days

0

5

Ariens 05073000

BLOCK, CLUTCH PADDLE
(Superseded to 05193600)

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 04320400

BRACKET, INTERLOCK ARM

$20.99

$

Usually ships in 4-12 days

0

7

Ariens 04320500

ROD, PIVOT - INTERLOCK

$19.99

$

In Stock, only 1 left!

0

8

Ariens 04320600

ROD, PADDLE MOUNT - PRO

$19.99

$

Usually ships in 4-12 days

0

9

Ariens 04322100

CAM, INTERLOCK

$3.99

$

In Stock, Qty 12

0

10

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, only 2 left!

0

11

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 10

0

13

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

14

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 11

0

15

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

17

Ariens 06714500

PIN, SPRING CLIP

$1.99

$

In Stock, Qty 20+

0

18

Ariens 06900439

CABLE, AUGER (DELUXE & PRO)

$28.99

$

In Stock, only 2 left!

0

19

Ariens 06900502

CABLE, UPPER TRACTION

$31.99

$

In Stock, only 1 left!

0

20

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, only 1 left!

0

21

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07500331

SLEEVE, CLUTCH PADDLE-GRAY

$3.99

$

In Stock, only 1 left!

0

23

Ariens 08300527

SPRING, EXTENSION

$3.49

$

In Stock, only 2 left!

0

24

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, only 2 left!

0

25

Ariens 07500337

GRIP,HEATED HANDLE-GRAY
(Superseded to 07500514)

$46.99

$

In Stock, only 1 left!

0

26

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$1.49

$

Usually ships in 4-12 days

0

27

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 2 left!

0
