926518 (PB 36) - Ariens Hydro 36" Power Brush, Subaru (SN: 002000 & Above) Wheels And Axles Parts Diagram

Hydro 36" Power Brush, Subaru

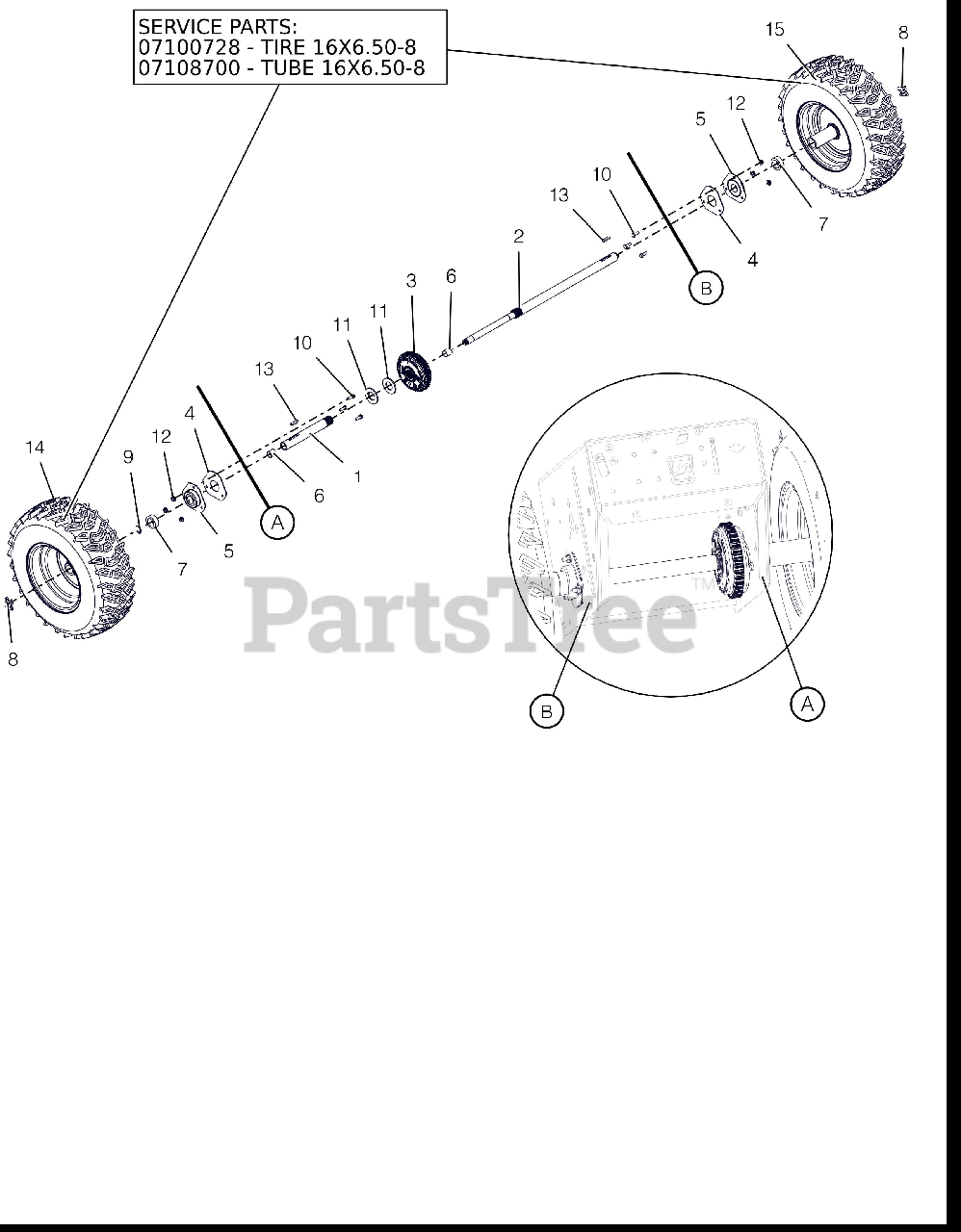

Wheels And Axles Parts Diagram

  • Title
1

Ariens 52604100

AXLE, SHORT-AUTO W/BUSHINGS

$51.60

$

In Stock, Qty 9

0

2

Ariens 00660900

AXLE, LONG-PRO AUTO DIFF

$83.79

$

In Stock, only 1 left!

0

3

Ariens 05013000

DIFFERENTIAL, AUTOMATIC

$181.39

$

Usually ships in 4-12 days

0

4

Ariens 04796351

PLATE, BEARING SPACER

$13.47

$

Usually ships in 4-12 days

0

5

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$35.72

$

In Stock, Qty 20+

0

6

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.63

$

In Stock, Qty 5

0

7

Ariens 05501014

SPACER, PRO AXLE BEARING

$6.65

$

In Stock, Qty 18

0

8

Ariens 05700001

CLIP, SNAP .625 DIA

$8.89

$

In Stock, Qty 20+

0

9

Ariens 05708300

RG-RTNG-EXT .625X.042

$1.96

$

In Stock, Qty 9

0

10

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.79

$

In Stock, Qty 13

0

11

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.63

$

In Stock, Qty 12

0

12

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$1.96

$

In Stock, Qty 8

0

13

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.96

$

In Stock, Qty 20+

0

14

Ariens 07101139

TIRE/WHEEL,RH 16X6.5-8 DIFF T2

$111.74

$

Usually ships in 4-12 days

0

14

Ariens 07100728

TIRE, 16X6.50-8 K478

Note: SERVICE PART (ALSO USED WITH ITEM 15)

$67.02

$

Usually ships in 4-12 days

0

14

Ariens 07108700

TUBE

Note: SERVICE PART (ALSO USED WITH ITEM 15)

$13.36

$

Usually ships in 4-12 days

0

15

Ariens 07101140

TIRE/WHEEL,LH 16X6.5-8 DIFF T2

$111.74

$

In Stock, only 2 left!

0
