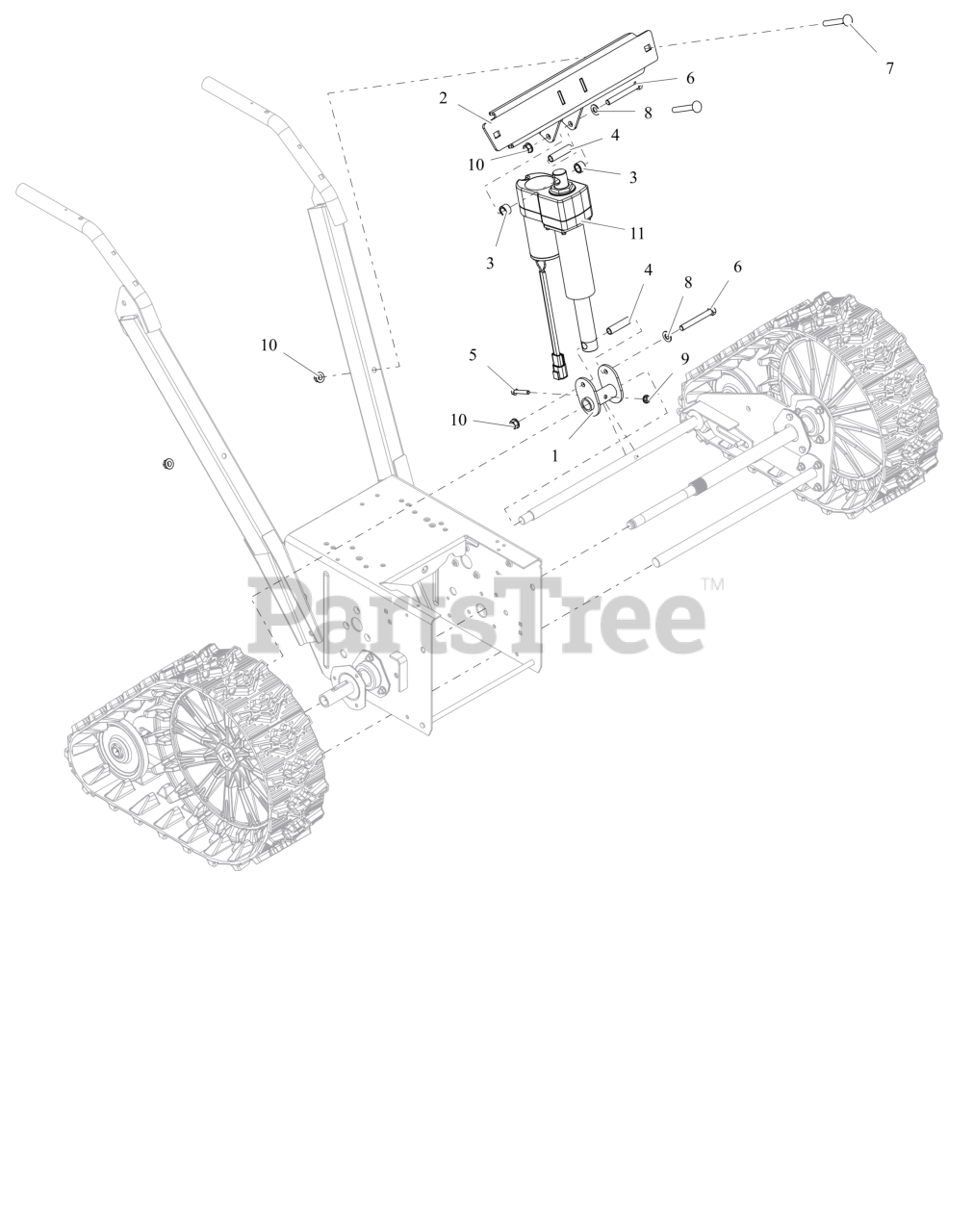

926520 (PRO 32) - Ariens Hydro Pro Kraken 32" Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Tracks - Linear Actuator Parts Diagram
Hydro Pro Kraken 32" Snow Blower, Ariens AX 420cc EFI
Tracks - Linear Actuator Parts Diagram
Ariens 09459800
WLDMT, REAR TRACK AXLE BRKT
$58.99
$
Usually ships in 4-12 days
Ariens 09459951
WLDMT- LINEAR UPPER BRKT
$102.99
$
Usually ships in 4-12 days
Ariens 05500107
BSHG-SLV .510X.751X.475
$1.49
$
In Stock, Qty 6
Ariens 05533500
SPCR, WHEEL .385X.500X2.00
$9.99
$
In Stock, Qty 7
Ariens 05901739
BLT, HEX .25-20X1.50 G5 ZCC
$1.99
$
In Stock, only 2 left!
Ariens 05901814
BLT, HEX .38-16X3.00 G5 ZCC
$2.99
$
In Stock, Qty 14
Ariens 06200316
BLT, RHSN .38-16X2.75 G5 ZCC
$4.99
$
In Stock, Qty 11
Ariens 06401010
WSHR, FLT .406X.812X.065 RAW
$1.49
$
Usually ships in 0 days
Ariens 06500821
NUT-LK-CTR-FLG .25-20 ZC120
$0.99
$
In Stock, Qty 8
Ariens 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 09460000
ACTUATOR, LINEAR
$725.99
$
Usually ships in 4-12 days
