926521 (PRO 32) - Ariens Hydro Pro Mountaineering 32" Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Housing - 32" Parts Diagram

Hydro Pro Mountaineering 32" Snow Blower, Ariens AX 420cc EFI

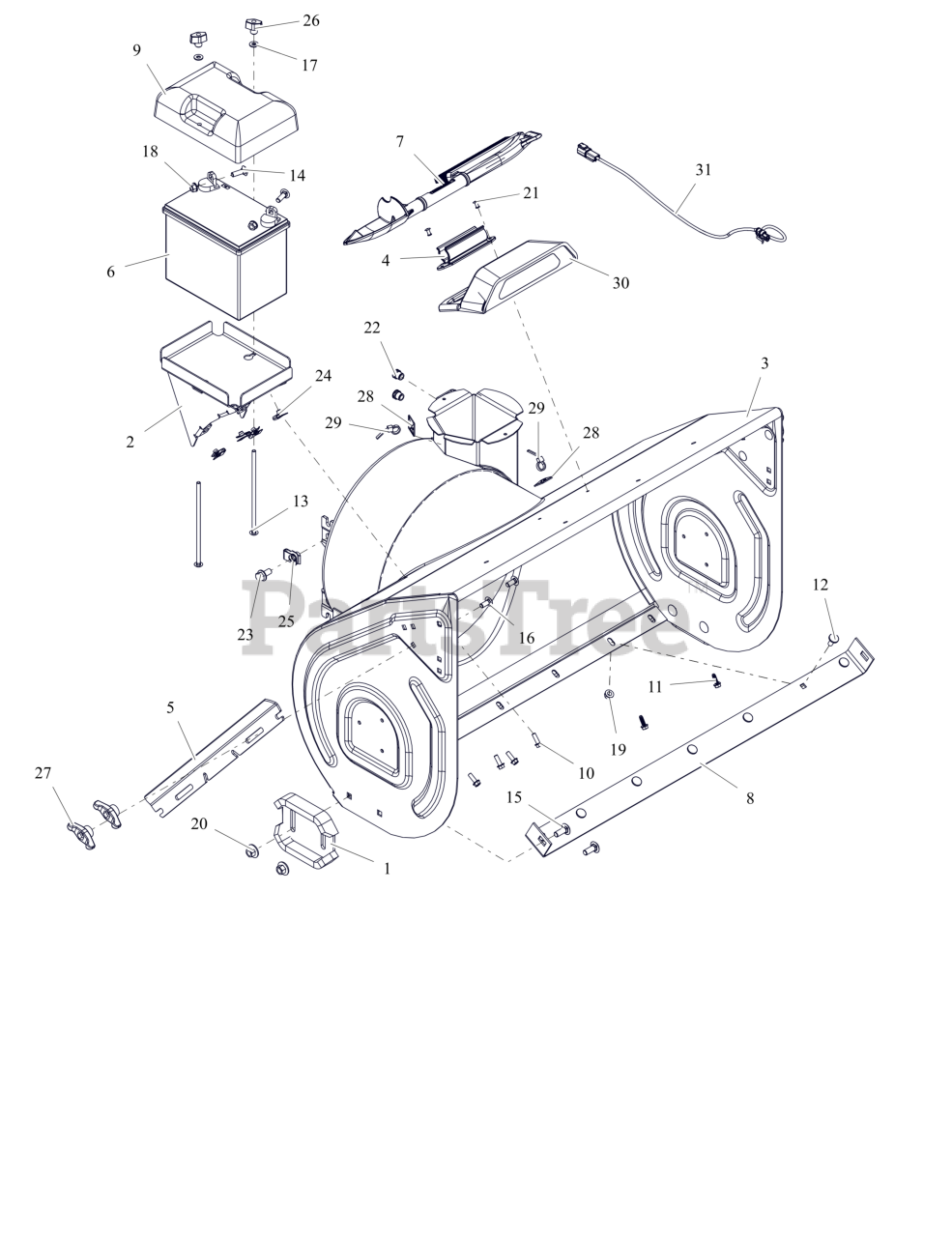

Housing - 32" Parts Diagram

  • Title

1

Ariens 04148959

RUNNER, SKID SHOE

$60.99

$

In Stock, Qty 14

0

2

Ariens 04721059

TRAY, BATTERY

$

$

Currently unavailable

3

Ariens 52617600

HOUSING, BLOWER 32" W/DECAL

$484.99

$

Usually ships in 4-12 days

0

4

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

5

Ariens 00262159

CUTTER, DRIFT

$23.99

$

Usually ships in 4-12 days

0

6

Not Available thru Ariens

$

$

Not available

7

Ariens 03901400

DEVICE, SNOW CLEAN OUT W/BRUSH

$35.99

$

In Stock, only 2 left!

0

8

Ariens 04182059

BLADE, SCRAPER-32"

$55.99

$

In Stock, only 2 left!

0

9

Ariens 04912900

COVER, BATTERY

$11.99

$

In Stock, only 2 left!

0

10

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.99

$

In Stock, Qty 8

0

11

Ariens 06100231

SCR, PLASTITE .25-10X.75 ZCC

$1.99

$

In Stock, Qty 8

0

12

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06200229

BLT,RHSN .25-20X7.00 G2 ZCC

$5.49

$

In Stock, only 2 left!

0

14

Ariens 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 16

0

16

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

17

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, only 3 left!

0

18

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 14

0

19

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06501007

NUT- CON-LN .375-16 ZC120

$1.99

$

In Stock, only 2 left!

0

21

Ariens 06800107

RIVET, #66 STEEL POP PD BLACK

$1.49

$

Usually ships in 4-12 days

0

22

Ariens 07001805

NUT,THD,INSERT .38-16 ZC120

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 07001824

BLT

$1.99

$

In Stock, Qty 6

0

24

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

25

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 1 left!

0

26

Ariens 07500104

KNOB, WING - .25-20 UNC

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 8

0

28

Ariens 07500421

MOUNT, CABLE-TIE DOWN

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

30

Ariens 09383000

HOUSING, LIGHT - LED

$62.99

$

In Stock, only 2 left!

0

31

Ariens 09393000

HARNESS- WIRE - LIGHT JUMPER

$35.99

$

Usually ships in 4-12 days

0
