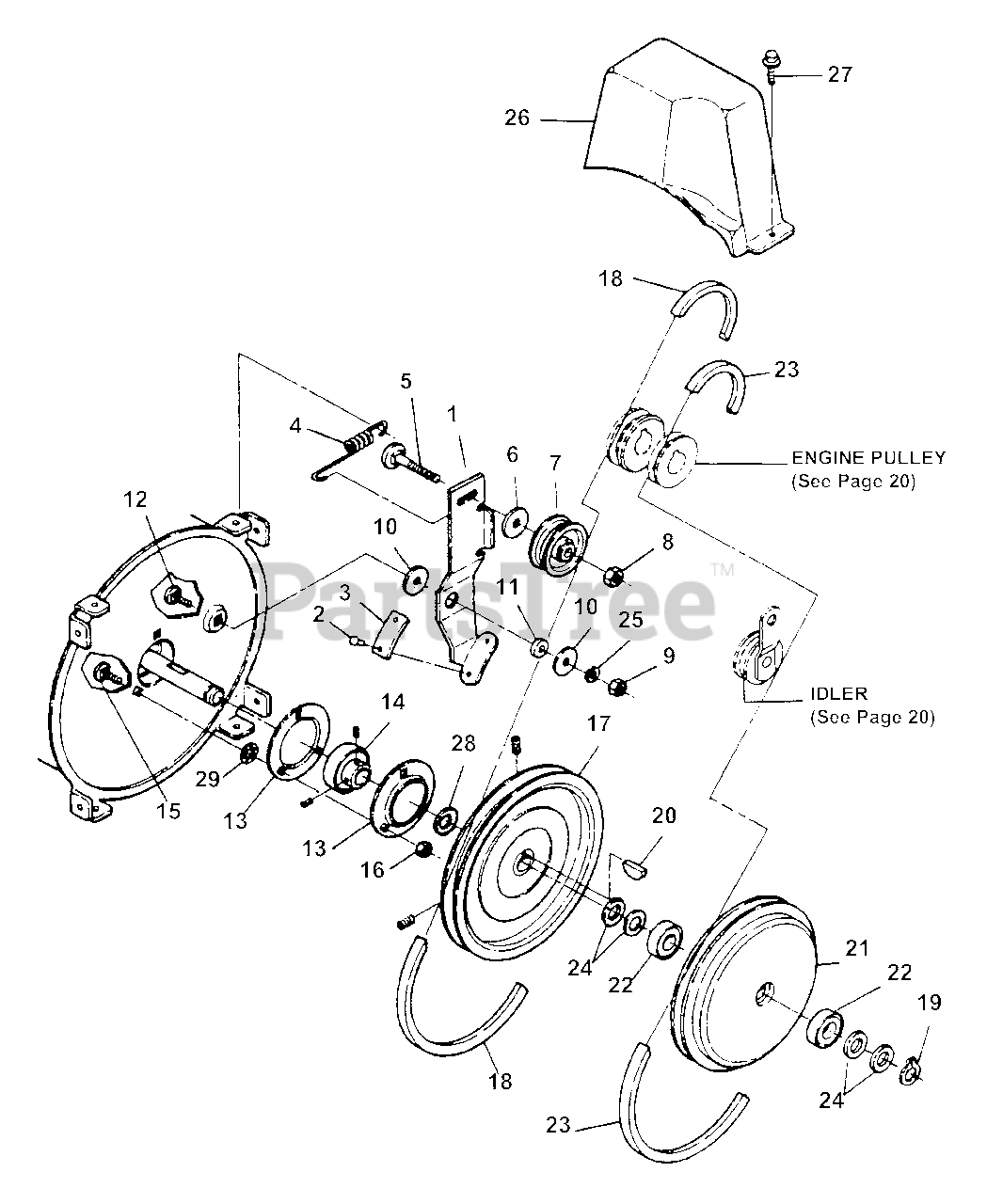

9266E (84714) - Snapper 26" Snow Thrower, 9hp Belts, Idler, Drive Plate, Sheave Parts Diagram

26" Snow Thrower, 9hp

Belts, Idler, Drive Plate, Sheave Parts Diagram

  • Title

1

Snapper 7053580

ASSEMBLY, Idler Arm

Note: (Includes Items 2 & 3)

$

$

Not available

2

Snapper 7013860

RIVET
(Superseded to 704032)

Note: Was 91559

$4.49

$

In Stock, Qty 10

0

3

Snapper 7013859

PAD, Brake
(Superseded to 7013859YP)

$6.99

$

In Stock, Qty 9

0

4

Snapper 7013919

SPRING
(Superseded to 7013919YP)

$8.99

$

In Stock, only 2 left!

0

5

Snapper 7090791

BOLT, 3/8-16 x 1-1/2" Square Neck Carriage, Grade 2
(Superseded to 7091945YP)

$4.49

$

In Stock, Qty 10

0

6

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7013850

PULLEY, Idler
(Superseded to 7013850YP)

$20.99

$

In Stock, only 2 left!

0

8

Snapper 7090499

NUT, 3/8-16 Hex Top Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7091511

NUT, 5/16-18 Hex, Grade B or 5
(Superseded to 7091511SM)

Note: Was 91069

$3.49

$

In Stock, only 4 left!

0

10

Snapper 7016314

WASHER, 5/16 x 1-1/4" Flat
(Superseded to 7016314YP)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage, Grade 5
(Superseded to 703800)

Note: Was 91072

$3.99

$

In Stock, Qty 19

0

13

Snapper 7013931

HOUSING, Bearing

$

$

Not available

14

Snapper 7013924

BEARING
(Superseded to 7013924YP)

Note: (Includes Two #10-32 Socket Set Screws)

$43.99

$

Usually ships in 2-12 days

0

15

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.99

$

In Stock, Qty 20+

0

17

Snapper 7013867

SHEAVE, Blower
(Superseded to 7013867YP)

Note: (Includes Two 5/16 Set Screws)

$87.99

$

Usually ships in 2-12 days

0

18

Snapper 7013937

V-BELT (4L, 38.5"), Blower
(Superseded to 7013937YP)

Note: (All Models with Briggs Engines)

$28.99

$

In Stock, only 3 left!

0

Snapper 7013939

V-BELT (4L, 36.5"), Blower
(Superseded to 7013939YP)

Note: (All Models with Tecumseh Engines)

$26.99

$

In Stock, Qty 7

0

19

Snapper 7010776

RING, 1/2 External Snap (Heavy Duty)
(Superseded to 7010776YP)

$4.49

$

In Stock, Qty 8

0

20

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.99

$

In Stock, only 2 left!

0

21

Snapper 7051358

PLATE, Drive
(Superseded to 7051358YP)

Note: (Includes Item 22)

$

$

Not available

22

Snapper 7014295

BEARING, Ball
(Superseded to 7014295YP)

$16.99

$

Usually ships in 2-12 days

0

23

Snapper 7013936

V-BELT (3L, 37.75"), Traction
(Superseded to 7013936YP)

Note: (Models with Briggs Engines)

$26.99

$

In Stock, Qty 9

0

Snapper 7029101

V-BELT (3L, 37.75"), Traction
(Superseded to 7029101YP)

Note: (Models with Tecumseh Engines)

$24.99

$

In Stock, only 3 left!

0

24

Snapper 7014296

WASHER, 1/2 Shim (4)
(Superseded to 7014296YP)

Note: (Used with Item 21)

$4.49

$

In Stock, only 2 left!

0

25

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 7

0

26

Snapper 7017734

COVER, Belt Guard
(Superseded to 7017734YP)

$56.99

$

In Stock, only 2 left!

0

27

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

$3.99

$

In Stock, Qty 17

0

28

Snapper 7034302

WASHER, 3/4 x 1-1/8" Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 13

0
