927002 (RM 626) - Ariens 26" Rear-Engine Rider, 6hp Tecumseh (SN: 006001 & Above) Electrical System Parts Diagram

26" Rear-Engine Rider, 6hp Tecumseh

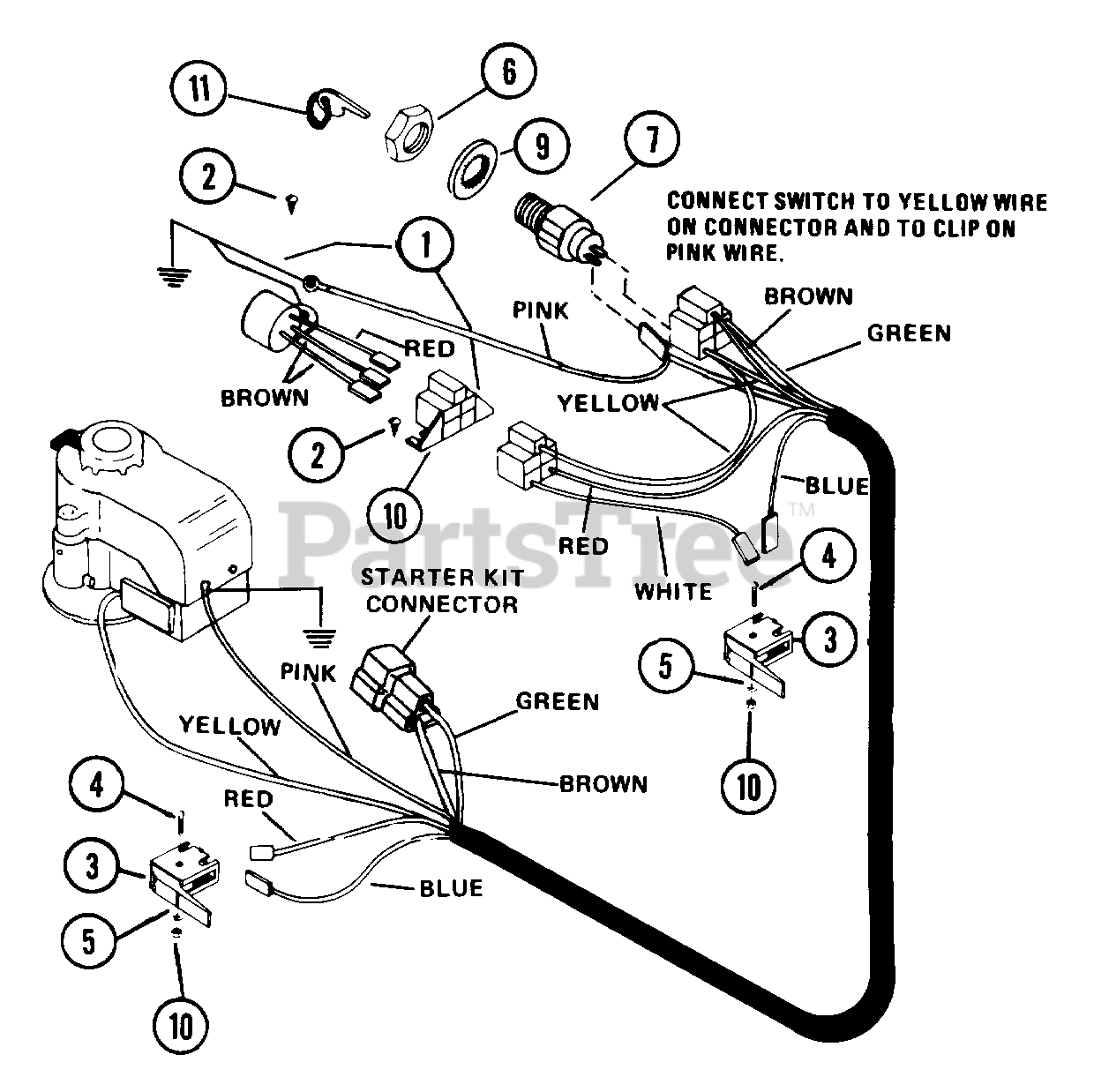

Electrical System Parts Diagram

  • Title

1

Ariens 52502600

MODULE T KIT

Note: (TECUMSEH)

$

$

Not available

2

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

3

Ariens 02707800

SWITCH INTERLOCK

$

$

Not available

4

Ariens 06105000

SCR-MCH 10-24X1.00 SLRH PL

$

$

Not available

5

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.99

$

Usually ships in 4-12 days

0

6

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

Note: (SPECIAL)

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 62409700

SWITCH & KEY SET ASSEMBLY
(Superseded to 52406900)

$39.99

$

In Stock, only 1 left!

0

8

Ariens 02704100

WIRING HARNESS

$

$

Not available

8

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

9

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

10

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

$

$

Not available

11

Ariens 01315700

KEYS
(Superseded to 02460700)

Note: (1 SET)

$10.99

$

In Stock, Qty 20+

0

27

Ariens 06908300

CLIP

$

$

Not available
