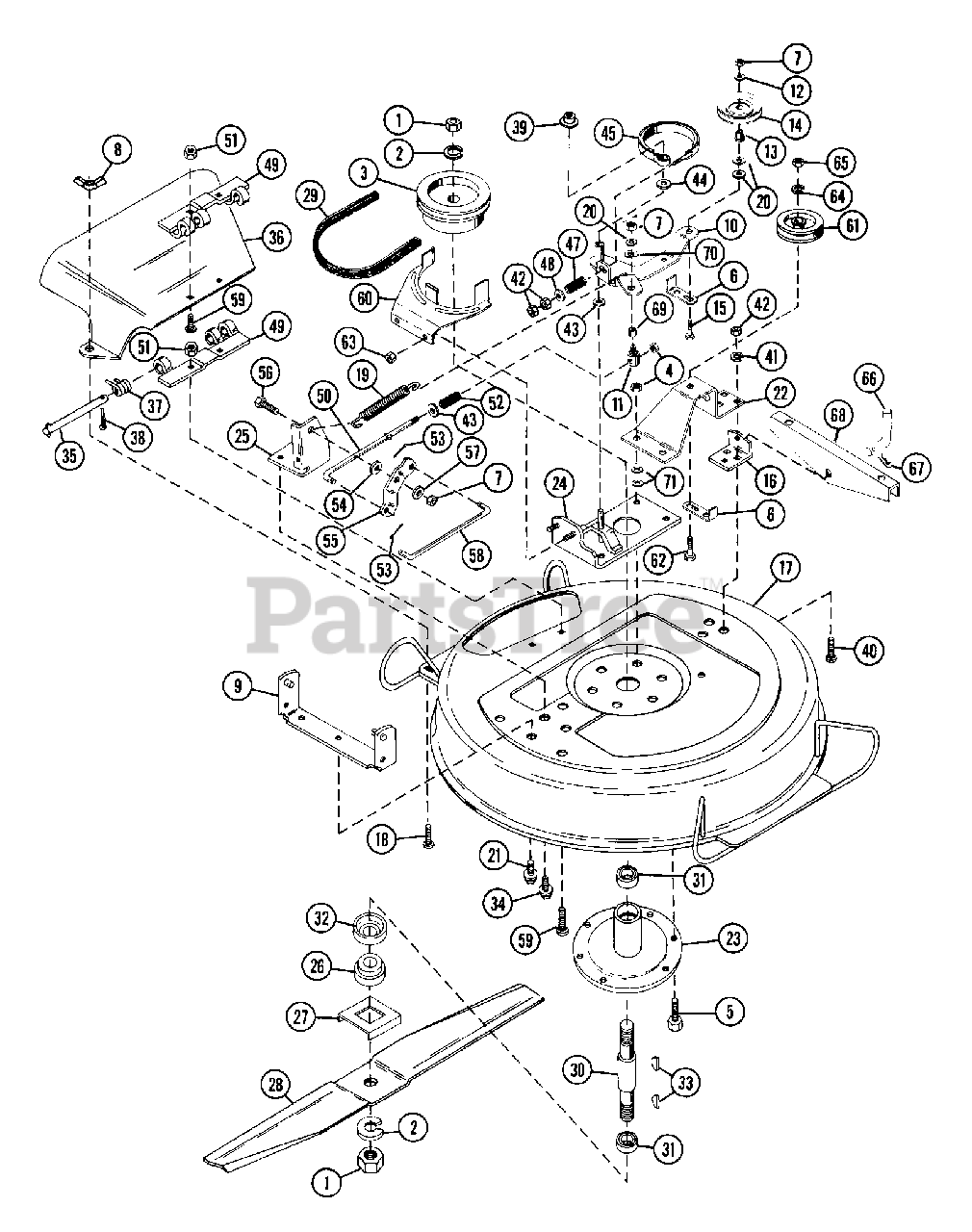

927005 (RM 832) - Ariens 32" Rear-Engine Rider, 8hp Tecumseh (SN: 000101 & Above) Mower 32" Parts Diagram

32" Rear-Engine Rider, 8hp Tecumseh

Mower 32" Parts Diagram

  • Title
1

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$3.63

$

In Stock, Qty 20+

0

2

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$2.80

$

In Stock, Qty 8

0

3

Ariens 02720800

MOWER SHEAVE

$

$

Not available

4

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$2.24

$

In Stock, Qty 20+

0

5

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$2.80

$

In Stock, only 2 left!

0

6

Ariens 02720700

BELT FINGER

$16.71

$

Usually ships in 4-12 days

0

7

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.52

$

In Stock, Qty 20+

0

8

Ariens 06506400

NUT-WING .250-20
(Superseded to 06537500)

$

$

Not available

9

Ariens 02720100

FRONT MOUNTING BRACKET

$

$

Not available

10

Ariens 02720500

IDLER ARM
(Superseded to 52704000)

$

$

Not available

11

Ariens 02720600

ROD PIVOT

$42.48

$

Usually ships in 4-12 days

0

12

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$2.40

$

In Stock, Qty 5

0

13

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.30

$

Usually ships in 5-11 days

0

14

Ariens 01213200

IDLER
(Superseded to 52007000)

$44.55

$

In Stock, Qty 13

0

15

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$

$

Not available

16

Ariens 02720200

REAR MOUNTING BRACKET

$

$

Not available

17

Ariens 52701600

32 IN MOWER PAN W/ DECALS
(Superseded to 52709700)

Note: (INCLUDES DECALS)

$

$

Not available

18

Ariens 06204200

BLT-RDHDSQNK .25-20X.75 GR5PL
(Superseded to 06219900)

$1.96

$

In Stock, Qty 19

0

19

Ariens 08301000

SG-TENS .072X.51X5.31 WLD 25

$8.89

$

Usually ships in 4-12 days

0

20

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$2.18

$

In Stock, Qty 20+

0

21

Ariens 07001000

BLT-SCRHFWH .38-16X.50 PL

$3.58

$

Usually ships in 4-12 days

0

22

Ariens 02720000

IDLER MOUNT

$5.53

$

Usually ships in 4-12 days

0

23

Ariens 00317200

SPINDLE HOUSING

$

$

Not available

24

Ariens 02720300

PIVOT PLATE

$53.61

$

Usually ships in 4-12 days

0

25

Ariens 02720400

DECK PIVOT BRACKET

$5.53

$

Usually ships in 4-12 days

0

26

Ariens 00316900

RETAINER HUB

$14.48

$

In Stock, only 1 left!

0

27

Ariens 00317000

BLADE TRAY

$29.68

$

Usually ships in 4-12 days

0

28

Ariens 02721500

32 IN MOWER BLADE
(Superseded to 02728600)

$33.48

$

In Stock, Qty 7

0

29

Ariens 07212400

OBSOLETE
(Superseded to 07215500)

$36.89

$

In Stock, only 1 left!

0

30

Ariens 00312700

MOWER SPINDLE

$66.91

$

Usually ships in 4-12 days

0

31

Ariens 05412000

BRG-BALL .750X1.781X.61

$8.89

$

In Stock, only 3 left!

0

32

Ariens 00341900

BEARING SLINGER

$16.16

$

In Stock, Qty 5

0

33

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$2.80

$

In Stock, only 2 left!

0

34

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.46

$

Usually ships in 4-12 days

0

35

Ariens 02520500

CLEVIS PIN
(Superseded to 03624200)

$29.40

$

In Stock, only 4 left!

0

36

Ariens 03524300

CHUTE DEFLECTOR
(Superseded to 53503200)

$

$

Not available

37

Ariens 08314500

SG-TORS .090X.37X.63

$14.48

$

In Stock, only 2 left!

0

38

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$1.96

$

In Stock, Qty 11

0

39

Ariens 01019900

FASTENER

$

$

Not available

40

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06200232)

$2.24

$

In Stock, Qty 10

0

41

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$

$

Not available

42

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$

$

Not available

43

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$2.18

$

In Stock, Qty 20+

0

44

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$2.52

$

In Stock, Qty 20+

0

45

Ariens 02503300

BRAKE BAND

$

$

Not available

46

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.58

$

Usually ships in 4-12 days

0

47

Ariens 08312000

SG-COMP .072X.687X.75

$

$

Not available

48

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$2.52

$

In Stock, Qty 20+

0

49

Ariens 02709500

HINGE PLATE
(Superseded to 02709551)

$27.00

$

In Stock, only 4 left!

0

50

Ariens 02720900

CLUTCH ROD
(Superseded to 52701700)

$

$

Not available

51

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$

$

Not available

52

Ariens 08311400

SG-COMP .106X.63X3.42 WLD 90
(Superseded to 08324600)

$20.07

$

Usually ships in 4-12 days

0

53

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$1.68

$

In Stock, Qty 12

0

54

Ariens 02700900

SPACER
(Superseded to 01035800)

$3.47

$

Usually ships in 4-12 days

0

$

$

Not available

56

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.24

$

In Stock, Qty 5

0

57

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$

$

Not available

58

Ariens 02721200

CLUTCH ROD
(Superseded to 52706700)

$

$

Not available

59

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$3.58

$

Usually ships in 4-12 days

0

60

Ariens 02721100

BELT FINGER

$

$

Not available

61

Ariens 07310900

IDLER-V 3.06 X .38

$23.42

$

In Stock, only 3 left!

0

62

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$2.80

$

In Stock, Qty 20+

0

63

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$

$

Not available

64

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$2.52

$

In Stock, Qty 19

0

65

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.96

$

In Stock, Qty 6

0

66

Ariens 02510000

CLEVIS PIN
(Superseded to 00212300)

$3.30

$

In Stock, Qty 5

0

67

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.24

$

In Stock, Qty 7

0

68

Ariens 02708300

SWIVEL BRACKET

$19.85

$

Usually ships in 4-12 days

0

69

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$10.73

$

Usually ships in 4-12 days

0

70

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$1.96

$

In Stock, Qty 6

0

71

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$2.24

$

In Stock, Qty 20+

0
