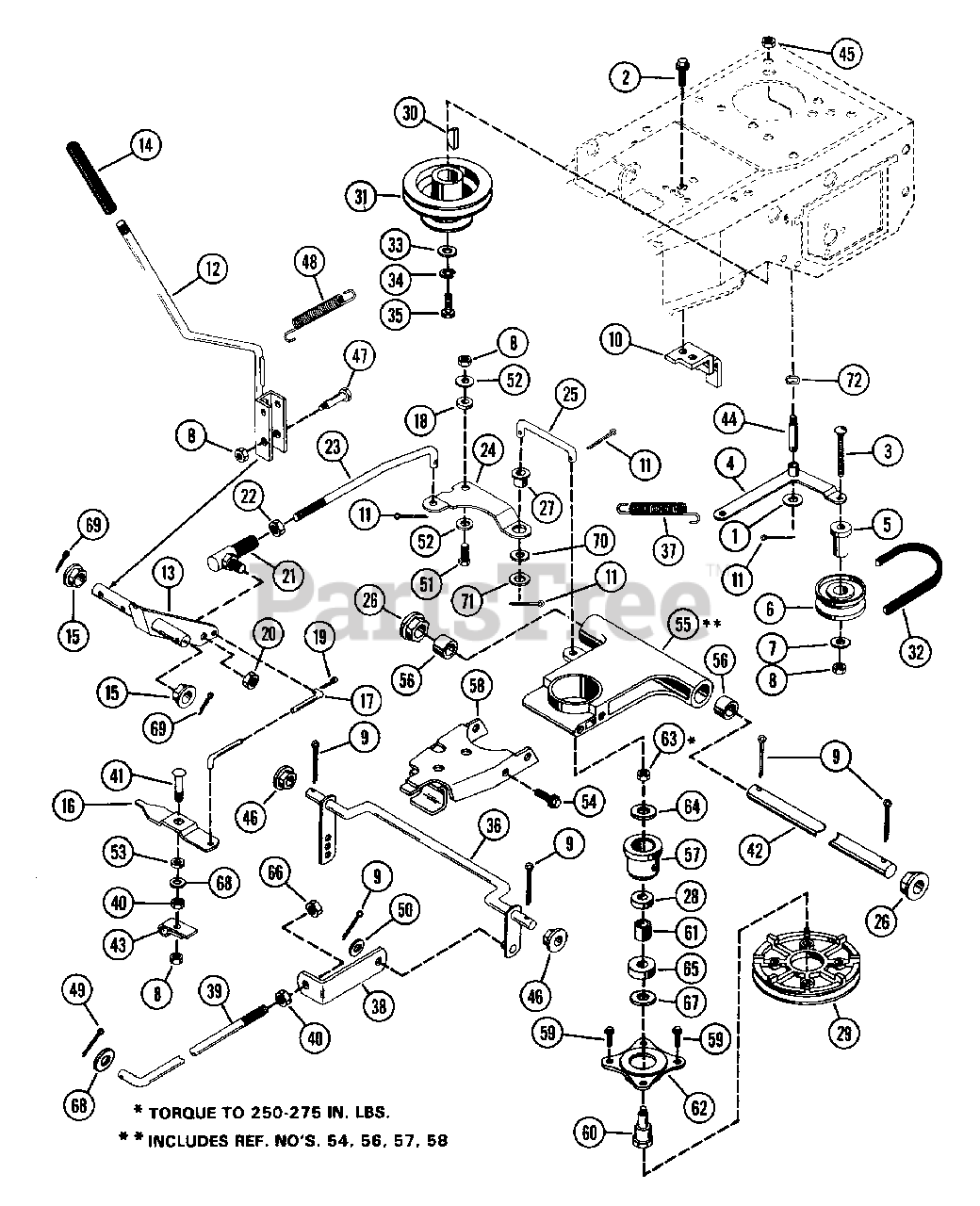

927025 (RM 830 E) - Ariens 30" Rear-Engine Rider, 8hp Briggs & Stratton (SN: 004001 - 008300)

30" Rear-Engine Rider, 8hp Briggs & Stratton

927025 (RM 830 E) - Ariens 30" Rear-Engine Rider, 8hp Briggs & Stratton (SN: 004001 - 008300) > Parts Diagrams (10) > Speed Control

  • Title
06405600

1

WSHR-FL-STL .505X.880X.072 PL

Part# 06405600 (Superseded to 06436600)

OEM Warranty Repair Part for Ariens

Not available

07000900

2

BLT-SERHFWH .31-18X.50 PL

Part# 07000900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06204800

3

BLT-RDHDSQNK .31-18X1.25 SHTPL

Part# 06204800 (Superseded to 06212100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

02700600

4

IDLER ARM

Part# 02700600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.98

02519500

5

SPACER -SHLD .344X.500X.469

Part# 02519500

OEM Warranty Repair Part for Ariens

Not available

01213200

6

IDLER

Part# 01213200 (Superseded to 52007000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $42.43

06400200

7

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06504200

8

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06700400

9

PIN-COTR .12X1.0 PL

Part# 06700400 (Superseded to 06707100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02735200

10

NEUTRAL STOP

Part# 02735200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

06700100

11

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02731800

12

SHIFT LEVER

Part# 02731800 (Superseded to 02752400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

02703800

13

SHIFT ARM

Part# 02703800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $68.23

07509800

14

GRIP

Part# 07509800 (Superseded to 07514800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.81

01212800

15

FLANGE BUSHING

Part# 01212800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

02704000

16

INDICATOR

Part# 02704000

OEM Warranty Repair Part for Ariens

Not available

02703900

17

INDICATOR ROD

Part# 02703900

OEM Warranty Repair Part for Ariens

Not available

00607100

18

SPACER BUSHING .5 X .32 X .21

Part# 00607100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $10.73

06700300

19

PIN-COTR .06X.50

Part# 06700300 (Superseded to 06712400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06504300

20

NUT-LK-CTR .312-24 PL

Part# 06504300 (Superseded to 06537000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

00306000

21

SNAP IN BALL JOINT

Part# 00306000

OEM Warranty Repair Part for Ariens

Not available

06503100

22

NUT-HEX .312-24 PL

Part# 06503100 (Superseded to 06529500)

OEM Warranty Repair Part for Ariens

Not available

02700800

23

SHIFT ROD

Part# 02700800

OEM Warranty Repair Part for Ariens

Not available

02700700

24

BELL CRANK

Part# 02700700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

02701700

25

SHIFT LINK

Part# 02701700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

01212900

26

FLANGE BUSHING

Part# 01212900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05503600

27

BSHG-FLG .372X.500X.312X.625NY

Part# 05503600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05403900

28

BRG-BALL .625X1.375X.44

Part# 05403900 (Superseded to 05435100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

02528400

29

DISC

Part# 02528400

OEM Warranty Repair Part for Ariens

Not available

06602100

30

KEY-STR .25X2.0X.25

Part# 06602100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

02701000

31

ENGINE SHEAVE

Part# 02701000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $119.01

07211200

32

V-BELT, 3L-RAW EDGE

Part# 07211200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $18.73

06408300

33

WSHR-FL-STL .505X1.140X.250

Part# 06408300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.03

06300400

34

WSHR-LK .375X.115 HVY PL

Part# 06300400 (Superseded to 06306500)

OEM Warranty Repair Part for Ariens

Not available

05901700

35

BLT-HEX .38-24X1.25 BLKO GR5

Part# 05901700

OEM Warranty Repair Part for Ariens

Not available

02701300

36

CLUTCH SHAFT

Part# 02701300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

08319200

37

SG-TENS .062X.72X6.65 WLD 7

Part# 08319200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

02703500

38

CLUTCH BRACKET

Part# 02703500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $19.23

02703600

39

ROD, CLUTCH

Part# 02703600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $65.40

06501500

40

NUT-HEX .312-18

Part# 06501500 (Superseded to 06529200)

OEM Warranty Repair Part for Ariens

Not available

06203100

41

BLT-RDHDSQNK .31-18X1.0 SHT PL

Part# 06203100 (Superseded to 06200007)

OEM Warranty Repair Part for Ariens

Not available

02701900

42

TRANSFER SHAFT

Part# 02701900

OEM Warranty Repair Part for Ariens

Not available

06908300

43

CLIP

Part# 06908300

OEM Warranty Repair Part for Ariens

Not available

02714000

44

SHOULDER STUD

Part# 02714000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.89

06503900

45

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02505500

46

FLANGE BUSHING

Part# 02505500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

02712900

47

SHOULDER BOLT .436 X .912

Part# 02712900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

08309900

48

SG-TENS .092X.69X1.75 WLD 54

Part# 08309900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06702400

49

PIN-COTR .12X.75 PL

Part# 06702400 (Superseded to 06707300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06410400

50

WSHR-FL-STL .520X.810X.033

Part# 06410400

OEM Warranty Repair Part for Ariens

Not available

05902200

51

BLT-HEX .31-18X.75 PL GR2

Part# 05902200 (Superseded to 05947000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06407900

52

WSHR-FL-STL .344X1.125X.063PL

Part# 06407900 (Superseded to 06425500)

OEM Warranty Repair Part for Ariens

Not available

01035800

53

SPACER BUSHING .5 X .32 X .163

Part# 01035800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.47

07002200

54

BLT-SCRHFWH .25-20X.62 PL

Part# 07002200

OEM Warranty Repair Part for Ariens

Not available

52700900

55

CARRIER ASSEMBLY

Part# 52700900 (Superseded to 52709000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $104.48

05504700

56

BSHG-SLV .625X.750X.500 BR

Part# 05504700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.64

02716100

57

BEARING HOUSING

Part# 02716100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

02715000

58

CARRIER YOKE

Part# 02715000 (Superseded to 52709000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $104.48

07000900

59

BLT-SERHFWH .31-18X.50 PL

Part# 07000900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

02715900

60

SPINDLE BOLT

Part# 02715900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.08

05512800

61

BSHG-SLV .634X1.000X.465

Part# 05512800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.81

02716000

62

DISC ADAPTER

Part# 02716000

OEM Warranty Repair Part for Ariens

Not available

06505400

63

NUT-LK-CTR .50-20 PL

Part# 06505400 (Superseded to 06530000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06418100

64

WSHR-HDND-STL-THR.515X.97X.062

Part# 06418100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05412000

65

BRG-BALL .750X1.781X.61

Part# 05412000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06506200

66

NUT-LK-NYL.312-18 PL

Part# 06506200 (Superseded to 06530200)

OEM Warranty Repair Part for Ariens

Not available

06413400

67

WSHR-HDND-THRST .758X1.23X.031

Part# 06413400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06405700

68

WSHR-FL-STL .323X.625X.062 PL

Part# 06405700 (Superseded to 06436700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06700200

69

PIN-COTR .09X1.0 PL

Part# 06700200 (Superseded to 06707000)

OEM Warranty Repair Part for Ariens

Not available

06420100

70

WSHR-FL-STL .531X1.250X.100 PL

Part# 06420100 (Superseded to 06441900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06407800

71

WSHR-FL-STL .380X.626X.033

Part# 06407800

OEM Warranty Repair Part for Ariens

Not available

00325400

72

WAVE WASHER .531X.781X.125FH

Part# 00325400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85
