927028 (RM 1032 E) - Ariens 32" Rear-Engine Rider, 10hp Tecumseh (SN: 000101 & Above) Electrical W/ Battery Parts Diagram

32" Rear-Engine Rider, 10hp Tecumseh

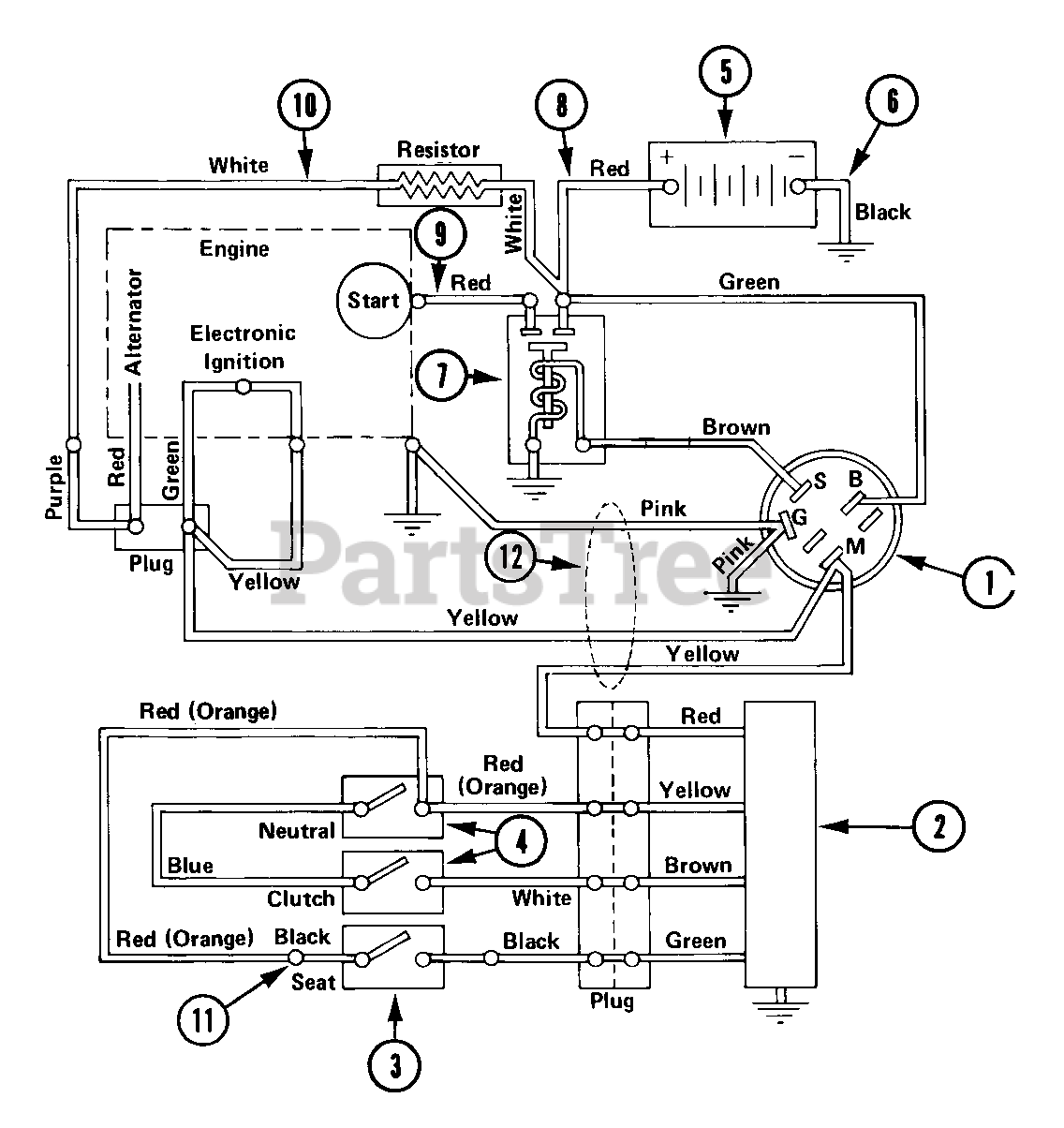

Electrical W/ Battery Parts Diagram

  • Title

1

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$60.99

$

In Stock, only 2 left!

0

2

Ariens 02723700

MODULE
(Superseded to 52707800)

Note: (28,29)

$

$

Not available

2

Ariens 02724000

MODULE
(Superseded to 52707700)

Note: (25,30,32)

$

$

Not available

3

Ariens 02737900

SAFETY SWITCH

$27.99

$

Usually ships in 4-12 days

0

3

Ariens 52703800

SEAT WITH SWITCH REPLACEMENT P
(Superseded to 52706600)

$

$

Not available

3

Ariens 03171600

SWITCH SEAT

$

$

Not available

4

Ariens 02707800

SWITCH INTERLOCK

$

$

Not available

5

Ariens 02512900

BATTERY
(Superseded to 52708000)

Note: (25,28,29,30,31,32)

$

$

Not available

6

Ariens 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

Note: (25,28,29,30,31,32)

$18.99

$

In Stock, only 4 left!

0

7

Ariens 03057700

SOLENOID

Note: (25,28,29,30,31,32,33)

$

$

Not available

8

Ariens 02727900

STARTER CABLE 16"

Note: (25,28,29,30)

$43.99

$

Usually ships in 4-12 days

0

9

Ariens 02727200

STARTER CABLE 13"
(Superseded to 02727201)

Note: (25,28,29,30,31,32)

$24.99

$

In Stock, only 2 left!

0

10

Ariens 02539400

CHARGING WIRE
(Superseded to 53600600)

Note: (25,30,32)

$

$

Not available

10

Ariens 02721300

CHARGING WIRE
(Superseded to 53600600)

Note: (28,29,31)

$

$

Not available

11

Ariens 02739700

ADAPTER - SEAT SWITCH

$

$

Not available

12

Ariens 02737500

WIRE HARNESS

Note: (28,29,31)

$

$

Not available

12

Ariens 02738400

WIRE HARNESS

Note: (25,30,32)

$

$

Not available

12

Ariens 02747400

WIRE HARNESS

Note: (25)

$

$

Not available

14

Ariens 01238500

REGULATOR

Note: (25)

$94.99

$

Usually ships in 4-12 days

0
