927037 (RM 830 E) - Ariens 30" Rear-Engine Rider, 8hp (SN: 000101 - 003900) Electrical Parts Diagram

30" Rear-Engine Rider, 8hp

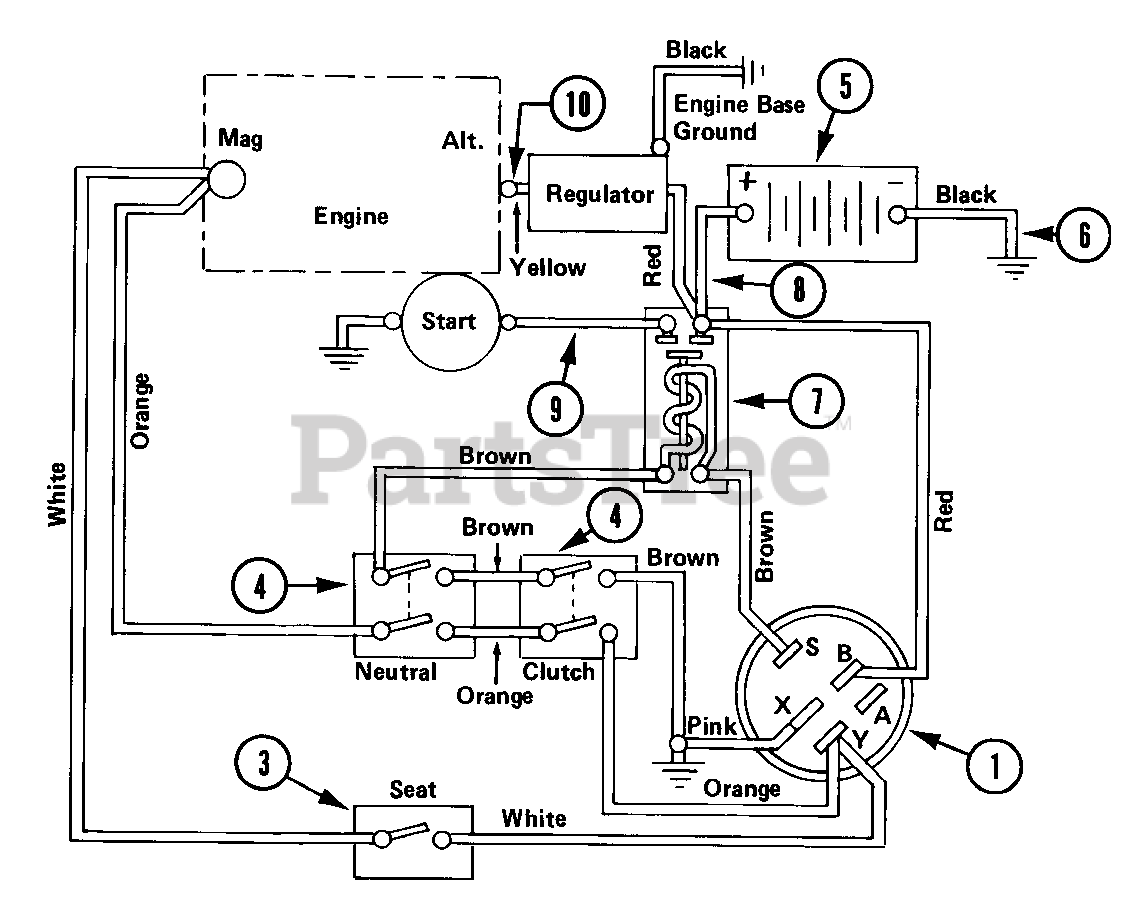

Electrical Parts Diagram

  • Title

1

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

Note: (025, 040, 041, 042, 043, 044, 045)

$60.99

$

In Stock, only 2 left!

0

1

Ariens 01234100

KEY SWITCH

Note: (037, 039)

$69.99

$

Usually ships in 4-12 days

0

3

Ariens 02737900

SAFETY SWITCH

$27.99

$

Usually ships in 4-12 days

0

3

Ariens 52703800

SEAT WITH SWITCH REPLACEMENT P
(Superseded to 52706600)

$

$

Not available

3

Ariens 03171600

SWITCH SEAT

$

$

Not available

4

Ariens 02707800

SWITCH INTERLOCK

$

$

Not available

4

Ariens 01237100

SWITCH ASSEMBLY, N.O./N.O.

$

$

Not available

5

Ariens 02512900

BATTERY
(Superseded to 52708000)

$

$

Not available

6

Ariens 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

$18.99

$

In Stock, only 4 left!

0

7

Ariens 03551000

SOLENOID

$45.99

$

In Stock, only 2 left!

0

8

Ariens 02727900

STARTER CABLE 16"

$43.99

$

Usually ships in 4-12 days

0

9

Ariens 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$24.99

$

In Stock, only 2 left!

0

11

Ariens 02739700

ADAPTER - SEAT SWITCH

$

$

Not available

12

Ariens 02748200

WIRE HARNESS GROUND TO RUN

$

$

Not available

14

Ariens 01238500

REGULATOR

$94.99

$

Usually ships in 4-12 days

0
