927037 (RM 830 E) - Ariens 30" Rear-Engine Rider, 8hp (SN: 006339 & Above) Frame And Seat Parts Diagram

30" Rear-Engine Rider, 8hp

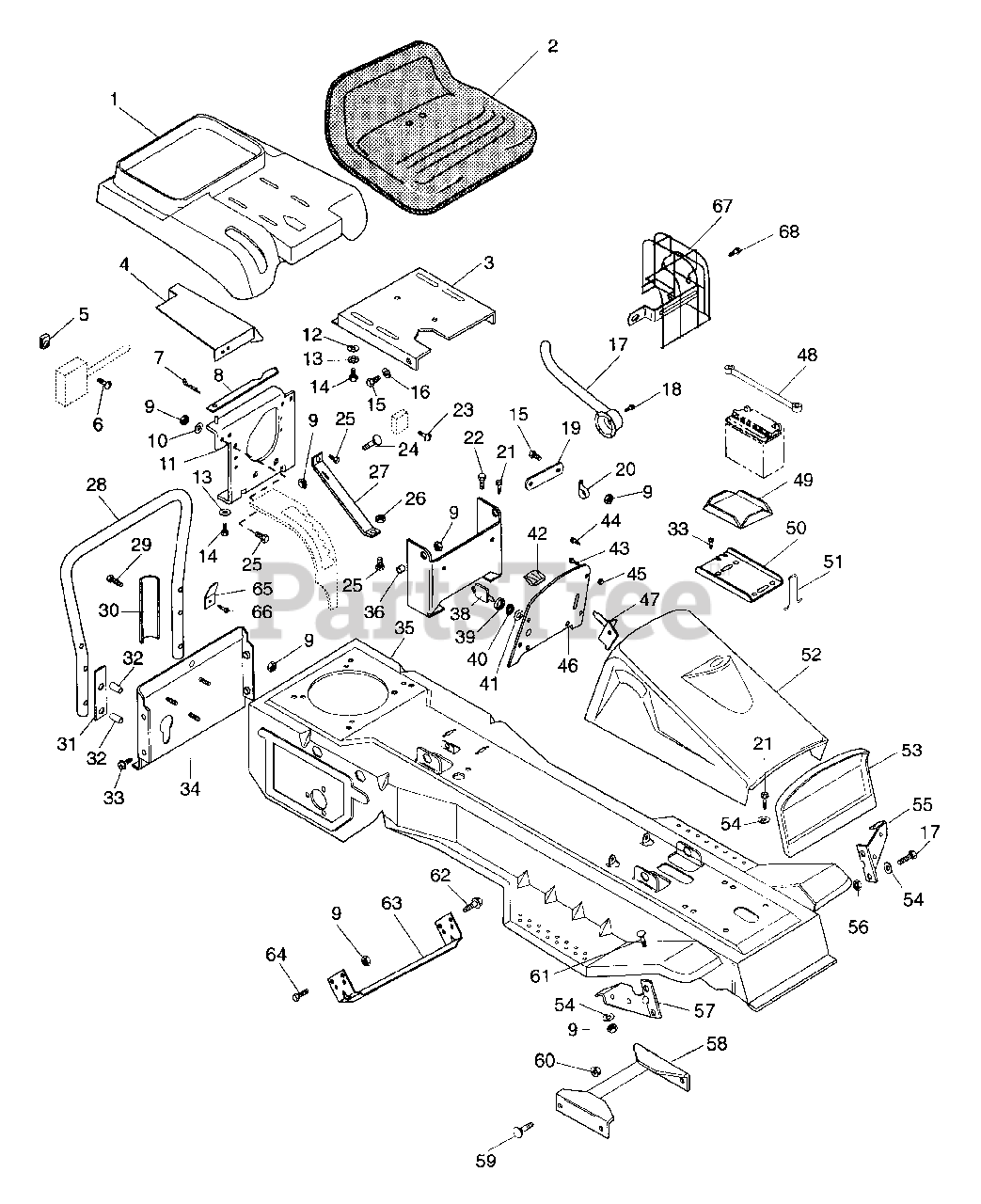

Frame And Seat Parts Diagram

  • Title

1

Ariens 02726400

ENGINE COVER
(Superseded to 52707400)

Note: (Models 047,050,303)

$

$

Not available

2

Ariens 03584600

SEAT-V450
(Superseded to 02756800)

Note: (Models 043,047,050,302,303)

$

$

Not available

2

Ariens 03504100

SEAT V-350
(Superseded to 02756800)

Note: (Models 037,045,048,049,301)

$

$

Not available

3

Ariens 02743500

SEAT BRACKET

$

$

Not available

4

Ariens 02735100

BAFFLE

Note: (Models 047,050,301,303)

$

$

Not available

5

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, only 3 left!

0

6

Ariens 06101400

SCR-MCH 10-24X.38 SLTOR PAN PL

$

$

Not available

7

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 02744900

SEAT HOLD DOWN
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 1 left!

0

11

Ariens 02739100

SEAT LEG ASSEMBLY

$

$

Not available

12

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

14

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$2.99

$

In Stock, Qty 20+

0

17

Ariens 02729400

SPACER .328X.750X.375

Note: (Model 047)

$

$

Not available

18

Ariens 07403400

SCR-TAP 8-32X.38 SL HWH PL 23
(Superseded to 07414500)

Note: (Model 047)

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 02538700

STRAP

Note: (Model 047)

$

$

Not available

20

Ariens 06907500

CLIP

Note: (Model 047)

$

$

Not available

21

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.99

$

In Stock, Qty 13

0

23

Ariens 06101700

SCR-MCH 10-24X.62 SLRH PL

$

$

Not available

24

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

25

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

26

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 02700400

BRACE

$

$

Not available

28

Ariens 02701200

TUBE
(Superseded to 02701251)

Note: (Models 043,045,048,049,301,302)

$43.99

$

Usually ships in 4-12 days

0

28

Ariens 02726700

STANDUP TUBE

Note: (Models 047,050,303)

$122.99

$

Usually ships in 4-12 days

0

29

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

Note: (Models 043,045,048,049,301,302)

$1.99

$

In Stock, Qty 6

0

29

Ariens 05913000

BLT-HEX .31-18X2.75 GR5
(Superseded to 05960600)

Note: (Models 047,050,303)

$2.99

$

Usually ships in 4-12 days

0

30

Ariens 02722700

BRACE
(Superseded to 02722751)

$15.99

$

Usually ships in 4-12 days

0

31

Ariens 02743900

PLATE-BACKING

Note: (Models 047,050,303)

$

$

Not available

32

Ariens 01316600

SPACER .50 X .32 X 1.00

Note: (Models 047,050,303)

$

$

Not available

33

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.99

$

In Stock, Qty 20+

0

34

Ariens 02701100

BACK COVER

$

$

Not available

35

Ariens 52700200

FRAME WITH DECALS

$

$

Not available

36

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$6.49

$

Usually ships in 4-12 days

0

37

Ariens 02736400

SEAT PIVOT BRACKET

$

$

Not available

38

Ariens 02460900

KEY SET
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

39

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 19

0

40

Ariens 06517300

NUT-PANEL .625-32 GRECO

$9.49

$

Usually ships in 4-12 days

0

41

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

42

Ariens 07501900

KNOB

$

$

Not available

43

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

$2.99

$

Usually ships in 4-12 days

0

44

Ariens 07406400

SCR-TAP 10-12X.50 CRPH PL A BL

$3.99

$

Usually ships in 4-12 days

0

45

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

46

Ariens 02743000

DASH PANEL-RM
(Superseded to 52708100)

$

$

Not available

47

Ariens 06912700

THROTTLE CONTROL

$60.99

$

Usually ships in 4-12 days

0

48

Ariens 07507500

BATTERY STRAP

$15.99

$

Usually ships in 4-12 days

0

49

Ariens 02530700

RUBBER PAD

$

$

Not available

50

Ariens 02742300

BATTERY TRAY

$

$

Not available

51

Ariens 02515200

HOOK
(Superseded to 03640900)

$40.99

$

Usually ships in 4-12 days

0

52

Ariens 02708000

COWL

$

$

Not available

53

Ariens 02739500

GRILLE INSERT & SHELL ASSEMBLY

$

$

Not available

54

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

Usually ships in 4-12 days

0

55

Ariens 02718600

L H FENDER BRACE

$

$

Not available

56

Ariens 06509000

NUT-LK-TWIN .312-18 PL

$

$

Not available

57

Ariens 02718700

RH FENDER BRACE

$

$

Not available

58

Ariens 02705200

FRAME BRACE

$

$

Not available

59

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.99

$

In Stock, Qty 20+

0

60

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

61

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

62

Ariens 07402900

SCR-TAP .312-18X1.50 HWH PL TR
(Superseded to 07415300)

$

$

Not available

63

Ariens 02717700

FRAME BRACE

$

$

Not available

64

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$1.99

$

Usually ships in 4-12 days

0

65

Ariens 02726800

CLIP

Note: (Models 047,050,303)

$

$

Not available

66

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

Note: (Models 047,050,303)

$2.49

$

In Stock, Qty 5

0

67

Ariens 02755500

MUFFLER GUARD (B&S#495945)

Note: (Model 302)

$

$

Not available

68

Ariens 02755600

SCREW (B&S#094887)

Note: (Model 302)

$

$

Not available
