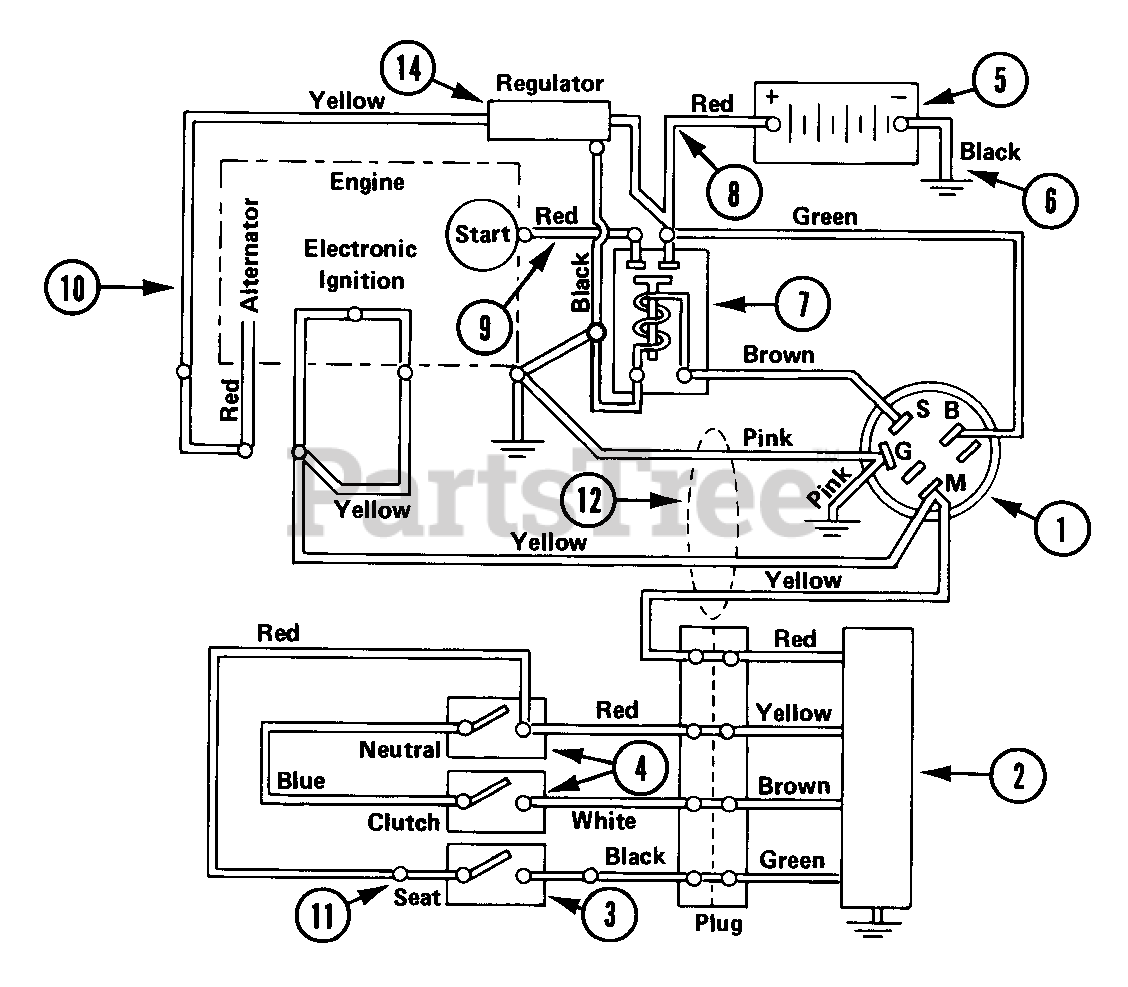

927038 (RM 1230 E) - Ariens 30" Rear-Engine Rider, 12hp Tecumseh (SN: 000101 & Above) Electrical Parts Diagram

30" Rear-Engine Rider, 12hp Tecumseh

Electrical Parts Diagram

  • Title

1

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$58.99

$

In Stock, only 1 left!

0

2

Ariens 02724000

MODULE
(Superseded to 52707700)

$

$

Not available

3

Ariens 02737900

SAFETY SWITCH

$25.99

$

In Stock, only 1 left!

0

3

Ariens 52703800

SEAT WITH SWITCH REPLACEMENT P
(Superseded to 52706600)

$

$

Not available

3

Ariens 03171600

SWITCH SEAT

$

$

Not available

4

Ariens 02707800

SWITCH INTERLOCK

$

$

Not available

5

Ariens 02512900

BATTERY
(Superseded to 52708000)

$

$

Not available

6

Ariens 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

$17.99

$

In Stock, only 2 left!

0

7

Ariens 03057700

SOLENOID

$

$

Not available

8

Ariens 02727900

STARTER CABLE 16"

$41.99

$

In Stock, only 1 left!

0

9

Ariens 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$23.99

$

In Stock, Qty 9

0

11

Ariens 02739700

ADAPTER - SEAT SWITCH

$

$

Not available

12

Ariens 02747400

WIRE HARNESS

$

$

Not available

14

Ariens 01238500

REGULATOR

$90.99

$

Usually ships in 4-12 days

0
