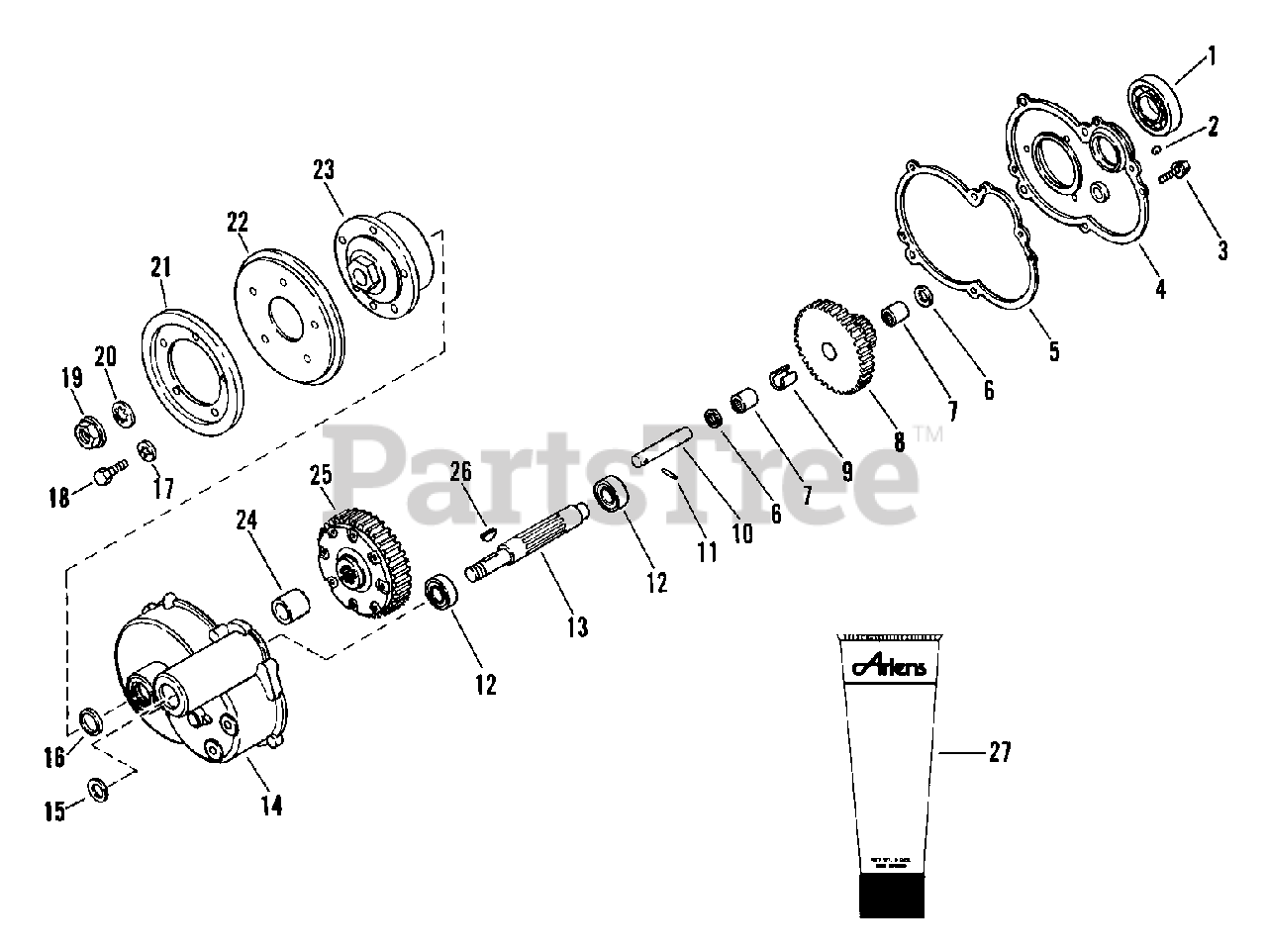

927038 (RM 1230 E) - Ariens 30" Rear-Engine Rider, 12hp Tecumseh (SN: 000101 & Above) Gear Case Parts Diagram

30" Rear-Engine Rider, 12hp Tecumseh

Gear Case Parts Diagram

  • Title

1

Ariens 05409100

BRG-BALL 1.125X2.50X.63

$51.99

$

In Stock, only 1 left!

0

2

Ariens 00200900

BREATHER

$

$

Not available

3

Ariens 07406600

SCR-TAP 10-24X1.0 HWH PL TR
(Superseded to 07415200)

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 52700500

GEAR CASE COVER ASSEMBLY

$

$

Not available

5

Ariens 02737100

GASKET

$6.49

$

Usually ships in 4-12 days

0

6

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

7

Ariens 05409000

BRG-NEEDLE .50X.688X.625

$21.99

$

Usually ships in 4-12 days

0

8

Ariens 52502700

PINION & GEAR W/BEARING ASSEMB

$84.99

$

Usually ships in 4-12 days

0

9

Ariens 02737000

SPACER - CUT .640X.688X.625

$

$

Not available

10

Ariens 02702300

IDLER SHAFT

$

$

Not available

11

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$16.99

$

In Stock, Qty 20+

0

13

Ariens 02523400

PINION SHAFT

$

$

Not available

14

Ariens 52700600

SERVICE GEAR CASE
(Superseded to 52708500)

$

$

Not available

15

Ariens 06408900

WSHR-FL-STL .627X.990X.032

$

$

Not available

16

Ariens 05605100

SEAL .875X1.125X.125

$10.99

$

Usually ships in 4-12 days

0

17

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 1 left!

0

18

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.99

$

In Stock, Qty 13

0

19

Ariens 06507700

NUT-LK-NYL.625-18 PL
(Superseded to 06530300)

$4.99

$

In Stock, Qty 12

0

20

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

21

Ariens 02520600

GUARD

$

$

Not available

22

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$36.99

$

In Stock, Qty 11

0

23

Ariens 02503400

FRICTION DISC HUB

$

$

Not available

25

Ariens 52704200

DIFFERENTIAL ASSEMBLY

$

$

Not available

26

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$3.49

$

In Stock, Qty 9

0

27

Ariens 00015000

MULTIPURPOSE GREASE
(Superseded to 00036700)

$21.99

$

In Stock, Qty 8

0
