927038 (RM 1230 E) - Ariens 30" Rear-Engine Rider, 12hp Tecumseh (SN: 000101 & Above) Mower Spindle Parts Diagram

30" Rear-Engine Rider, 12hp Tecumseh

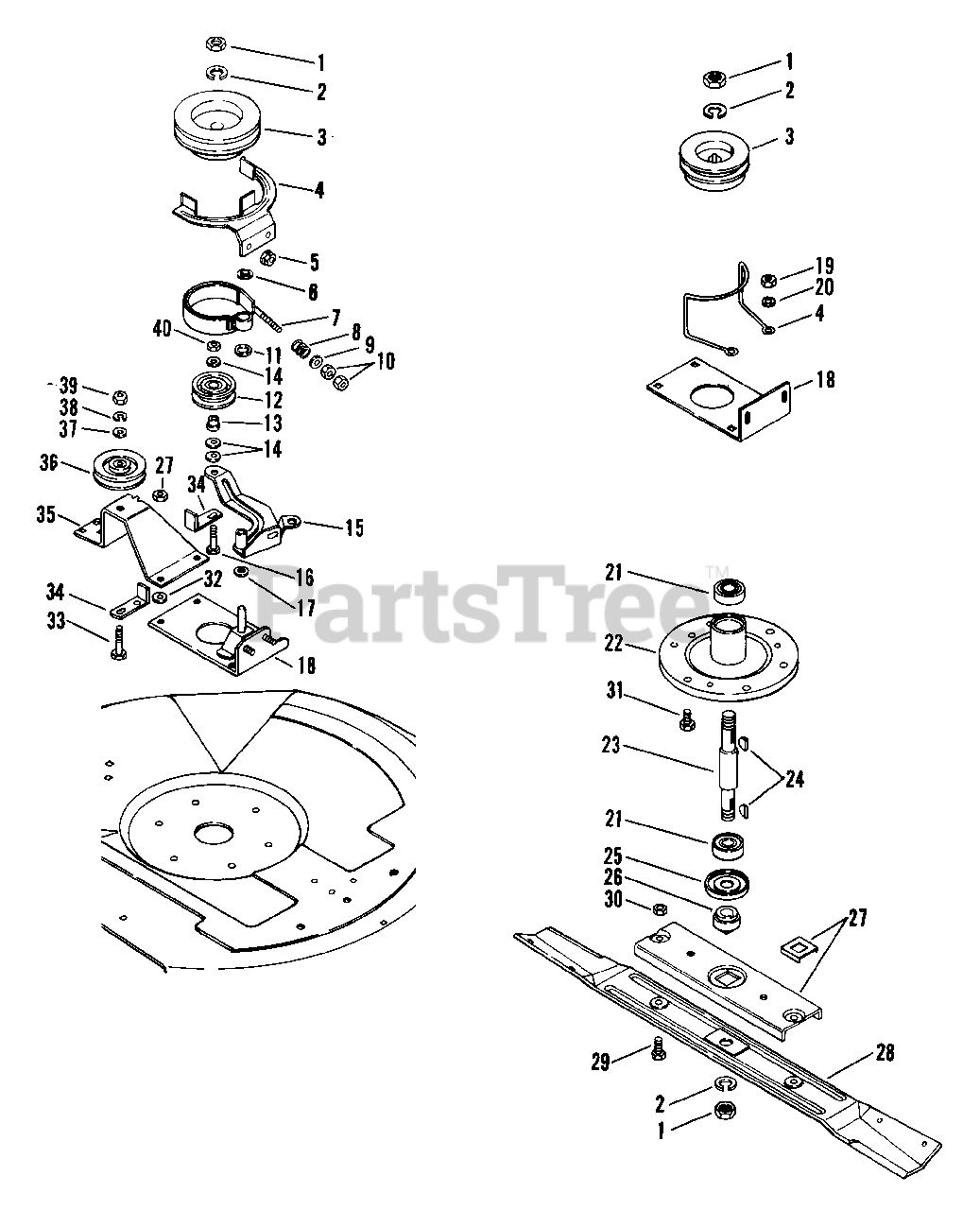

Mower Spindle Parts Diagram

  • Title

1

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.99

$

In Stock, Qty 20+

0

2

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.99

$

In Stock, Qty 16

0

3

Ariens 02712500

MOWER SHEAVE

Note: (927018,033)

$

$

Not available

3

Ariens 02709000

MOWER SHEAVE

Note: (927021)

$

$

Not available

3

Ariens 02719000

MOWER SHEAVE

Note: (927020,024,025,027,031,032,037,038)

$

$

Not available

3

Ariens 02720800

MOWER SHEAVE

Note: (927023,028,030,035)

$

$

Not available

3

Ariens 02744200

MOWER SHEAVE

Note: (927034,036)

$

$

Not available

4

Ariens 02715500

BELT FINGER

Note: (927018,033)

$

$

Not available

4

Ariens 01206100

MOWER BELT FINGER

Note: (927020,021,024,025,027,029,031,032,037,038)

$

$

Not available

4

Ariens 02721100

BELT FINGER

Note: (927023,028,030,035)

$

$

Not available

4

Ariens 02744700

BELT FINGER

Note: (927034,036)

$

$

Not available

5

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 01019900

FASTENER

Note: (927023,028,030,034,035,036)

$

$

Not available

7

Ariens 52704000

PAN BRAKE AND IDLER ARM PACKAG

Note: (927023,028,030)

$

$

Not available

7

Ariens 02740300

BRAKE BAND

Note: (927023,028,030,034,035,036)

$

$

Not available

8

Ariens 08312000

SG-COMP .072X.687X.75

Note: (927023,028,030,034)

$

$

Not available

9

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

11

Ariens 06421200

WSHR-FL-STL .640X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 12

0

12

Ariens 01213200

IDLER
(Superseded to 52007000)

Note: (927023,028,030,031,032,034,035,036)

$40.99

$

In Stock, only 3 left!

0

13

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

Note: (927023,028,030,031,032,034,035,036)

$3.99

$

In Stock, Qty 12

0

14

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 02740400

IDLER ARM

Note: (927023,028,030,034,035,036)

$

$

Not available

16

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.99

$

In Stock, Qty 6

0

17

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 02527600

PLATE

Note: (927018,020,021,024,025,027,029,031,032,033,037,038)

$

$

Not available

18

Ariens 02720300

PIVOT PLATE

Note: (927023,028,030,034,035,036)

$

$

Not available

19

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06407300

WSHR-FL-STL .406X.865X.094 PL

$

$

Not available

21

Ariens 05412000

BRG-BALL .750X1.781X.61

$15.99

$

In Stock, Qty 15

0

22

Ariens 00317200

SPINDLE HOUSING

$

$

Not available

23

Ariens 03526700

SPINDLE SHAFT

$96.99

$

Usually ships in 4-12 days

0

24

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 6

0

25

Ariens 00341900

BEARING SLINGER

$23.99

$

In Stock, Qty 15

0

26

Ariens 00316900

RETAINER HUB

$17.99

$

Usually ships in 4-12 days

0

27

Ariens 00317000

BLADE TRAY

Note: (927018,020,024,025,027,029,032,037,038)

$31.99

$

Usually ships in 4-12 days

0

27

Ariens 02728400

BLADE TRAY

Note: (927021,023,028,030,031,033,034,035,036)

$65.99

$

Usually ships in 4-12 days

0

28

Ariens 02722400

MOWER BLADE 26

Note: (927018)

$

$

Not available

28

Ariens 02728500

MOWER BLADE 28

Note: (927021,031,033)

$34.99

$

Usually ships in 4-12 days

0

28

Ariens 02728700

MOWER BLADE 30 INCHES

Note: (927020,024,025,027,029,032,037,038)

$39.99

$

In Stock, Qty 5

0

28

Ariens 02728600

MOWER BLADE 32

Note: (927023,028,030,034,035,036)

$56.99

$

In Stock, only 3 left!

0

29

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.99

$

Usually ships in 4-12 days

0

31

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

32

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.99

$

In Stock, only 3 left!

0

34

Ariens 02720700

BELT FINGER

Note: (927023,028,030,034,035,036)

$

$

Not available

35

Ariens 02720000

IDLER MOUNT

Note: (927023,028,030,034,035,036)

$5.99

$

Usually ships in 4-12 days

0

36

Ariens 07310900

IDLER-V 3.06 X .38

$24.99

$

In Stock, only 2 left!

0

37

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$8.49

$

In Stock, Qty 8

0

38

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$1.49

$

In Stock, Qty 18

0

39

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0
