927052 (RM 1330 E) - Ariens 30" Rear-Engine Rider, 13hp Briggs & Stratton (SN: 000101 & Above) Electrical Parts Diagram

30" Rear-Engine Rider, 13hp Briggs & Stratton

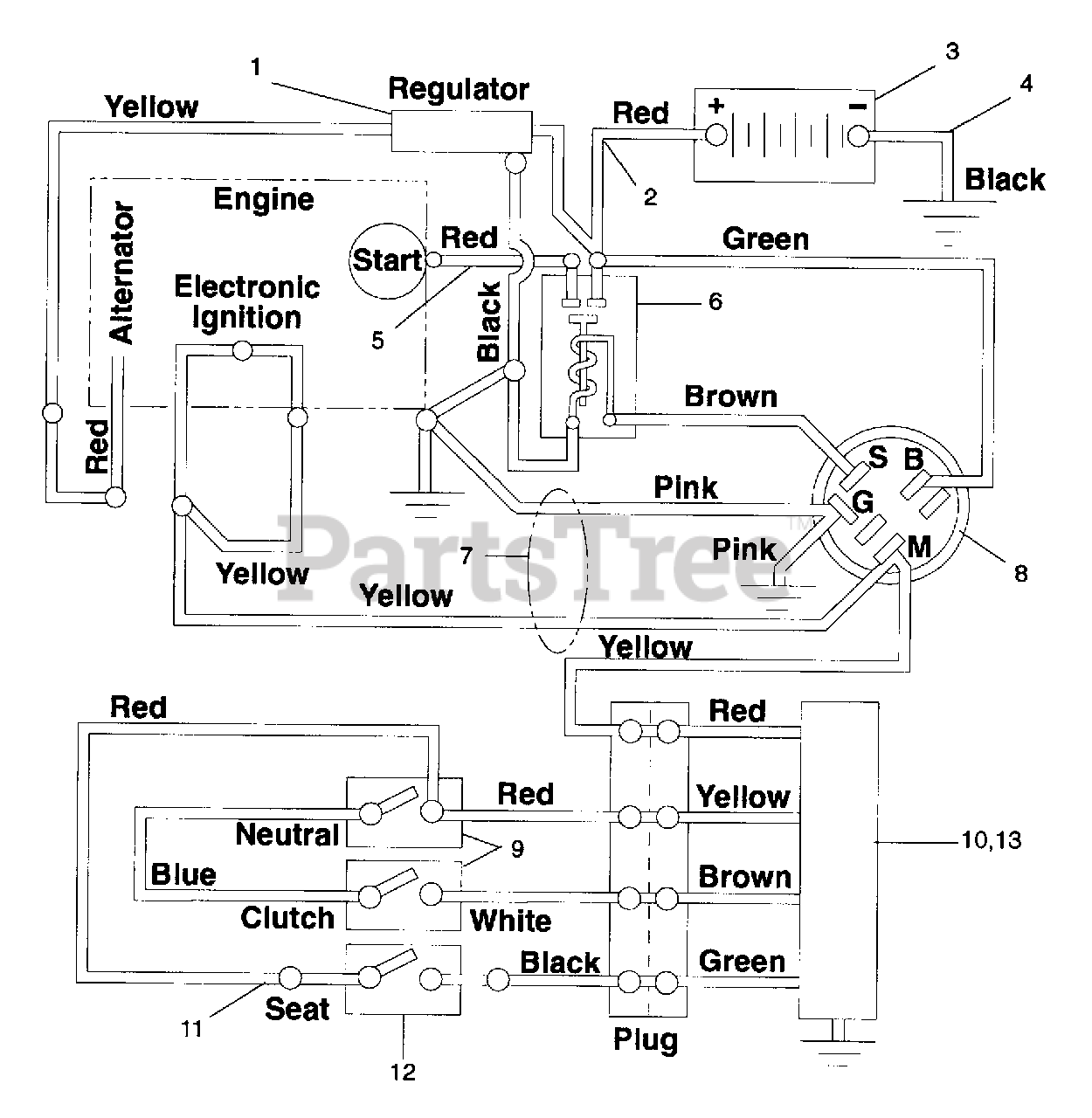

Electrical Parts Diagram

  • Title

1

Ariens 01238500

REGULATOR

$86.99

$

Usually ships in 4-12 days

0

2

Ariens 02727900

STARTER CABLE 16"

$35.99

$

Usually ships in 4-12 days

0

3

Ariens 02749400

BATTERY

$

$

Not available

4

Ariens 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

$14.99

$

In Stock, only 1 left!

0

5

Ariens 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$20.99

$

Usually ships in 4-12 days

0

6

Ariens 03057700

SOLENOID

$22.99

$

In Stock, only 2 left!

0

7

Ariens 02753600

WIRE HARNESS RM B&S ENGINES

$

$

Not available

8

Ariens 52707300

SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, only 4 left!

0

9

Ariens 02754100

SWITCH- SNAP MTG N.O.

$9.49

$

In Stock, Qty 20+

0

10

Ariens 08885700

MODULE,INTERLOCK,RECOIL, 1201

$87.99

$

Usually ships in 4-12 days

0

11

Ariens 02739700

ADAPTER - SEAT SWITCH

$

$

Not available

12

Ariens 03171600

SWITCH SEAT

$

$

Not available

13

Ariens 02755800

HARNESS ADAPTER

$59.99

$

Usually ships in 4-12 days

0
