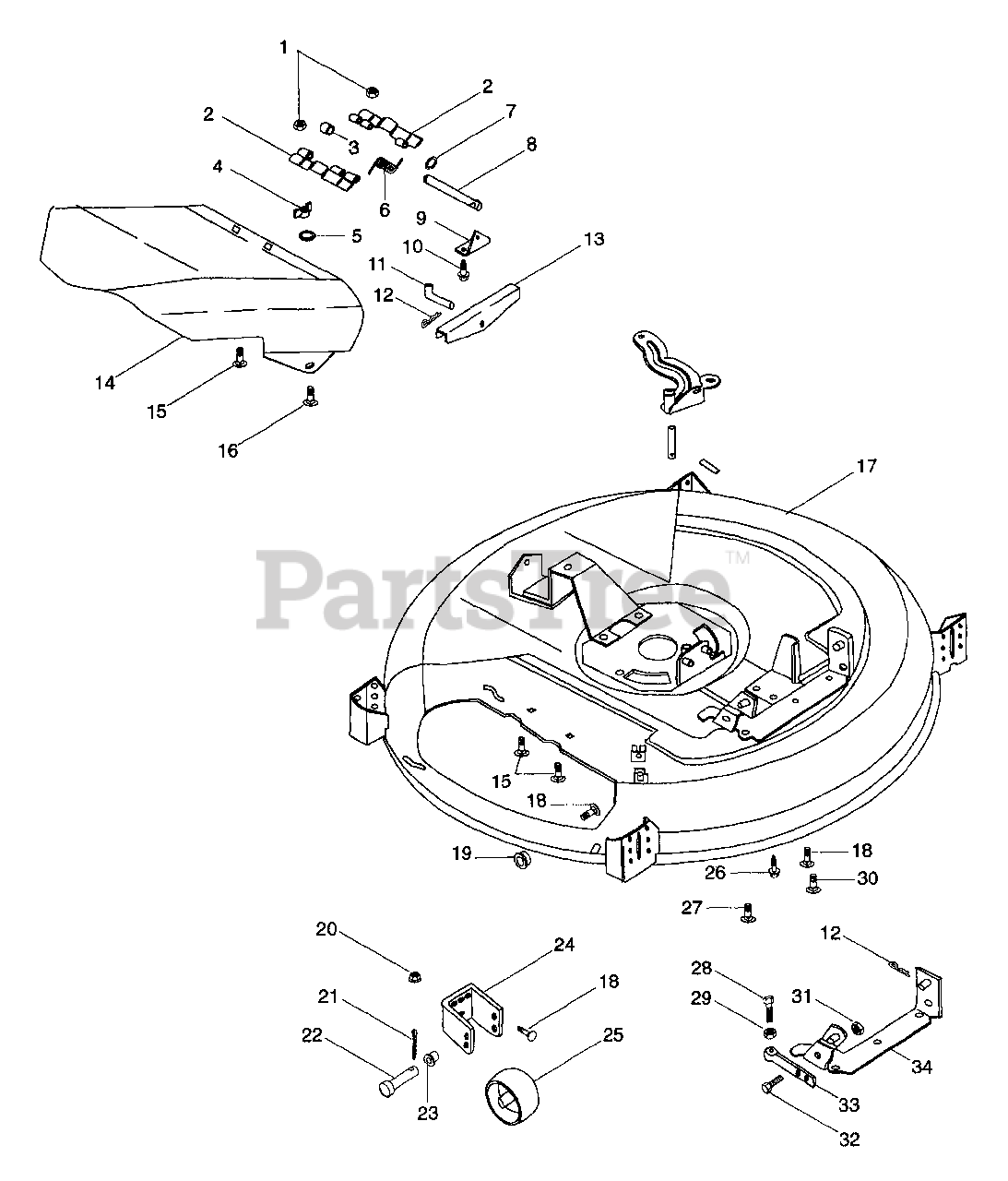

927052 (RM 1330 E) - Ariens 30" Rear-Engine Rider, 13hp Briggs & Stratton (SN: 000101 & Above) Mower Pan Parts Diagram

30" Rear-Engine Rider, 13hp Briggs & Stratton

Mower Pan Parts Diagram

  • Title

1

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 02709500

HINGE PLATE
(Superseded to 02709551)

$28.99

$

In Stock, only 3 left!

0

3

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

Note: (Used Only On Model(s): 049,052).

$6.49

$

In Stock, only 4 left!

0

4

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$6.49

$

In Stock, only 1 left!

0

5

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 08307200

SG-TORS .095X.50X 1.0

Note: (Used Only On Model(s): 049,052).

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 08318500

SG-TORS .090X.37X.63

Note: (Used Only On Model(s): 048,301,304).

$

$

Not available

6

Ariens 08314500

SG-TORS .090X.37X.63

Note: (Used Only On Model(s): 051,305).

$15.99

$

In Stock, only 2 left!

0

7

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

8

Ariens 03624200

PIN

$54.99

$

In Stock, only 1 left!

0

9

Ariens 02509700

REAR MOUNTING BRACKET

Note: (Used Only On Model(s): 049,052).

$

$

Not available

10

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 00212300

CLEVIS PIN

$3.99

$

In Stock, only 3 left!

0

12

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 1 left!

0

13

Ariens 03708300

TUBE WELDMENT
(Superseded to 03708351)

$

$

Not available

14

Ariens 02520400

PAN CHUTE EXTENSION

Note: (Used Only On Model(s): 049,052).

$114.99

$

Usually ships in 4-12 days

0

14

Ariens 52707000

28" DEFLECTOR W/DECALS

Note: (Used Only On Model(s): 048,301,304).

$141.99

$

Usually ships in 4-12 days

0

14

Ariens 53508200

32" DEFLECTOR W/DECAL

Note: (Used Only On Model(s): 051,305).

$

$

Not available

15

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

16

Ariens 06203700

BLT-RDHDSQNK .25-20X1.00 GR5
(Superseded to 06219800)

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 52706800

28"MOWER PAN W/DEFLECTOR&DECAL
(Superseded to 52708700)

Note: (Used Only On Model(s): 048,301,304).

$

$

Not available

17

Ariens 52706200

28" MOWER PAN SERVICE ASSEMBLY
(Superseded to 52708800)

$

$

Not available

17

Ariens 52702200

30"MOWER PAN W/DEFLECTOR&DECAL

Note: (Used Only On Model(s): 049,052).

$

$

Not available

17

Ariens 52703400

30" MOWER PAN ASSEMBLY
(Superseded to 52709400)

Note: (Used Only On Model(s): 049,052).

$

$

Not available

17

Ariens 52706900

32"MOWER PAN W/DEFLECTOR&DECAL
(Superseded to 52709600)

Note: (Used Only On Model(s): 051,305).

$

$

Not available

17

Ariens 52706100

32" MOWER PAN ASSY RETROFIT
(Superseded to 52709700)

Note: (Used Only On Model(s): 051,305).

$

$

Not available

18

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

21

Ariens 06701600

PIN-COTR .15 X 1.0 PL
(Superseded to 06712300)

$2.49

$

In Stock, only 4 left!

0

22

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

$6.99

$

In Stock, Qty 8

0

23

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$2.49

$

In Stock, Qty 20+

0

24

Ariens 02747600

ROLLER CLEVIS
(Superseded to 02747651)

Note: (Used Only On Model(s): 048,051,301,304,305).

$28.99

$

In Stock, only 2 left!

0

25

Ariens 02745400

ROLLER

Note: (Used Only On Model(s): 048,051,301,304,305).

$16.99

$

In Stock, Qty 20+

0

26

Ariens 07401600

SCR-TAP .375-16X .50 HWH PL TR
(Superseded to 07412900)

$1.99

$

In Stock, Qty 19

0

27

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.99

$

In Stock, Qty 20+

0

28

Ariens 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.99

$

In Stock, Qty 16

0

29

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06201200

BLT-RDHDSQNK .25-20X.75
(Superseded to 06219900)

$1.49

$

Usually ships in 4-12 days

0

31

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 05904800

@BLT-HEX .38-16X.88 PL GR2

$2.99

$

Usually ships in 4-12 days

0

33

Ariens 02736600

ADJUSTING ARM

$

$

Not available

34

Ariens 02736800

FRONT BRACKET 30"

Note: (Used Only On Model(s): 049,052).

$

$

Not available
