927060 (1028) - Gravely 28" Rear-Engine Riding Mower, 10hp Briggs & Stratton, Hydro (SN: 000101 - 000399) 28" And 32" Decks, Belts, And Blades Parts Diagram

28" Rear-Engine Riding Mower, 10hp Briggs & Stratton, Hydro

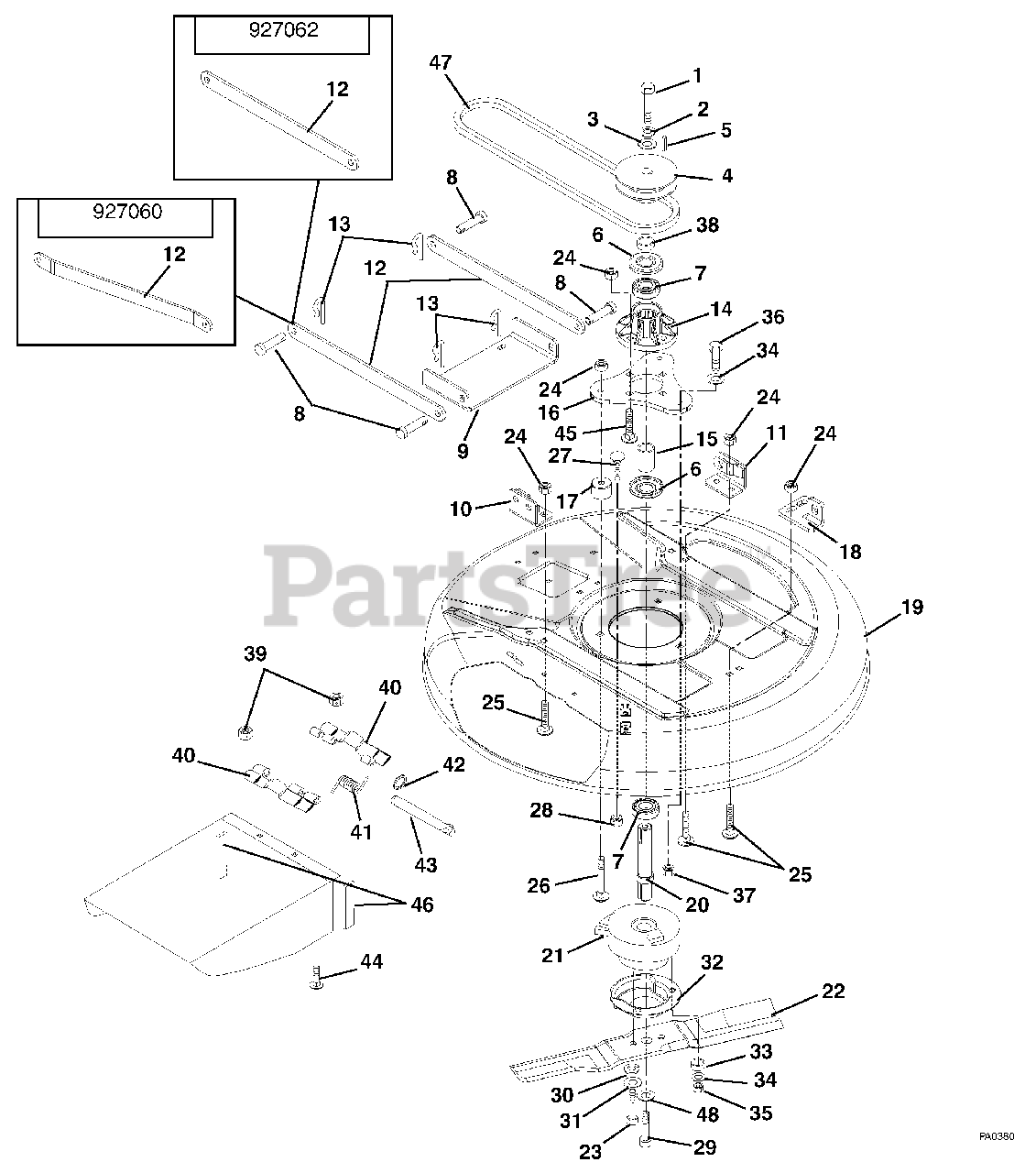

28" And 32" Decks, Belts, And Blades Parts Diagram

  • Title

1

Gravely 05974500

Bolt-Hex .38-16 x 1.00 Grade 8 with Epoxy Patch
(Superseded to 05901721)

$1.99

$

In Stock, Qty 18

0

2

Gravely 06306500

Washer, Locking .375 x .115 Heavy
(Superseded to 06300120)

$3.49

$

In Stock, Qty 10

0

3

Gravely 06442400

Washer, Flat Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, Qty 5

0

4

Gravely 02776100

Pulley, 28" Deck Input

$

$

Not available

4

Gravely 02775600

Pulley, 32" Deck Input
(Superseded to 51512100)

$146.99

$

Usually ships in 4-12 days

0

5

Gravely 06611100

Key, Square .25 x .38 x .25

$1.49

$

In Stock, Qty 20+

0

6

Gravely 01572700

Bearing, Slinger

$8.99

$

In Stock, only 1 left!

0

7

Gravely 032050

Bearing, Ball 1.00 x 2.00 x .56
(Superseded to 05416000)

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 06817400

Pin, Clevis .494 x 1.00

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 02780600

Bracket, Rear Hanger 28"(060)

Note: (060)

$

$

Not available

9

Gravely 02780400

Bracket, Rear Hanger 32" (062)

Note: (062)

$

$

Not available

10

Gravely 02767400

Bracket, Deck Link Right Hand (060)

Note: (060)

$

$

Not available

10

Gravely 02763751

Bracket, Deck Link Right Hand (062)

Note: (062)

$

$

Not available

11

Gravely 02763751

Weldment, Deck Link Right Hand (060)

Note: (060)

$

$

Not available

11

Gravely 02763851

Weldment, Deck Link Left Hand (062)

Note: (062)

$

$

Not available

12

Gravely 02767651

Link-Stabilizer (Right Hand Only) (060)

Note: (Right Hand Only) (060)

$

$

Not available

12

Gravely 02764351

Link Stabilizer (060)

Note: (060)

$

$

Not available

12

Gravely 02764351

Link Stabilizer (062)

Note: (062)

$

$

Not available

13

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, only 2 left!

0

14

Gravely 62727400

Assembly, Spindle Housing

$179.99

$

Usually ships in 4-12 days

0

15

Gravely 01590500

Spacer, 1.00 x 1.25 x 1.60

$6.99

$

Usually ships in 4-12 days

0

16

Gravely 02764251

Spindle, Mount Plate

$85.99

$

Usually ships in 4-12 days

0

17

Gravely 02763100

Spacer, Mounting Plate

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 02780700

Bracket, Front Lift Hanger (060)

Note: (060)

$

$

Not available

18

Gravely 02780300

Bracket, Front Lift Hanger (062)

Note: (062)

$

$

Not available

19

Gravely 02764100

Deck 32"

$

$

Not available

20

Gravely 02774300

Shaft, 32" Input

$155.99

$

Usually ships in 4-12 days

0

21

Gravely 52711800

Clutch Kit (061)

Note: 52711800 includes belt p/n 07221000.

$

$

Not available

Gravely 52711900

Clutch Kit (063)

Note: 52711900 includes belt p/n 07241400.

$905.99

$

Usually ships in 4-12 days

0

22

Gravely 01600600

Blade, 28" Mower

$27.99

$

In Stock, Qty 5

0

22

Gravely 02774500

Blade, 32" Mower

$43.99

$

In Stock, Qty 8

0

23

Gravely 05979600

Bolt, Hex M10 x 1.25 x 30

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 06544500

Nut, Locking-Top-Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06227000

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

26

Gravely 06226800

Bolt-Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06213400)

$3.99

$

In Stock, only 1 left!

0

27

Gravely 06212100

Bolt-Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

28

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 2 left!

0

29

Gravely 05979800

Bolt, Button Head .50 x 1.25-20

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 06304600

Washer, Locking Metric 10 MM

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 02774600

Shield, Debris

$71.99

$

Usually ships in 4-12 days

0

33

Gravely 00520100

Bushing, Bronze .75 I.D. x .88 O.D. x .50 Long

$

$

Not available

34

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

35

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

36

Gravely 05958300

Bolt-Hex .38-16 x 3.00 Grade 5
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

37

Gravely 06534900

Nut-Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

38

Gravely 022501

Spacer Steel 1.01 x 1.38 x .509
(Superseded to 08524600)

$

$

Not available

39

Gravely 06527600

Nut-Locking-Center .25-20

$0.99

$

In Stock, Qty 20+

0

40

Gravely 02709500

Hinge Plate
(Superseded to 02709551)

$27.99

$

Usually ships in 4-12 days

0

41

Gravely 040368

Spring-Torsion .09 x .37 x .63
(Superseded to 08314500)

$14.99

$

In Stock, only 2 left!

0

42

Gravely 05706300

Ring-Retaining-External .312 x .025

$0.99

$

Usually ships in 4-12 days

0

43

Gravely 03624200

Pin

$51.99

$

In Stock, only 1 left!

0

44

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

45

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, Qty 20+

0

46

Gravely 00910400

Trim Bulk 0125

$3.99

$

Usually ships in 4-12 days

0

47

Gravely 51512000

Belt, PTO (060)

Note: 51512000 includes belt p/n 07243300 and pulley p/n 01610400. Use belt p/n 07221000 if clutch kit p/n 52711800 is installed. Use belt p/n 07221000 if clutch kit p/n 52711800 is installed.

$134.99

$

Usually ships in 4-12 days

0

47

Gravely 51512100

Belt, PTO (062 SN = 000140 and up)

Note: 51512100 includes belt p/n 07242200 and pulley 01610300. Use belt p/n 07241400 if clutch kit p/n 52711900 is installed. Use belt p/n 07241400 if clutch kit 52711900 is installed.

$146.99

$

Usually ships in 4-12 days

0

48

Gravely 06447700

Washer, Flat Steel .50 x 1.75 x .187

$3.99

$

Usually ships in 4-12 days

0
