927060 (1028) - Gravely 28" Rear-Engine Riding Mower, 10hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Deck Lift Parts Diagram

28" Rear-Engine Riding Mower, 10hp Briggs & Stratton, Hydro

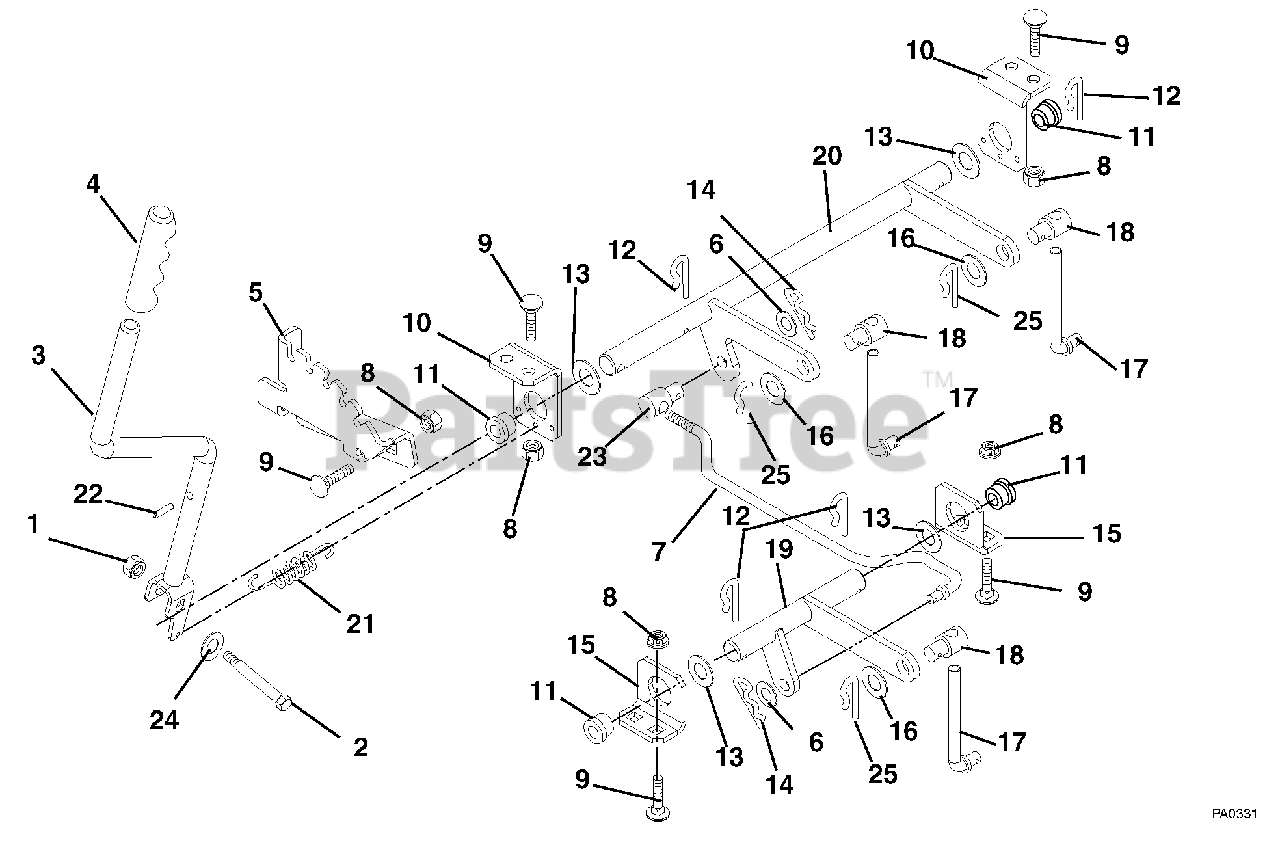

Deck Lift Parts Diagram

  • Title

1

Gravely 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 05980300

BOLT,SHLDR .38X1.25 .31-18 PLN

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 02762451

WLDMT-LIFT HANDLE
(Superseded to 51511000)

$

$

Not available

4

Gravely 07527500

GRIP

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 02762300

DETENT PLATE

$

$

Not available

6

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 02776300

ROD, DECK LIFT

$

$

Not available

8

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

10

Gravely 02762800

BRACKET-HANGER

$

$

Not available

11

Gravely 05503900

BSHG-FLG .750X1.000X.625X1.250

$13.99

$

In Stock, Qty 5

0

12

Gravely 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 02762700

BRACKET-PIVOT

$

$

Not available

16

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 02778100

LINK, LIFT

Note: (060, 062)

$42.99

$

Usually ships in 4-12 days

0

Gravely 02778100

LINK, LIFT

Note: (064)

$42.99

$

Usually ships in 4-12 days

0

18

Gravely 01590400

TRUNNION-.50

Note: (060, 062)

$59.99

$

In Stock, only 3 left!

0

Gravely 01590400

TRUNNION-.50

Note: (064)

$59.99

$

In Stock, only 3 left!

0

19

Gravely 02762500

WMT, FRONT LIFT

Note: (060, 062)

$

$

Not available

Gravely 02779800

LIFT, FRONT (4O" DECK)

Note: (064)

$34.99

$

Usually ships in 4-12 days

0

20

Gravely 02762600

WMT, REAR LIFT

Note: (060, 062)

$

$

Not available

Gravely 02778200

LIFT, REAR (WLDMNT)

Note: (064)

$

$

Not available

21

Gravely 08333900

SPRING, EXTENSION

$

$

Not available

22

Gravely 05800700

PIN-ROLL .250X1.25

$1.49

$

In Stock, only 3 left!

0

23

Gravely 02779500

PIVOT, ROD

$

$

Not available

24

Gravely 06443800

WSHR,FL-STL.43X1.00X.160 ZC120

$3.99

$

In Stock, only 1 left!

0

25

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0
