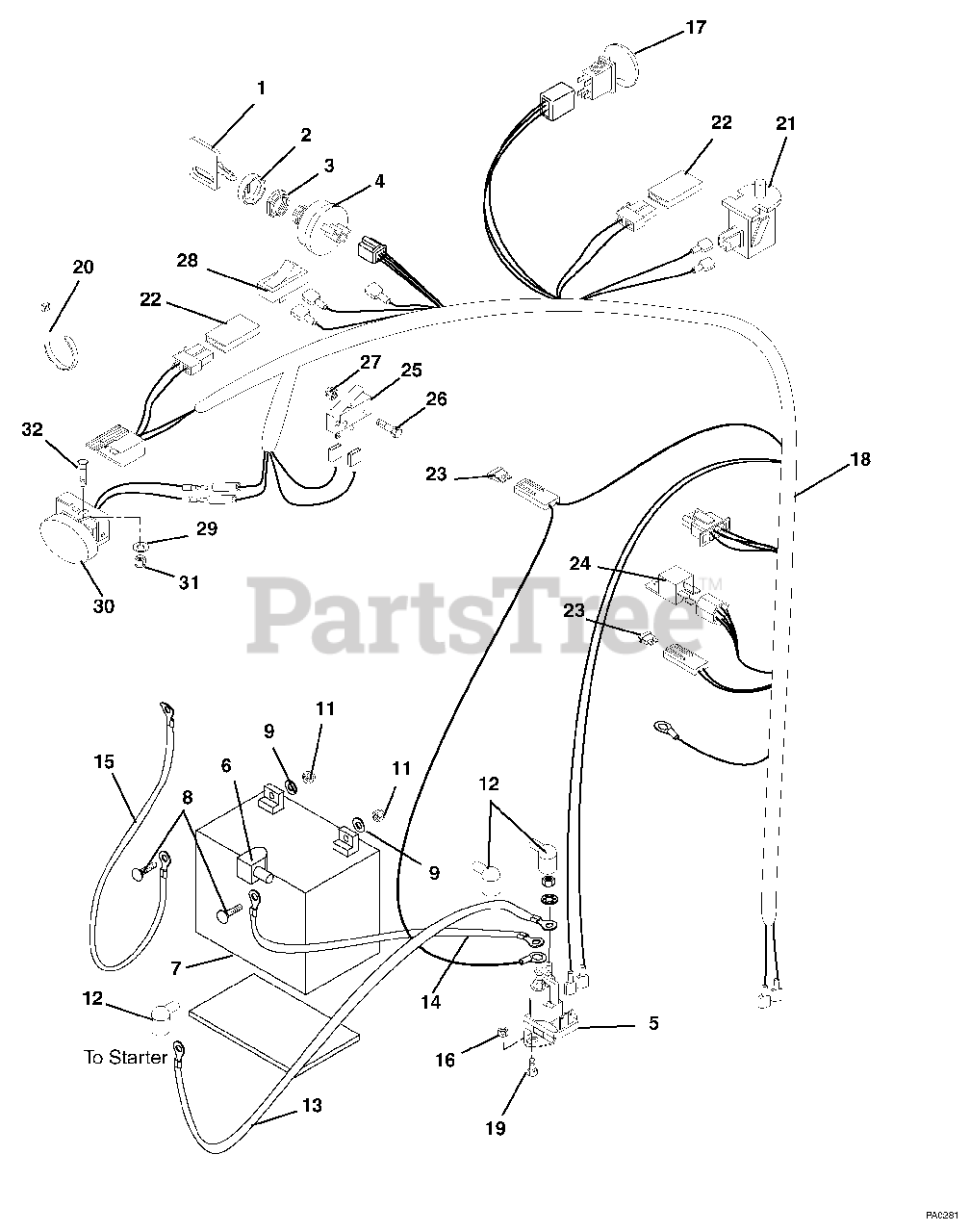

927060 (1028) - Gravely 28" Rear-Engine Riding Mower, 10hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Electrical System Parts Diagram

28" Rear-Engine Riding Mower, 10hp Briggs & Stratton, Hydro

Electrical System Parts Diagram

  • Title

1

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

2

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

3

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

4

Gravely 01563700

SWITCH KEY 5Y463A ALT GRDNG

$35.99

$

In Stock, Qty 5

0

5

Gravely 03679000

SOLENOID
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

6

Gravely 039619

INSULATOR
(Superseded to 07505700)

$10.99

$

In Stock, only 2 left!

0

7

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

8

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

11

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

12

Gravely 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 18

0

13

Gravely 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$23.99

$

In Stock, only 2 left!

0

14

Gravely 02727900

STARTER CABLE 16"

$41.99

$

Usually ships in 4-12 days

0

15

Gravely 08840400

CBL,NEGATIVE BATTERY 20.00

$18.99

$

Usually ships in 4-12 days

0

16

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

18

Gravely 02776200

WIRE HARNESS - RER
(Superseded to 02776201)

$219.99

$

Usually ships in 4-12 days

0

19

Gravely 07412100

SCR-TAP 10-24X.375 HWH YZ TR

$0.99

$

Usually ships in 4-12 days

0

20

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

21

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$9.99

$

In Stock, Qty 20+

0

22

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

23

Gravely 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, Qty 12

0

24

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

25

Gravely 02777200

SWITCH, RER PARK BRAKE

$

$

Not available

26

Gravely 05980000

SCREW, MACHINE 2-56 X 3/4
(Superseded to 05980500)

$

$

Not available

27

Gravely 06545000

NUT, NYLK 2-56 PL

$

$

Not available

28

Gravely 03656800

SWITCH - LIGHT

Note: (Optional)

$

$

Not available

29

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

Note: (Optional)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 01588200

LIGHT-CONS RIDE ON- SEE B-2124

Note: (Optional)

$

$

Not available

31

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

Note: (Optional)

$1.99

$

In Stock, Qty 20+
