927060 (1028) - Gravely 28" Rear-Engine Riding Mower, 10hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Engine Parts Diagram

28" Rear-Engine Riding Mower, 10hp Briggs & Stratton, Hydro

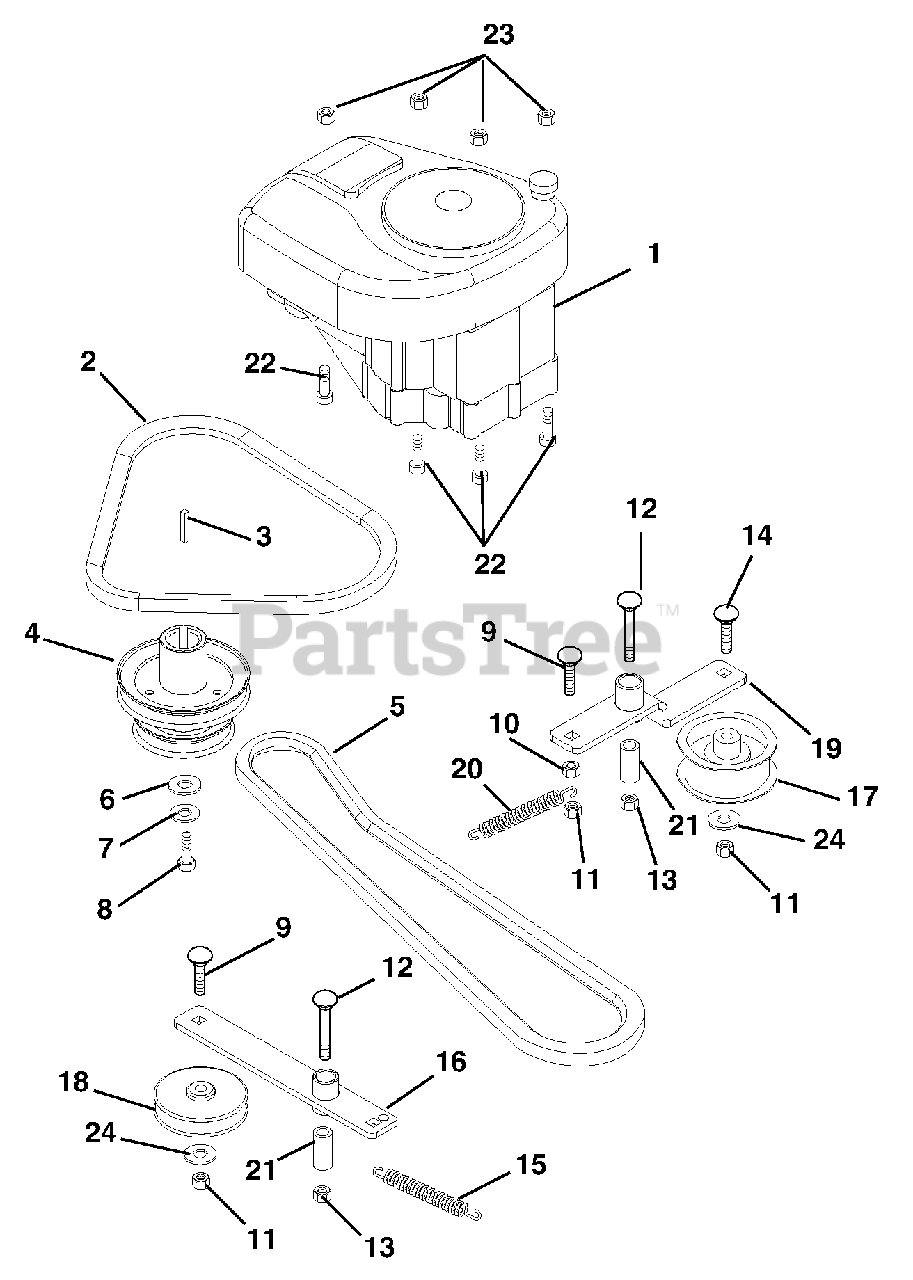

Engine Parts Diagram

  • Title

1

Gravely 52710400

GROUP-ENG 12HP INTEK AVS

Note: (062)

$

$

Not available

Gravely 52710300

ENG GROUP 10HP INTEK AVS

Note: (060)

$

$

Not available

Gravely 52710500

GROUP-ENG 14HP INTEK AVS

Note: (064)

$

$

Not available

2

Gravely 036233

V-BELT, 4L-RAW EDGE
(Superseded to 07211700)

$31.99

$

In Stock, only 2 left!

0

3

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 02775700

STACK, RER ENGINE SHEAVE

Note: (060, 062)

$149.99

$

Usually ships in 4-12 days

0

Gravely 02778900

STACK, RER 40" DECK SHEAVE

Note: (064)

$

$

Not available

5

Gravely 07242400

V-BELT, HA-WRAPPED
(Superseded to 51512100)

Note: (062)

$149.99

$

In Stock, only 1 left!

0

Gravely 07242500

OBSOLETE
(Superseded to 51512000)

Note: (060)

$137.99

$

Usually ships in 4-12 days

0

Gravely 07242600

V-BELT, HA-WRAPPED

Note: (064)

$46.99

$

In Stock, only 2 left!

0

6

Gravely 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

$7.49

$

In Stock, only 2 left!

0

7

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 05967500

BLT-HEX .44-20X1.75 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06227400

BLT-RDHDSQSHNK .50-13X2.75 BZC

$

$

Not available

13

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06224300

BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, Qty 11

0

15

Gravely 011263

SG-TENS .095X.500X5.5 WLD60 YZ
(Superseded to 08353300)

$15.99

$

Usually ships in 4-12 days

0

16

Gravely 02775400

IDLER, DRIVE (WLDMNT)

$

$

Not available

17

Gravely 048870

IDLER 2.75X1.25
(Superseded to 07318400)

$23.99

$

In Stock, only 3 left!

0

18

Gravely 07309200

IDLER-V 3X.38

$38.99

$

In Stock, only 1 left!

0

19

Gravely 02776400

IDLER, RER PTO (WLDMNT)

Note: (060, 062)

$63.99

$

Usually ships in 4-12 days

0

Gravely 02779100

IDLER, 40" DECK PTO

Note: (064)

$

$

Not available

20

Gravely 047314

SG-TENS .093X.75X4.0 WLD40
(Superseded to 08343000)

$15.99

$

Usually ships in 4-12 days

0

21

Gravely 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 6

0

22

Gravely 05972700

SCR-SKH BTHD .31-18 X 1.50 GR8

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0
