927060 (1028) - Gravely 28" Rear-Engine Riding Mower, 10hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Frame, Hood And Seat Parts Diagram

28" Rear-Engine Riding Mower, 10hp Briggs & Stratton, Hydro

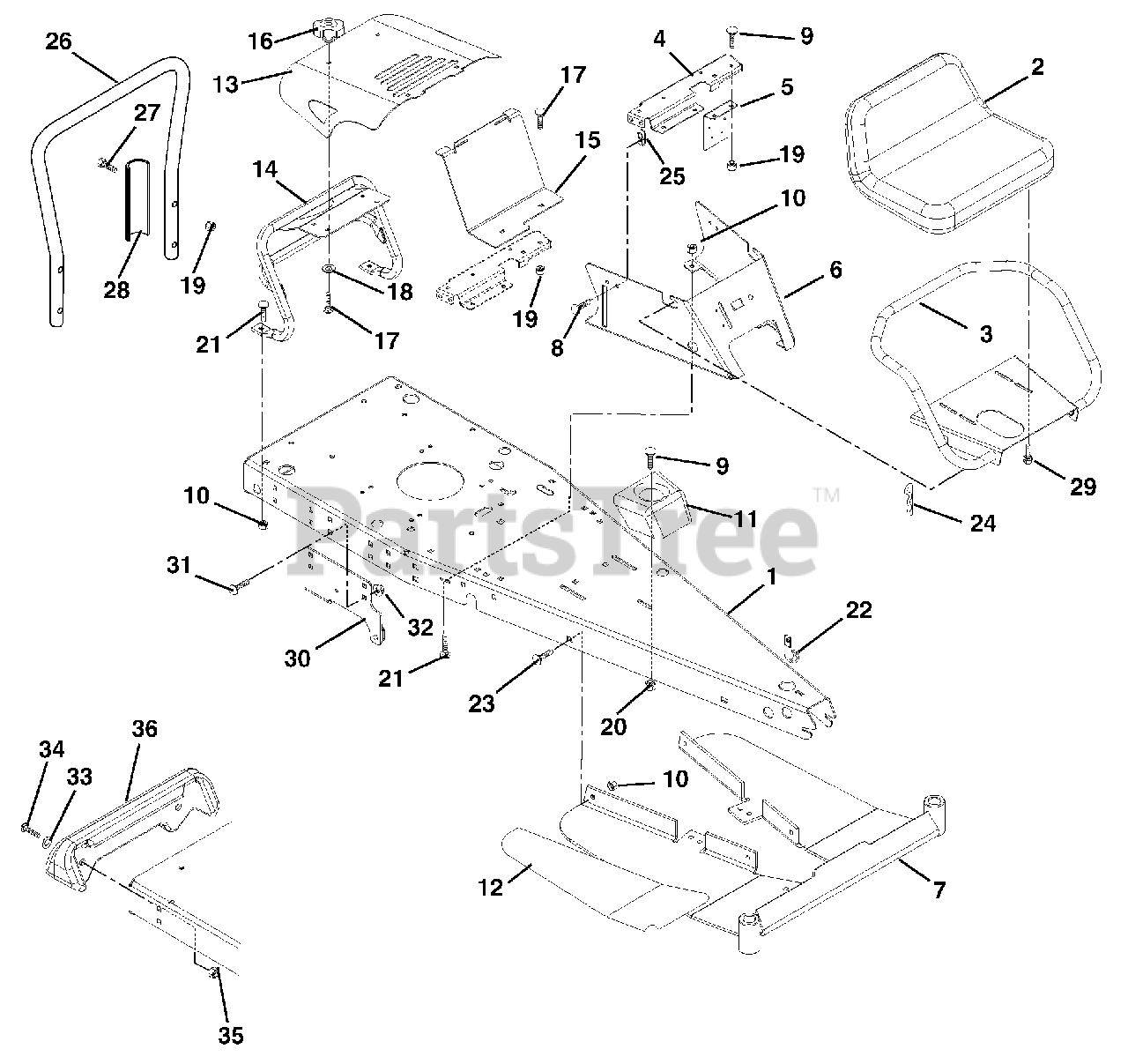

Frame, Hood And Seat Parts Diagram

  • Title

1

Gravely 02780151

FRAME,RER/SPORT-ZOOM

$

$

Not available

2

Gravely 01597000

SEAT-LOW BACK TS2300

$146.99

$

Usually ships in 4-12 days

0

3

Gravely 02775851

WLDMT, SEAT PLATE & ARMREST

$74.99

$

Usually ships in 4-12 days

0

4

Gravely 02764451

REINFORCEMENT, SEAT SUPPORT

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 02766151

PANEL-SOLENOID MOUNTING

$

$

Not available

6

Gravely 02760353

SEAT SUPPORT RER/MINI-Z-

$

$

Not available

7

Gravely 02760253

WLDMT-FOOTREST RER/MINI-Z-

$216.99

$

Usually ships in 4-12 days

0

8

Gravely 07049400

BLT-SERHFWH .25-20X.75 YWZC

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 06226700

BLT-RDHDSQNK .31-18X.75 G5BZ
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 02768500

CUP HOLDER RER

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 02771700

GRIP, RER FOOTREST (LH)

$9.49

$

Usually ships in 4-12 days

0

Gravely 02771800

GRIP, RER FOOTREST (RH)

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 02771453

HOOD ENGINE GRAVELY

Note: (064)

$

$

Not available

14

Gravely 02771651

WLDM'T TUBE

Note: (064)

$

$

Not available

15

Gravely 02771551

BRACKET-HOOD SUPPORT

Note: (064)

$

$

Not available

16

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

Note: (064)

$3.99

$

In Stock, Qty 20+

0

17

Gravely 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

Note: (064)

$2.99

$

In Stock, only 2 left!

0

18

Gravely 040380

NUT-PUSH .312
(Superseded to 06514900)

Note: (064)

$0.99

$

In Stock, Qty 9

0

19

Gravely 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

22

Gravely 036518

J-CLAMP
(Superseded to 06909400)

$3.99

$

In Stock, only 4 left!

0

23

Gravely 06226600

BLT-RDHDSQNK .38-16X1.00 G5BZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$3.49

$

In Stock, Qty 10

0

25

Gravely 032369

NUT-RTNR .25-20X.56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 02701251

TUBE

Note: (060, 062)

$43.99

$

In Stock, only 2 left!

0

27

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

Note: (060, 062)

$1.99

$

In Stock, Qty 15

0

28

Gravely 02722700

BRACE
(Superseded to 02722751)

Note: (060, 062)

$15.99

$

Usually ships in 4-12 days

0

29

Gravely 00591400

BLT-SERHFWH .31-18 X 1 YWZC

$

$

Not available

30

Gravely 02774900

BRKT, TRANS (RH-WLDMNT)

$

$

Not available

Gravely 02775000

BRKT, TRANS (LH-WLDMNT)

$

$

Not available

31

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

32

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

Note: (Optional)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

Note: (Optional)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

Note: (Optional)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 01595251

WEIGHT, SPORT-Z

Note: (Optional)

$

$

Not available
