927060 (1028) - Gravely 28" Rear-Engine Riding Mower, 10hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Gas Tanks Parts Diagram

28" Rear-Engine Riding Mower, 10hp Briggs & Stratton, Hydro

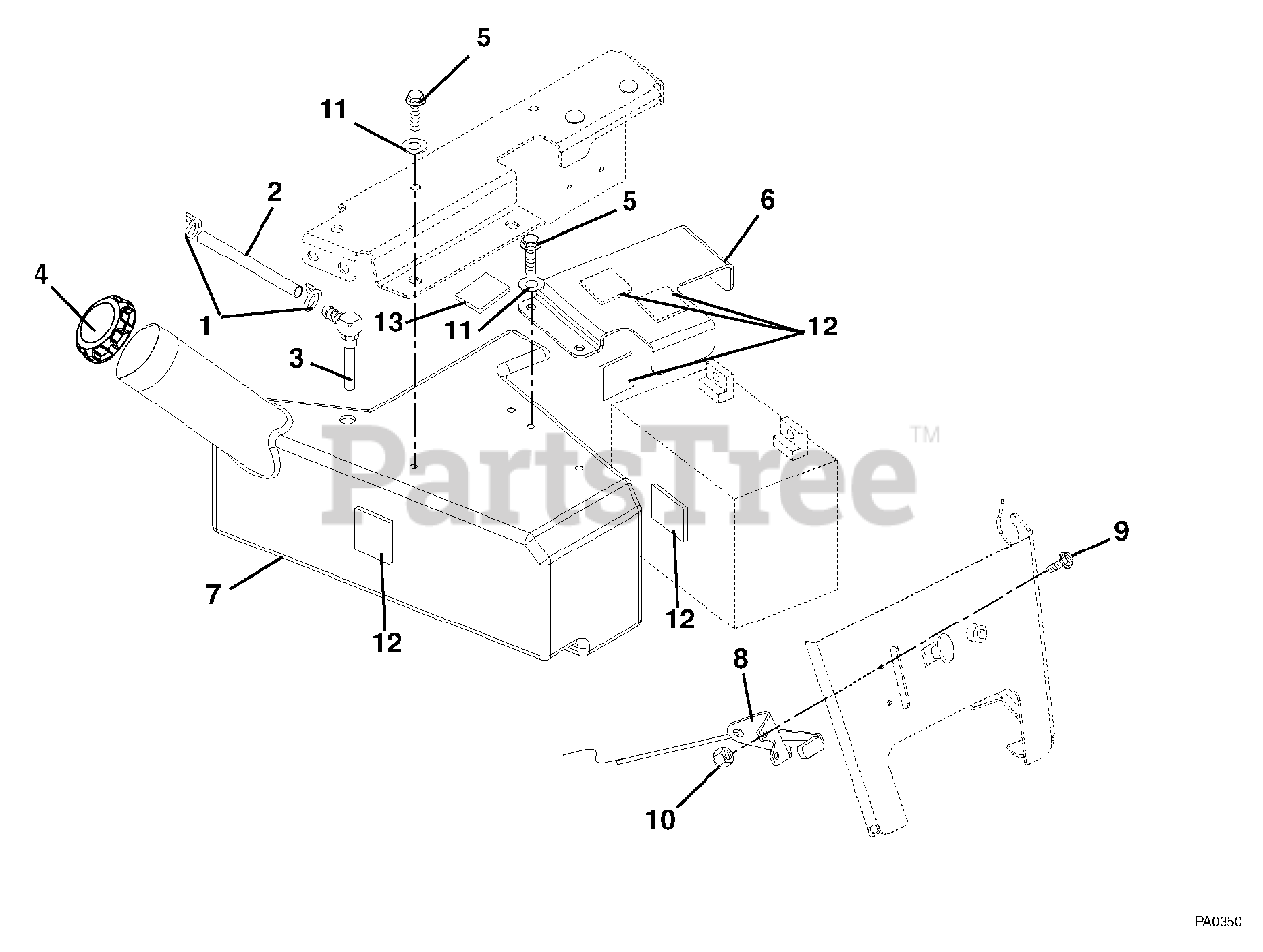

Gas Tanks Parts Diagram

  • Title

1

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

2

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03606500

TANK FITTING

$

$

Not available

4

Gravely 01538400

FUEL CAP

$16.99

$

In Stock, Qty 20+

0

5

Gravely 07049400

BLT-SERHFWH .25-20X.75 YWZC

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 02771351

BRACKET-BATTERY

$29.99

$

Usually ships in 4-12 days

0

7

Gravely 02765100

TANK-FUEL

$

$

Not available

8

Gravely 01588600

THROTTLE CABLE

$67.99

$

Usually ships in 4-12 days

0

9

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 03645700

PAD, FOAM

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 00932300

VHB TAPE 4941F

$3.99

$

Usually ships in 4-12 days

0
