927061 (1028 RER) - Ariens 28" Rear-Engine Rider, 10hp Briggs & Stratton, Hydro (SN: 010000 - 019999)

28" Rear-Engine Rider, 10hp Briggs & Stratton, Hydro

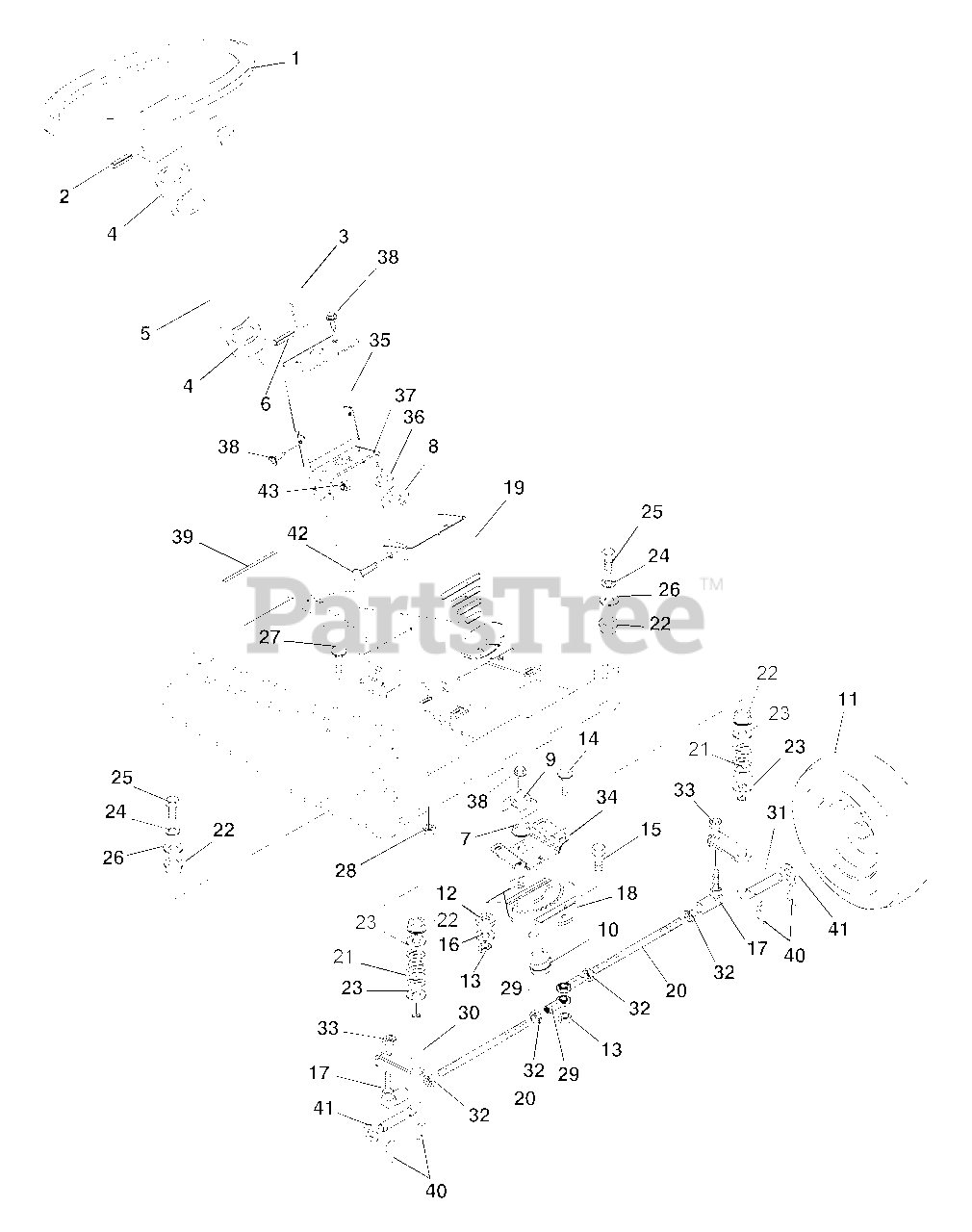

927061 (1028 RER) - Ariens 28" Rear-Engine Rider, 10hp Briggs & Stratton, Hydro (SN: 010000 - 019999) > Parts Diagrams (13) > Steering And Front Wheels

  • Title
02753700

1

STEERING WHEEL 13"

Part# 02753700

OEM Warranty Repair Part for Ariens

Not available

05803700

2

PIN-ROLL .250X1.75

Part# 05803700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02749100

3

STEERING SHAFT

Part# 02749100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $86.03

07503700

4

PLUG

Part# 07503700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02753800

5

TUBE 1.865 X 2.00 X 11.33

Part# 02753800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

05804600

6

PIN-ROLL .188X.75

Part# 05804600

OEM Warranty Repair Part for Ariens

Not available

05505300

7

BSHG-FLG .625X1.156X.375 SI

Part# 05505300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.81

06418100

8

WSHR-HDND-STL-THR.515X.97X.062

Part# 06418100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01310000

9

RETAINING PLATE

Part# 01310000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

02705400

10

PINION

Part# 02705400 (Superseded to 03841600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.25

07126400

11

T/WHL ASSY

Part# 07126400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $59.20

07108000

11

TIRE 4.10/3.50-4

Part# 07108000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.80

05505800

11

BSHG-FLG .750X1.380X.750X1.557

Part# 05505800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.99

02768400

12

STEER GEAR SPACER .38X.75X.269

Part# 02768400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06544500

13

NUT-LK-TOP-FLG .38-16 BLKZC

Part# 06544500 (Superseded to 06500726)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06226600

14

BLT-RDHDSQNK .38-16X1.00 G5BZ

Part# 06226600 (Superseded to 06223600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05958500

15

@BLT-HEX .38-16X1.75 GR5 YWZC

Part# 05958500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06442400

16

WSHR-FL-STL .406X1.375X.135 YZ

Part# 06442400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

02917100

17

BALL JOINT

Part# 02917100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

02761300

18

STEERING GEAR

Part# 02761300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.72

02775559

19

BOX, STEERING

Part# 02775559

OEM Warranty Repair Part for Ariens

Not available

02765700

20

STEERING LINK

Part# 02765700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $81.11

02765800

21

SPRING, SUSPENSION

Part# 02765800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $44.66

01591100

22

BUSHING-1"X.75"X1"

Part# 01591100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.34

06427600

23

WSHR-FL-STL .700X1.47X.134 YWZ

Part# 06427600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06308600

24

@WSHR-LK .31X.078 REG YWZC

Part# 06308600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05947000

25

@BLT-HEX .31-18X.75 GR5 YWZC

Part# 05947000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06442400

26

WSHR-FL-STL .406X1.375X.135 YZ

Part# 06442400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06227000

27

BLT-RDHDSQNK .38-16X.75 G5BZ

Part# 06227000 (Superseded to 06223900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06544400

28

NUT-LK-TOP-FLG .31-18 BLKZC

Part# 06544400 (Superseded to 06545400)

OEM Warranty Repair Part for Ariens

Not available

03563100

29

ROD END, .38 RH

Part# 03563100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.54

02765900

30

WLDMT-SPINDLE (RH)

Part# 02765900

OEM Warranty Repair Part for Ariens

Not available

02766000

31

WLDMT-SPINDLE (LH)

Part# 02766000

OEM Warranty Repair Part for Ariens

Not available

06534700

32

NUT-JAM .375-24 YWZC

Part# 06534700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06538800

33

NUT-LK-NYL .375-24 W/INSR YWZC

Part# 06538800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

02761451

34

STEERING GEAR SUPPORT

Part# 02761451

OEM Warranty Repair Part for Ariens

Not available

02771200

35

BRACKET, STEERING COLUMN

Part# 02771200

OEM Warranty Repair Part for Ariens

Not available

01212800

36

FLANGE BUSHING

Part# 01212800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

02760600

37

SUPPORT-STEERING COLUMN

Part# 02760600

OEM Warranty Repair Part for Ariens

Not available

07413400

38

SCR-TAP .312-18X.50 HWH TR BL

Part# 07413400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02769900

39

COVER, LIGHT

Part# 02769900

OEM Warranty Repair Part for Ariens

Not available

06714500

40

PIN, SPRING CLIP

Part# 06714500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06441500

41

WSHR-FL-STL.755X1.375X.062YWZC

Part# 06441500

OEM Warranty Repair Part for Ariens

Not available

06226700

42

BLT-RDHDSQNK .31-18X.75 G5BZ

Part# 06226700 (Superseded to 06200232)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06530200

43

@NUT-LK-NYL .312-18 YWZC

Part# 06530200

OEM Warranty Repair Part for Ariens

Not available
