927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Deck Lift Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

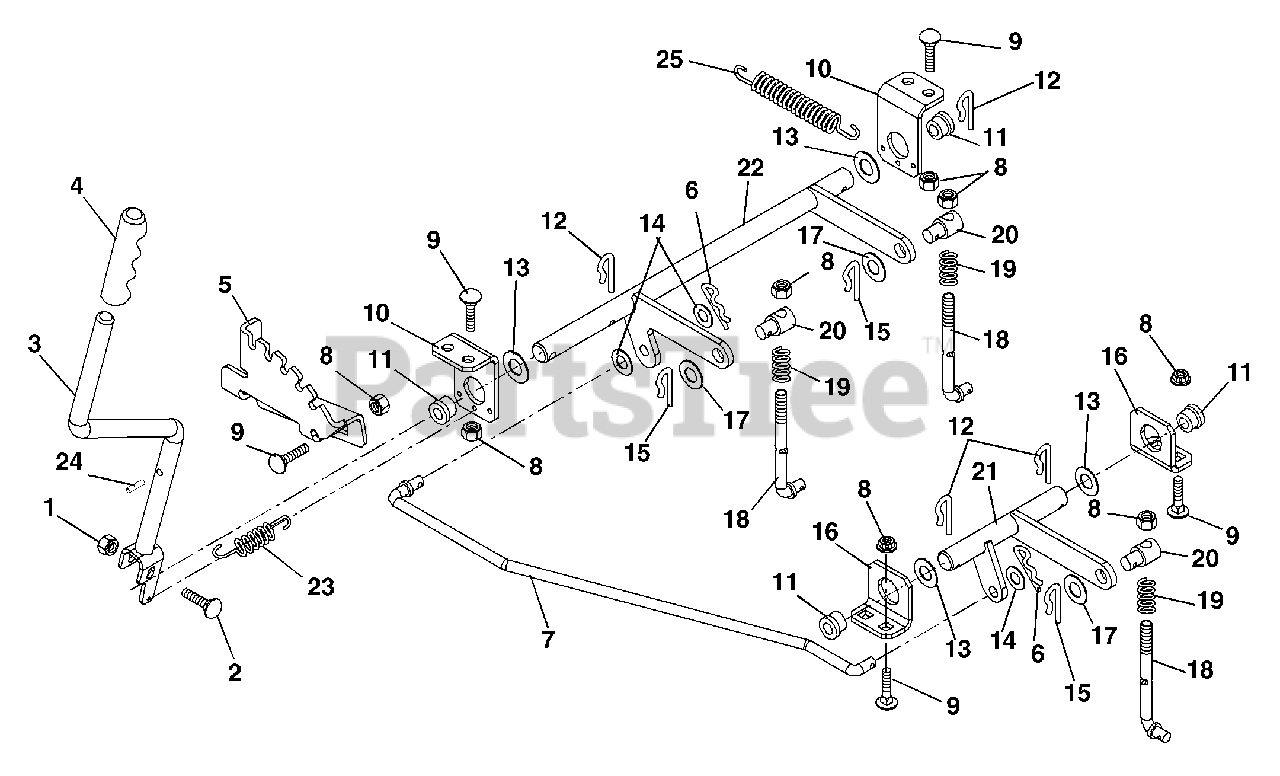

Deck Lift Parts Diagram

  • Title

1

Gravely 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

3

Gravely 02762451

WLDMT-LIFT HANDLE
(Superseded to 51511000)

$

$

Not available

4

Gravely 07527500

GRIP

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 02762300

DETENT PLATE

$

$

Not available

6

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

7

Gravely 02762900

ROD, DECK LIFT
(Superseded to 02776300)

$

$

Not available

8

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

10

Gravely 02762800

BRACKET-HANGER

$

$

Not available

11

Gravely 05503900

BSHG-FLG .750X1.000X.625X1.250

$13.99

$

In Stock, Qty 5

0

12

Gravely 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

16

Gravely 02762700

BRACKET-PIVOT

$

$

Not available

17

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 02759900

ROD-LINK

$

$

Not available

19

Gravely 039611

SPRING, COMPRESSION
(Superseded to 08300028)

$5.49

$

In Stock, Qty 20+

0

20

Gravely 01582300

TRUNNION

$46.99

$

Usually ships in 4-12 days

0

21

Gravely 02762500

WMT, FRONT LIFT

$

$

Not available

22

Gravely 02762600

WMT, REAR LIFT

$

$

Not available

23

Gravely 08333900

SPRING, EXTENSION

$

$

Not available

24

Gravely 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

25

Gravely 08311000

SG-TENS .080X.687X5.16 WLD 28

$15.99

$

In Stock, only 4 left!

0
