927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Electrical System Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

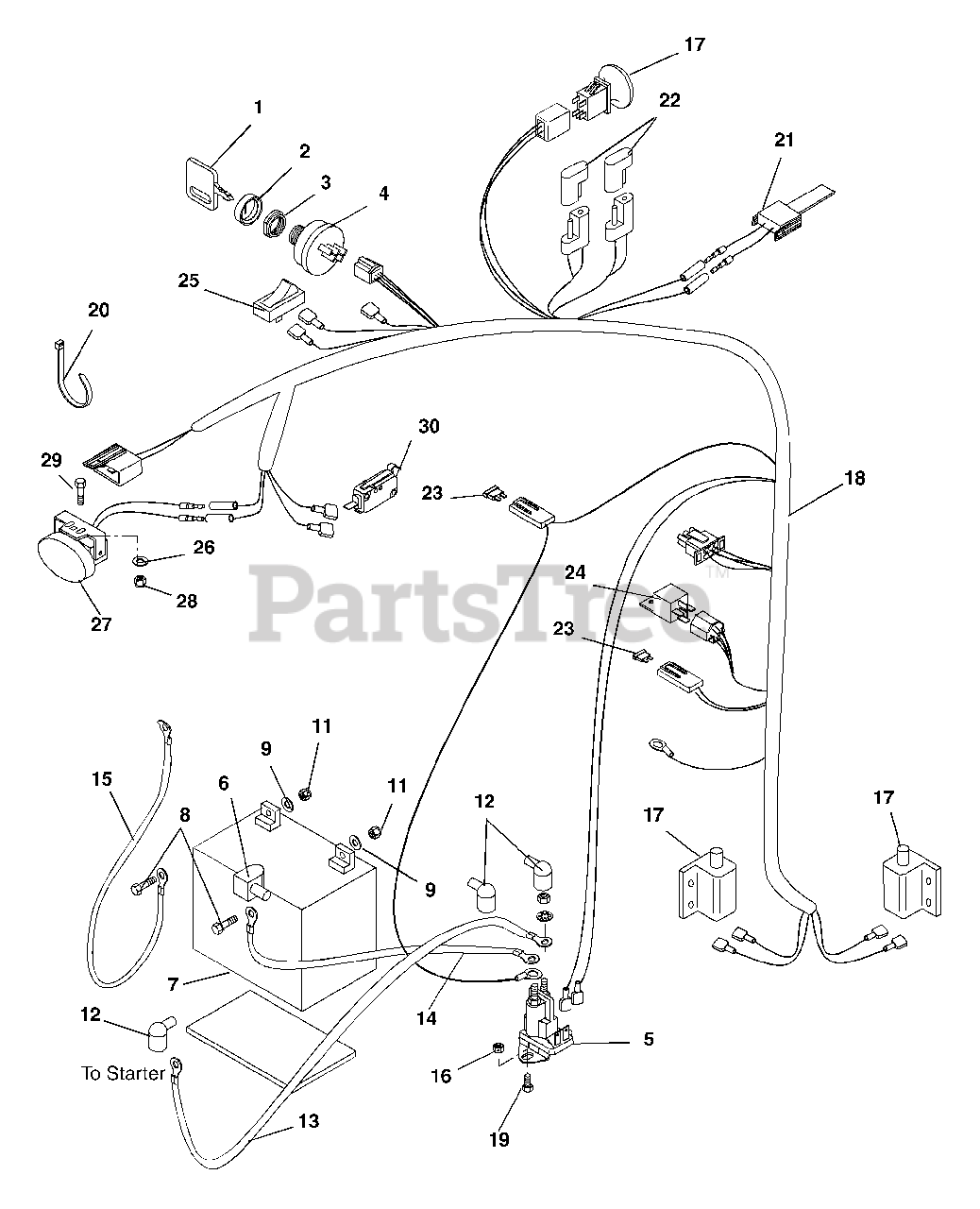

Electrical System Parts Diagram

  • Title

1

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 16

0

2

Gravely 045490

Cap, Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

3

Gravely 045489

Nut, Panel .625-32
(Superseded to 06517400)

$13.99

$

In Stock, only 1 left!

0

4

Gravely 01563700

Key Switch

$34.99

$

In Stock, only 1 left!

0

5

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 13

0

6

Gravely 039619

Insulator
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

7

Gravely 01554800

Battery, Filled

$

$

Not available

8

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

9

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

10

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

11

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

12

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 3 left!

0

13

Gravely 02743300

Cable, Positive Battery
(Superseded to 03287200)

$17.99

$

In Stock, only 3 left!

0

14

Gravely 02727200

Starter Cable 13"
(Superseded to 02727201)

$20.99

$

In Stock, only 1 left!

0

15

Gravely 02727900

Starter Cable 16"

$35.99

$

Usually ships in 4-12 days

0

16

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 2 left!

0

17

Gravely 01545600

Switch, Clutch With Retainer

$23.99

$

In Stock, Qty 19

0

18

Gravely 02765600

Harness, Rear Engine Rider

$

$

Not available

19

Gravely 07412100

Screw, Tapping 10-24 x .375 Hex Washer Head

$0.99

$

Usually ships in 4-12 days

0

20

Gravely 07517300

Cable Tie

$

$

Not available

21

Gravely 036121

Switch, Seat
(Superseded to 03171600)

$

$

Not available

22

Gravely 03081700

Molded Diode Plug 1 AMP

$26.99

$

In Stock, only 1 left!

0

23

Gravely 09351100

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 9

0

24

Gravely 040216

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

25

Gravely 03656800

Switch, Light

$

$

Not available

26

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

27

Gravely 01588200

Light

$

$

Not available

28

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

30

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available
