927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Engine Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

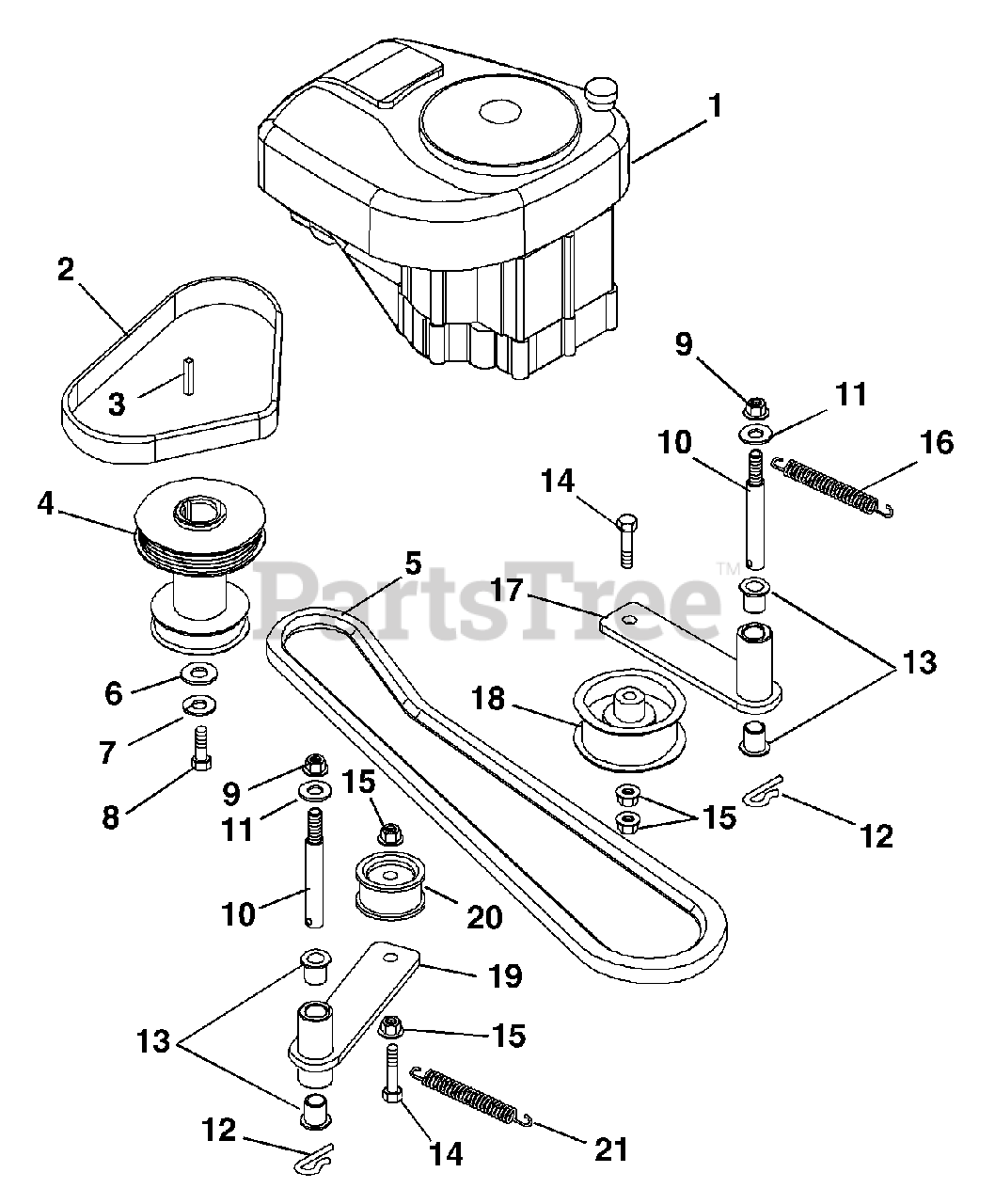

Engine Parts Diagram

  • Title

1

Gravely 52710400

GROUP-ENG 12HP INTEK AVS

$

$

Not available

2

Gravely 07240600

POLY V-BELT, K-5 RIBS

Note: (Hydro)

$39.99

$

Usually ships in 4-12 days

0

3

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 02764900

PULLEY DRIVE (HYDRO)

Note: (Hydro)

$

$

Not available

5

Gravely 02768100

BELT-PTO

$

$

Not available

6

Gravely 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

$7.49

$

In Stock, only 2 left!

0

7

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 05967500

BLT-HEX .44-20X1.75 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 03622900

SHOULDER STUD

$35.99

$

In Stock, only 2 left!

0

11

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

13

Gravely 02771900

BUSHING, IGUS -.625X.5X.75

$

$

Not available

14

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

15

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 08311000

SG-TENS .080X.687X5.16 WLD 28

$15.99

$

In Stock, only 4 left!

0

17

Gravely 02773100

BRACKET, PTO IDLER (WLDMNT)

$

$

Not available

18

Gravely 07318400

IDLER 2.75X1.25

$23.99

$

In Stock, only 3 left!

0

19

Gravely 02773000

BRACKET, POLY-V IDLER (WLDMNT)

$

$

Not available

20

Gravely 07326500

IDLER - FLAT 1.875OD X .75WIDE

$26.99

$

In Stock, only 4 left!

0

21

Gravely 08537800

COUPLING

$131.99

$

Usually ships in 4-12 days

0
