927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Frame, Hood And Seat Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

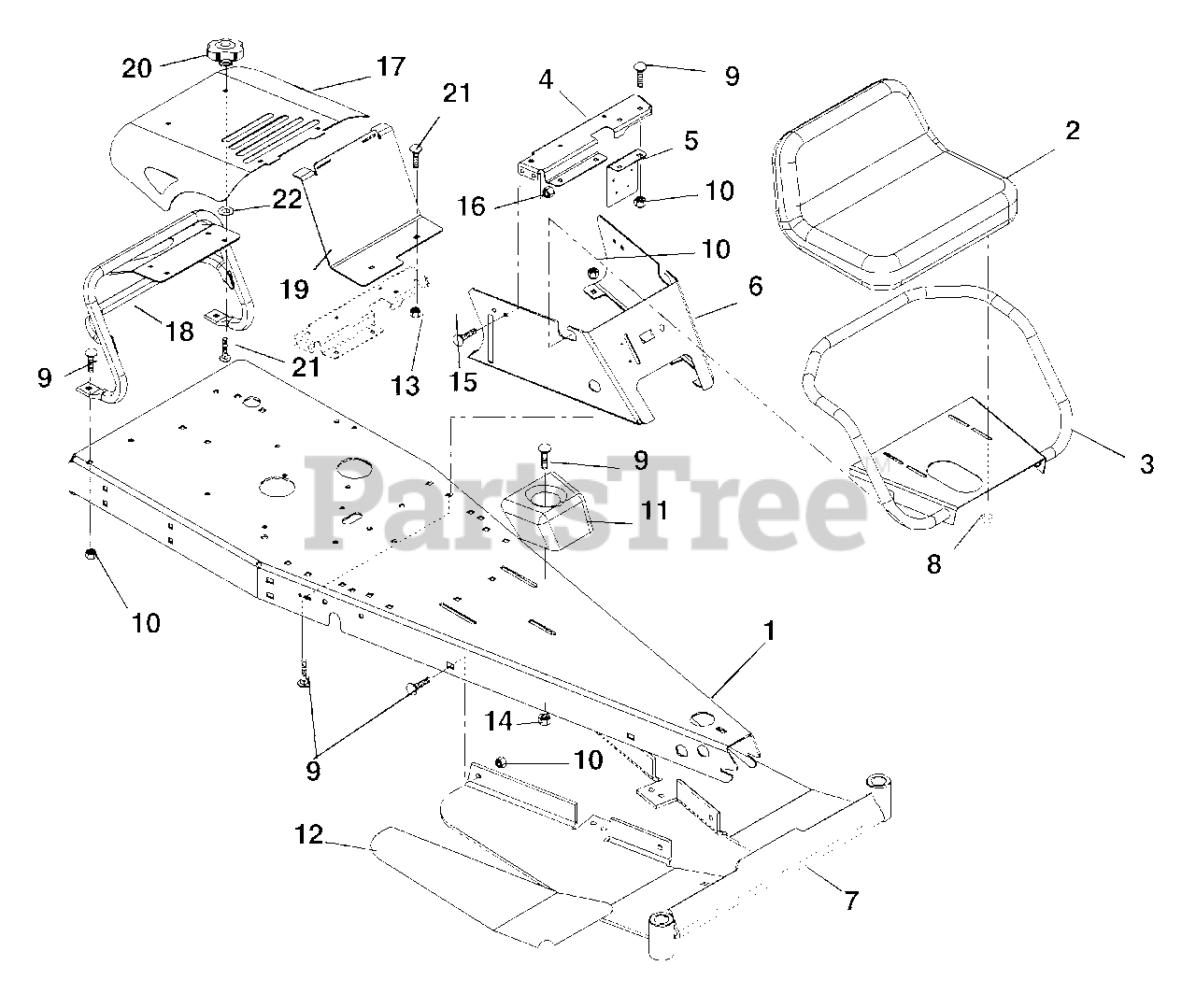

Frame, Hood And Seat Parts Diagram

  • Title

1

Gravely 02760151

FRAME-RER/MINI-Z-

$

$

Not available

2

Gravely 02755200

SEAT V-1300 LOW WELTLESS

$

$

Not available

3

Gravely 02760551

WLDMT-SEAT MOUNT/BAR

$

$

Not available

4

Gravely 02764451

REINFORCEMENT, SEAT SUPPORT

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 02766151

PANEL-SOLENOID MOUNTING

$

$

Not available

6

Gravely 02760353

SEAT SUPPORT RER/MINI-Z-

$

$

Not available

7

Gravely 02760253

WLDMT-FOOTREST RER/MINI-Z-

$216.99

$

Usually ships in 4-12 days

0

8

Gravely 07049600

BLT-SERHFWH .312-18X.75 YWZC

$2.99

$

In Stock, Qty 5

0

9

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

10

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 02768500

CUP HOLDER RER

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 02771700

GRIP, RER FOOTREST (LH)

$9.49

$

Usually ships in 4-12 days

0

Gravely 02771800

GRIP, RER FOOTREST (RH)

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$1.49

$

In Stock, only 3 left!

0

16

Gravely 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

17

Gravely 02771453

HOOD ENGINE GRAVELY

$

$

Not available

18

Gravely 02771651

WLDM'T TUBE

$

$

Not available

19

Gravely 02771551

BRACKET-HOOD SUPPORT

$

$

Not available

20

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

21

Gravely 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.99

$

In Stock, only 2 left!

0

22

Gravely 040380

NUT-PUSH .312
(Superseded to 06514900)

$0.99

$

In Stock, Qty 9

0
