927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Rear Wheel And Hydro Drive Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

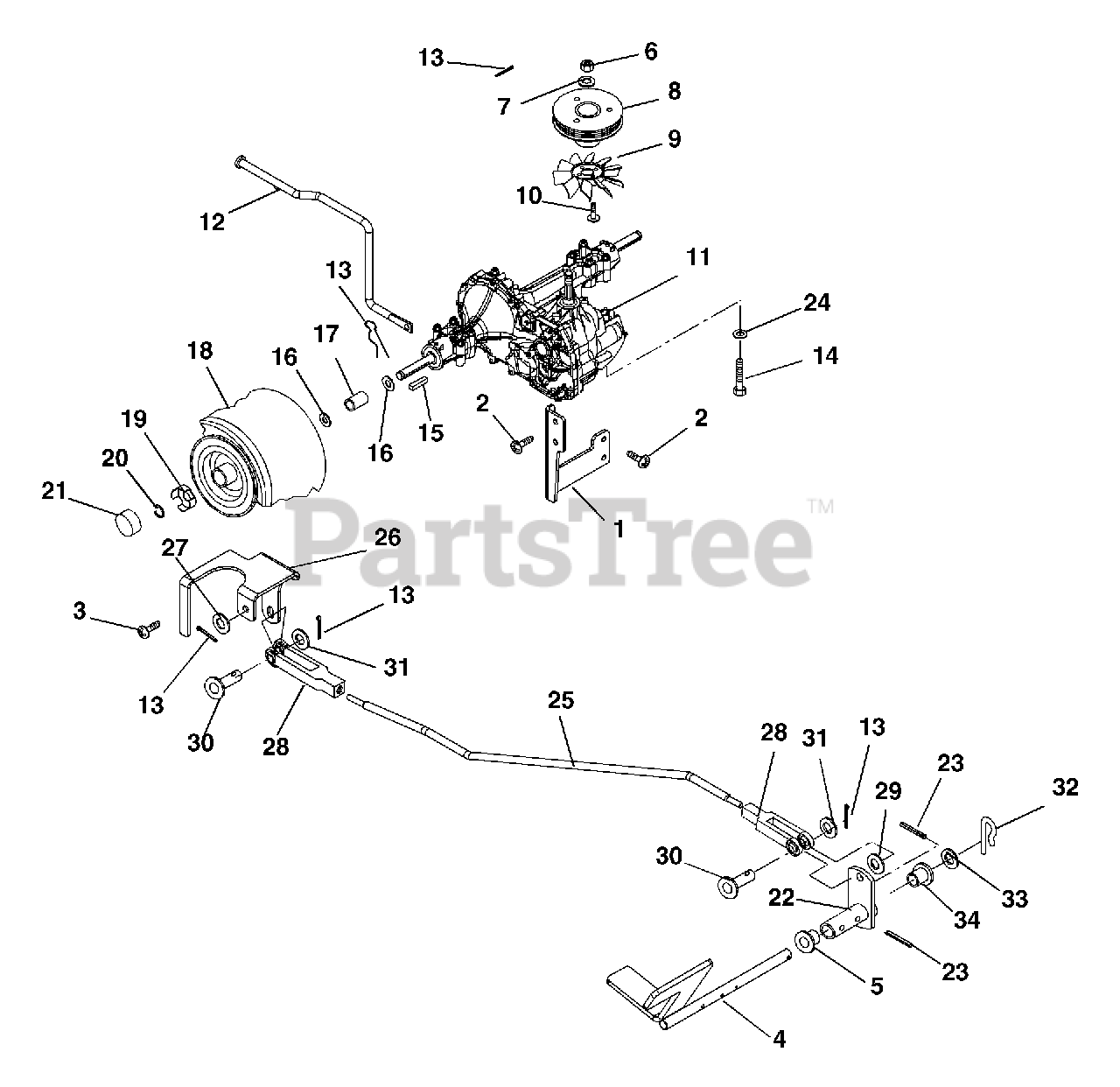

Rear Wheel And Hydro Drive Parts Diagram

  • Title

1

Gravely 02761200

TRANS SUPPORT - RER HYDRO

$

$

Not available

2

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 02761600

WLDMT-FOR&REV PEDAL
(Superseded to 02792000)

$

$

Not available

5

Gravely 05520600

BSHG-FLG .502X1X.750

$9.99

$

In Stock, only 2 left!

0

6

Gravely 06539500

NUT-JAM .50-20 GR2 YWZC

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 02765000

PULLEY TRANS (RER HYDRO)

$

$

Not available

9

Gravely 02772600

FAN-6IN

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 07406900

SCR-TAP 10-24X.484 HWH TR

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 03693200

TRANSAXLE, HYDRO (510)

$

$

Not available

12

Gravely 02764800

ROD TRANS DISC RER HYDRO

$

$

Not available

13

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

14

Gravely 05960600

BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, Qty 6

0

15

Gravely 036282

KEY-SQ .188X2.0X.188 SAE 8630
(Superseded to 06601900)

$

$

Not available

16

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

17

Gravely 02765400

SPACER WHEEL .75X1.0X1.25
(Superseded to 05510400)

$

$

Not available

18

Gravely 02765300

ASSY-TIRE&WHEEL 16 X 6.5 X8

$

$

Not available

Gravely 039653

TIRE 16X6.50-8 2 PLY
(Superseded to 07102100)

$61.99

$

Usually ships in 4-12 days

0

19

Gravely 036277

SPINDLE CUP
(Superseded to 03516900)

$19.99

$

In Stock, only 2 left!

0

20

Gravely 036278

RG-RTNG-EXT .750X.050
(Superseded to 05707400)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 036202

HUB CAP
(Superseded to 00337700)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 02761700

WLMDT-SHIFT ROD & HUB

$

$

Not available

23

Gravely 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 20+

0

24

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 02764500

ROD-SHIFT RER HYDRO

$

$

Not available

26

Gravely 02761951

BRACKET-SHIFT ROD

$

$

Not available

27

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 034633

YOKE, .312-24 X 2.25
(Superseded to 07014700)

$15.99

$

Usually ships in 4-12 days

0

29

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

30

Gravely 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$

$

Not available

31

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

32

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

33

Gravely 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.99

$

In Stock, Qty 20+

0

34

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0
