927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 000400 - 009999) Deck 28" And 32", Idlers And Blades Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

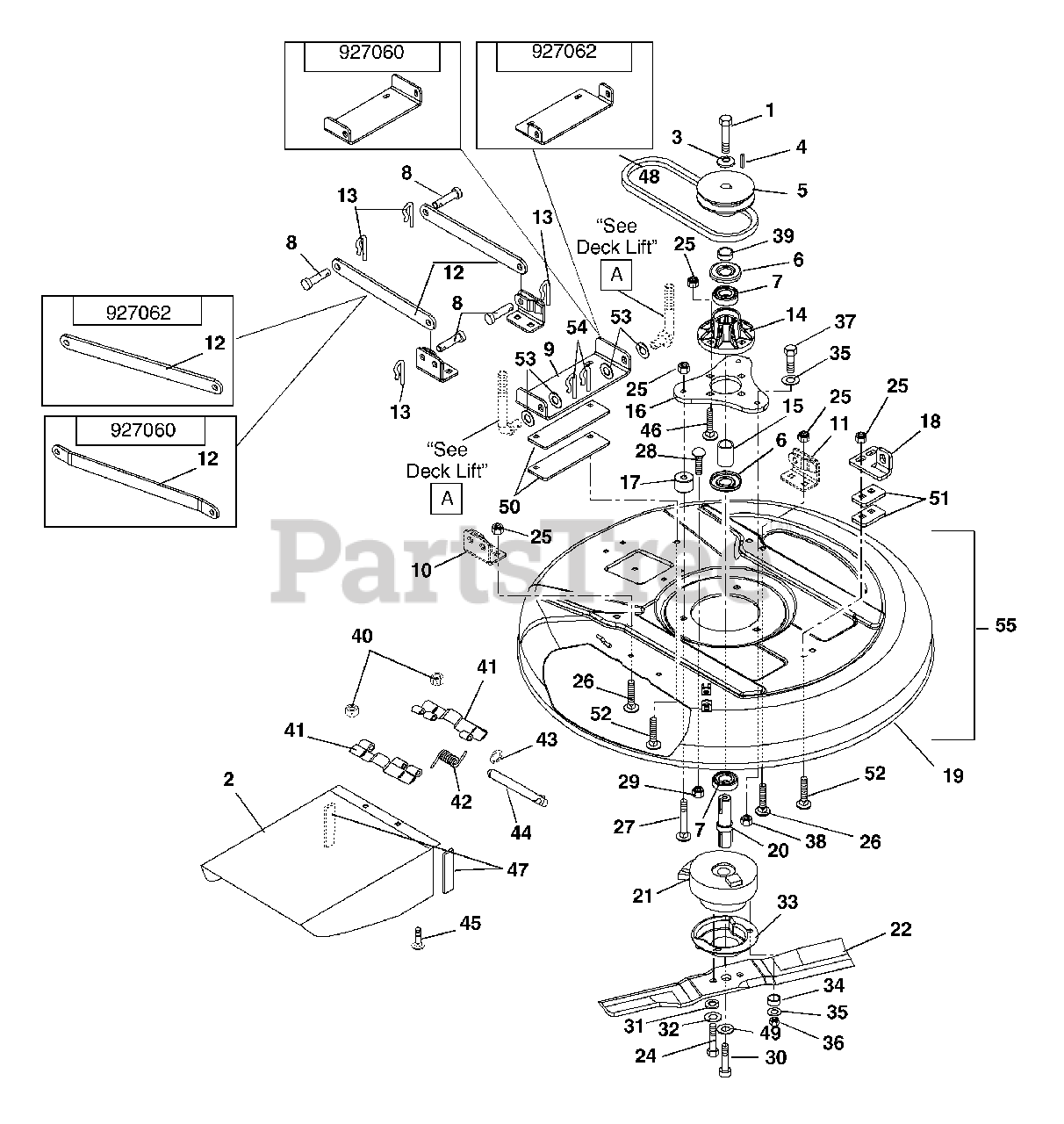

Deck 28" And 32", Idlers And Blades Parts Diagram

  • Title

1

Gravely 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 02776051

CHUTE-28" DECK

Note: (060)

$47.99

$

Usually ships in 4-12 days

0

Gravely 02773551

CHUTE-32" DECK

Note: (062)

$114.99

$

Usually ships in 4-12 days

0

3

Gravely 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

4

Gravely 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

5

Gravely 51512000

KIT, 28" CUTTING IMPROVEMENT

Note: 51512000 includes belt p/n 07243300 and pulley p/n 01610400.

$137.99

$

Usually ships in 4-12 days

0

Gravely 01610400

SHEAVE, 4.25 DIA A-SECTION

Note: (060) (SN = 2000 and up)

$46.99

$

Usually ships in 4-12 days

0

Gravely 51512100

KIT, 32" CUTTING IMPROVEMENT

Note: 51512100 includes belt p/n 07242200 and pulley p/n 01610300.

$149.99

$

In Stock, only 1 left!

0

Gravely 01610300

SHEAVE, 4.75 DIA A-SECTION
(Superseded to 07330267)

Note: (062) (SN = 1500 and up)

$53.99

$

In Stock, Qty 17

0

6

Gravely 01572700

BEARING SLINGER

$

$

Not available

7

Gravely 032050

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05400722)

$19.99

$

In Stock, Qty 20+

0

8

Gravely 06817400

PIN-CLEV .494X1.00 BLKZC

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 02780651

BRKT, REAR HANGER (28" DECK)

Note: (060)

$

$

Not available

Gravely 02780351

BRKT, FRONT LIFT (32" DECK)

Note: (062)

$

$

Not available

10

Gravely 02767451

BKT-DECK LINK RH

Note: (060)

$

$

Not available

Gravely 02763751

WLDMT-DECK LINK (RH)

Note: (062)

$

$

Not available

11

Gravely 02763751

WLDMT-DECK LINK (RH)

Note: (060)

$

$

Not available

Gravely 02763851

WLDMT-DECK LINK (LH)

Note: (062)

$

$

Not available

12

Gravely 02767651

STABILIZER LINK 28"

Note: (Right Hand Only) (060)

$

$

Not available

Gravely 02764351

LINK STABILIZER 32"

Note: (060)

$

$

Not available

Gravely 02764351

LINK STABILIZER 32"

$

$

Not available

13

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

14

Gravely 62727400

ASSY-SPINDLE HSG

$186.99

$

Usually ships in 4-12 days

0

15

Gravely 01590500

SPACER, 1.001 X 1.25 X 1.76

$7.49

$

Usually ships in 4-12 days

0

16

Gravely 02764251

SPINDLE MOUNT PLATE

$85.99

$

Usually ships in 4-12 days

0

17

Gravely 02763100

SPACER-MOUNTING PLATE

$

$

Not available

18

Gravely 02780751

BRKT, FRONT HANGER (28" DECK)

Note: (060)

$

$

Not available

Gravely 02780351

BRKT, FRONT LIFT (32" DECK)

Note: (062)

$

$

Not available

19

Gravely 02767951

WLDMT-28" DECK RER

Note: (060)

$

$

Not available

Gravely 02764151

WLDMT-32" DECK

Note: (062)

$

$

Not available

20

Gravely 02774300

SHAFT, 28" AND 32" INPUT

$158.99

$

Usually ships in 4-12 days

0

21

Gravely 52711800

KIT, CLUTCH (1028 RER)

Note: 52711800 contains belt p/n 07221000.

$

$

Not available

Gravely 52711900

KIT, CLUTCH (1232 RER)

Note: 52711900 contains belt p/n 07241400.

$941.99

$

Usually ships in 4-12 days

0

22

Gravely 01600600

BLADE-CUTTING 28"

Note: (060)

$27.99

$

In Stock, only 2 left!

0

23

Gravely 02774500

BLADE, 32" RER/ZS

Note: (062)

$

$

Not available

24

Gravely 05979600

BLT-HEX M10X1.25X30 CLS 10.9

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

27

Gravely 06226800

BLT-RDHDSQNK .38-16X2.25 G5BZ
(Superseded to 06213400)

$4.99

$

In Stock, Qty 11

0

28

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

29

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 05979800

SCR-SKN .5-20X1.25 BTNHD

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 06304600

WSHR-LK M 10MM YZ

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

33

Gravely 02774600

SHIELD, DEBRIS

$73.99

$

Usually ships in 4-12 days

0

34

Gravely 00520100

BSHG, SPCR .752X.877X.50 BRZ

$

$

Not available

35

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

37

Gravely 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, Qty 20+

0

38

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 022501

SPACER 1.008X1.377X.509 ST
(Superseded to 08524600)

$

$

Not available

40

Gravely 06527600

NUT-LK-FLG .250-20 PL BLK

$1.49

$

In Stock, Qty 5

0

41

Gravely 02709500

HINGE PLATE
(Superseded to 02709551)

$28.99

$

In Stock, only 4 left!

0

42

Gravely 040368

SG-TORS .090X.37X.63
(Superseded to 08314500)

$15.99

$

In Stock, only 1 left!

0

43

Gravely 05706300

RG-RTNG-EXT .312X.025

$0.99

$

In Stock, Qty 11

0

44

Gravely 03624200

PIN

$54.99

$

In Stock, only 2 left!

0

45

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

47

Gravely 00910400

TRIM BULK

$

$

Not available

48

Gravely 51512000

KIT, 28" CUTTING IMPROVEMENT

Note: 51512000 includes belt p/n 07243300 and pulley p/n 01610400.

$137.99

$

Usually ships in 4-12 days

0

Gravely 07243300

V-BELT, HA-WRAPPED
(Superseded to 07200610)

Note: Use belt p/n 07241400 if clutch kit 52711900 is installed.

$47.99

$

In Stock, Qty 12

0

Gravely 07242400

V-BELT, HA-WRAPPED
(Superseded to 51512100)

Note: Use belt p/n 07241400 if clutch kit 52711900 is installed.

$149.99

$

In Stock, only 1 left!

0

Gravely 07243200

V-BELT HA, 62.1
(Superseded to 07242200)

Note: (062) (SN = 1500 and up)

$50.99

$

In Stock, Qty 14

0

49

Gravely 06447700

WASHER, FLT STL .5X1.75X.187

$3.99

$

Usually ships in 4-12 days

0

50

Gravely 02780851

PLATE, 32" REAR HANGER SPACER

$

$

Not available

51

Gravely 02780951

PLATE, 32" FRONT HANGER SPCR

$

$

Not available

52

Gravely 06227700

BLT-RDHDSQNK .38-16X1.25 BKZC
(Superseded to 06224100)

$2.99

$

In Stock, Qty 20+

0

53

Gravely 06441800

WSHR-FL-STL .518X2.0X.105 YWZC
(Superseded to 06401127)

$3.99

$

In Stock, only 1 left!

0

54

Gravely 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

55

Gravely 52711400

KIT, 28" DECK ASSY SERVICE

Note: (060)

$

$

Not available

Gravely 52711300

KIT, 32" DECK ASSY SERVICE

Note: (062)

$

$

Not available
