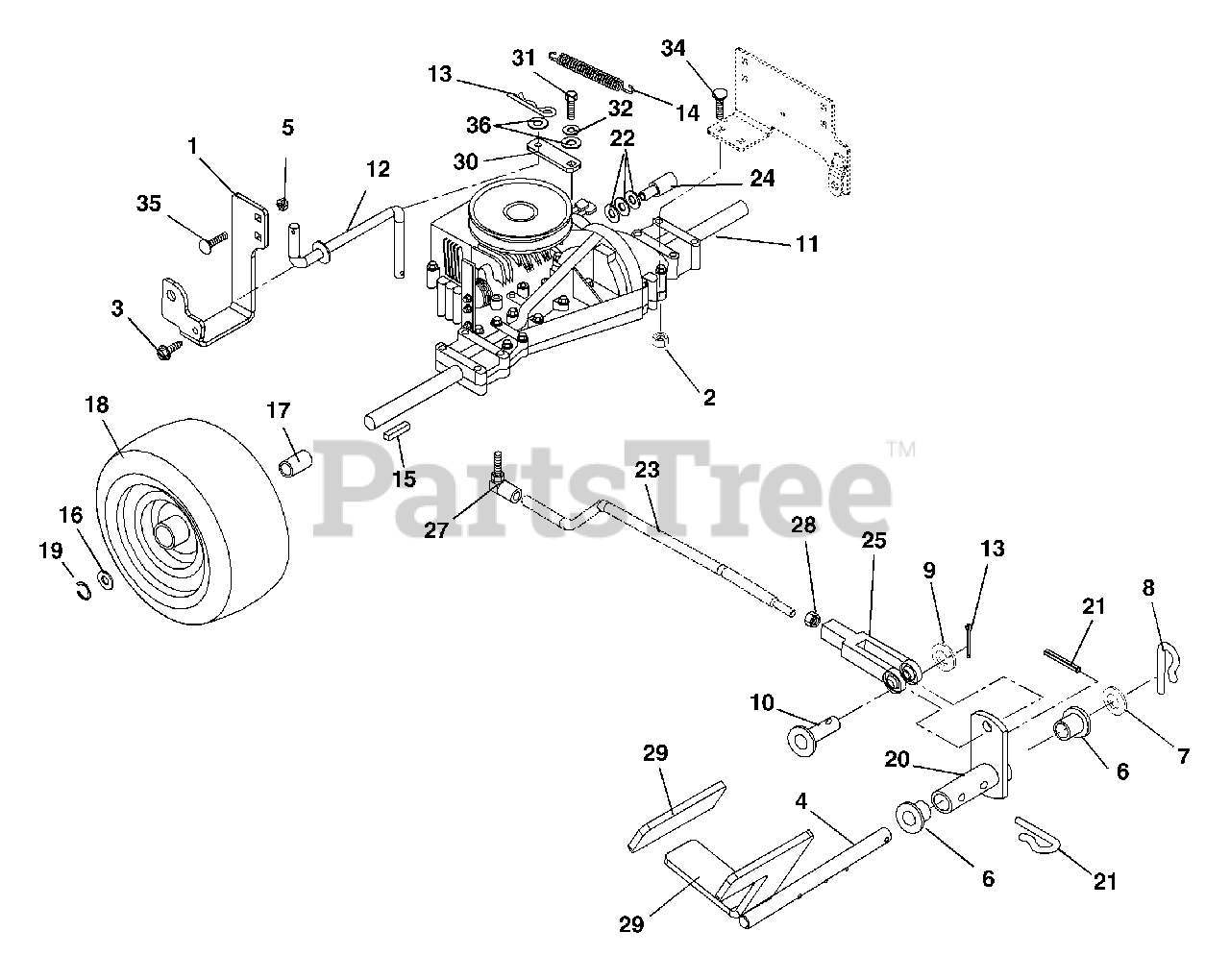

927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 000400 - 009999) Rear Wheel And Hydro Drive Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

Rear Wheel And Hydro Drive Parts Diagram

  • Title

1

Gravely 02775100

Support, Transmission

$

$

Not available

2

Gravely 06514400

Nut, Flange .50-13

$

$

Not available

3

Gravely 07414400

Screw-Tapping .31-18 x .75 Hex Washer Head
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

4

Gravely 02761600

Weldment, Forward and Reverse Pedal
(Superseded to 02792000)

$

$

Not available

5

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 034738

Bushing, Flange .515 x .75 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, Qty 9

0

7

Gravely 06439200

Washer, Flat Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, only 2 left!

0

9

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

10

Gravely 06811800

Pin, Clevis .31 x .822
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 02776800

Transmission Peerless Hydro

$

$

Not available

12

Gravely 02775300

Rod, Transmission Disconnect

$

$

Not available

13

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

14

Gravely 08321100

Spring, Tension .043 x .44 x 3.31

$6.49

$

In Stock, Qty 19

0

15

Gravely 036282

Key, Square .188 x 2.0 x .188
(Superseded to 06601900)

$

$

Not available

16

Gravely 06444200

Washer, Flat Steel .755 x 1.25 x .125
(Superseded to 06441500)

$3.99

$

In Stock, Qty 16

0

17

Gravely 02765400

Spacer, Wheel .75 x 1.00 x 1.25
(Superseded to 05510400)

$

$

Not available

18

Gravely 02765300

Assembly, Tire and Wheel 16 x 6.5 x 8 (060, 062)

Note: (060, 062)

$

$

Not available

18

Gravely 07159000

Assembly, Tire and Wheel 480 x 8 (064)

Note: (064)

$

$

Not available

18

Gravely 039653

Tire 16 x 6.50-8 2 Pulley
(Superseded to 07102100)

$79.99

$

Usually ships in 4-12 days

0

19

Gravely 036278

Ring, Retaining External .75 x .05
(Superseded to 05707400)

$2.49

$

In Stock, only 3 left!

0

20

Gravely 02761700

Weldment, Shift Rod and Hub

$

$

Not available

21

Gravely 06707100

Pin, Center .12 x 1.00 Extended Prong Square Cut

$0.99

$

In Stock, Qty 12

0

22

Gravely 06439200

Washer, Flat, Steel .50 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 02776600

Rod, Rear Engine Rider Shift

$

$

Not available

24

Gravely 01582300

Trunnion

$45.99

$

Usually ships in 4-12 days

0

25

Gravely 034633

Yoke .31-24 x 2.250
(Superseded to 07014700)

$14.99

$

In Stock, only 1 left!

0

26

Gravely 06444300

Washer, Flat Steel .390 x .750 x .125

$7.99

$

In Stock, Qty 9

0

27

Gravely 02917100

Ball Joint

$23.99

$

In Stock, Qty 14

0

28

Gravely 06538800

Nut-Locking-Nylon .375-24 With Insert

$1.99

$

In Stock, only 4 left!

0

29

Gravely 02773900

Grip, Pedal

$12.99

$

In Stock, only 1 left!

0

30

Gravely 02781600

Tab, Transmission Disconnect

$

$

Not available

31

Gravely 05952300

Bolt-Hex .25-28 x .75 Grade 5

$1.99

$

Usually ships in 4-12 days

0

32

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

33

Gravely 06437500

Washer, Flat Steel .328 x 1.00 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

34

Gravely 06219400

Bolt, Round Head Square Neck .31-18 x 2.50 Grade 5
(Superseded to 06200409)

$3.49

$

Usually ships in 4-12 days

0

35

Gravely 06227000

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

36

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0
