927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 020000 & Above)

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

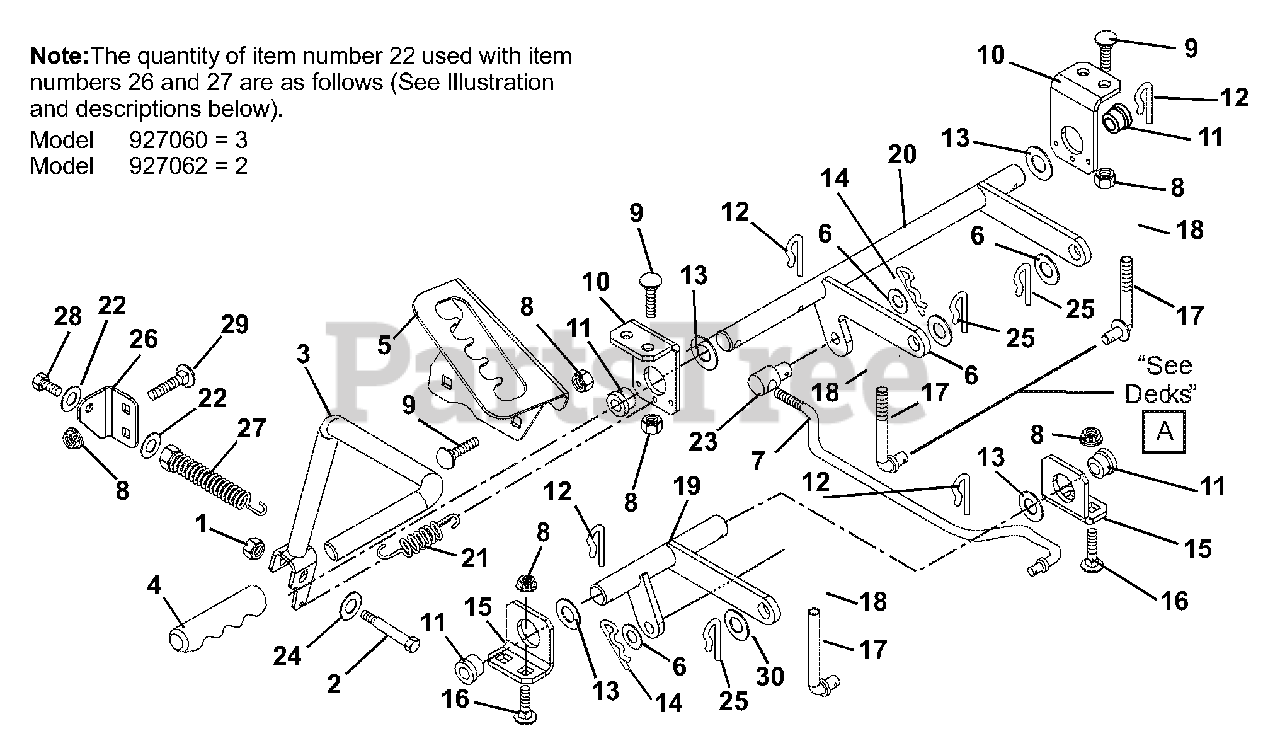

927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 020000 & Above) > Parts Diagrams (13) > Deck Lift

  • Title
06544400

1

Nut, Locking Top Flange .31-18

Part# 06544400 (Superseded to 06545400)

OEM Warranty Repair Part for Gravely

Not available

05980300

2

Bolt, 1.25 Socket Shoulder Plain

Part# 05980300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01606851

3

Weldment, Lift Handle

Part# 01606851 (Superseded to 01606800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

07527500

4

Grip

Part# 07527500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

01607351

5

Detent Plate

Part# 01607351

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.60

06436400

6

Washer, Flat Steel .511 x 1.44 x .125

Part# 06436400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

02776300

7

Rod, Deck Lift

Part# 02776300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $30.69

06544500

8

Nut, Locking Top Flange .38-16

Part# 06544500 (Superseded to 06500726)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06227000

9

Bolt, Round Head Square Neck .38-16 x .75 Grade 5

Part# 06227000 (Superseded to 06223900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

02762800

10

Bracket, Lift

Part# 02762800

OEM Warranty Repair Part for Gravely

Not available

05503900

11

Bushing, Flange .75 x 1.00 x .625 x 1.25

Part# 05503900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65

06714500

12

Pin, Spring Clip

Part# 06714500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06443900

13

Washer, Flat Steel .563 x 1.38 x .109

Part# 06443900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06714900

14

Pin, Hair #16

Part# 06714900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

02762700

15

Bracket, Deck Pivot

Part# 02762700

OEM Warranty Repair Part for Gravely

Not available

06226600

16

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5

Part# 06226600 (Superseded to 06223600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

02778100

17

Rod, Link (060, 062)

Part# 02778100

Note: (060, 062)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

01590400

18

Trunnion (030)

Part# 01590400

Note: (030)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $22.30

02762500

19

Weldment, Front Lift (060, 062)

Part# 02762500

Note: (060, 062)

OEM Warranty Repair Part for Gravely

Not available

02762600

20

Weldment, Lift

Part# 02762600

OEM Warranty Repair Part for Gravely

Not available

08333900

21

Spring, Extension

Part# 08333900

OEM Warranty Repair Part for Gravely

Not available

06443800

22

Washer, Flat Steel .43 x 1.00 x .16 (060)

Part# 06443800

Note: (060)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06443800

22

Washer, Flat Steel .43 x 1.00 x .16 (062)

Part# 06443800

Note: (062)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02779500

23

Pivot, Rod

Part# 02779500

OEM Warranty Repair Part for Gravely

Not available

06443800

24

Washer, Flat Steel .43 x 1.00 x .160

Part# 06443800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06944800

25

Clip, Spring

Part# 06944800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

01606551

26

Bracket, Spring Anchor

Part# 01606551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

08354300

27

Spring, Tension .195 x 1.15 x 5.50

Part# 08354300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

05957900

28

Bolt-Hex .38-16 x 1.50 Grade 5

Part# 05957900

OEM Warranty Repair Part for Gravely

Not available

06227000

29

Bolt, Round Head Square Neck .38-16 x .75 Grade 5

Part# 06227000 (Superseded to 06223900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06442000

30

Washer, Flat Steel .563 x 1.38 x .109

Part# 06442000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18
