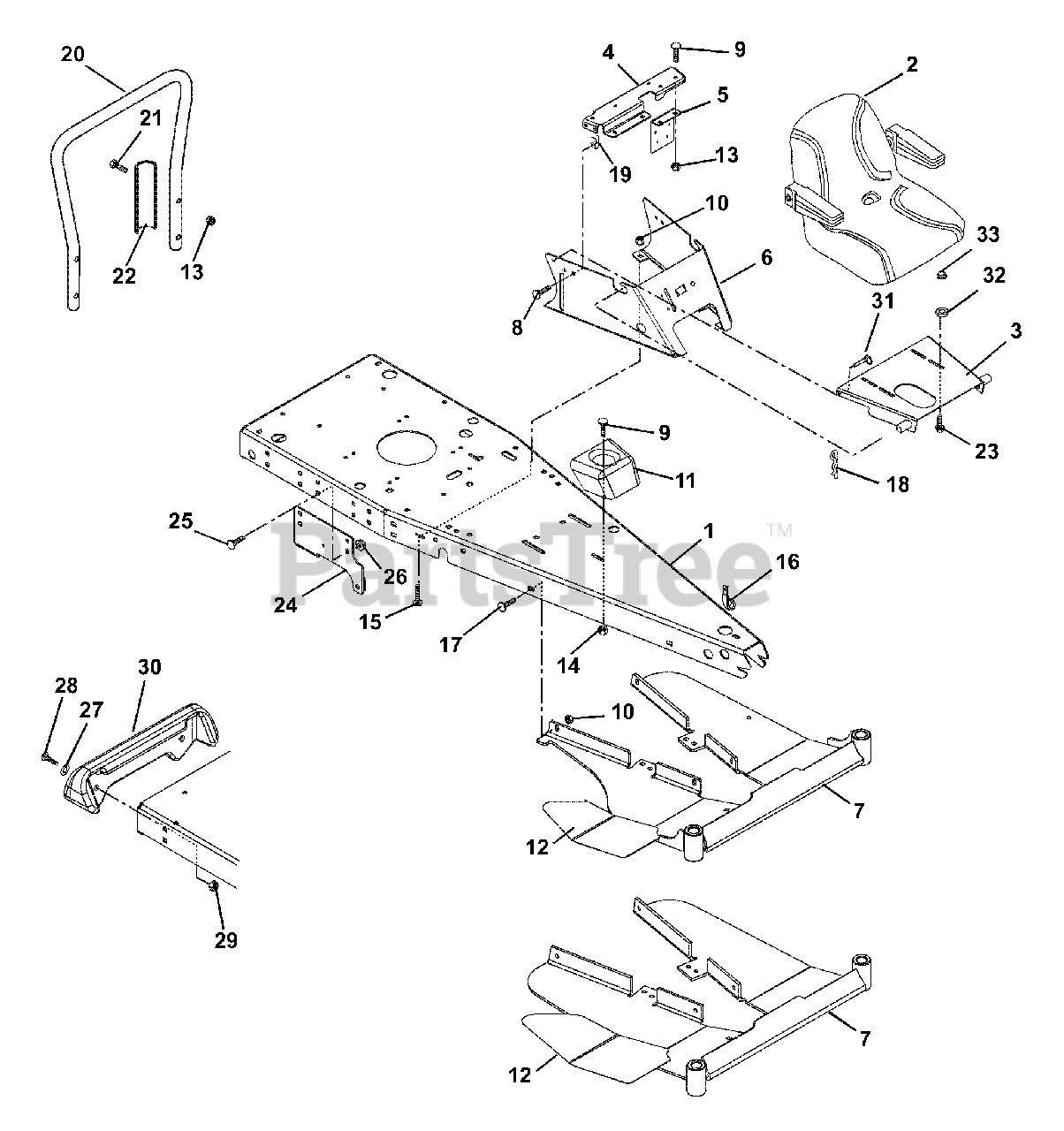

927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 020000 & Above) > Parts Diagrams (13) > Frame, Hood And Seat

  • Title
02780151

1

Frame

Part# 02780151

OEM Warranty Repair Part for Gravely

Not available

01599200

2

Seat, TS2500 Michigan with Arms

Part# 01599200 (Superseded to 00366300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $348.63

01611151

3

Weldment, Seat Plate

Part# 01611151

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $78.20

02764451

4

Reforcement, Seat Support

Part# 02764451

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.89

02766151

5

Panel, Solenoid Mounting

Part# 02766151

OEM Warranty Repair Part for Gravely

Not available

01610953

6

Seat Support

Part# 01610953

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $128.51

02765553

7

Weldment, Footrest (060)

Part# 02765553

Note: (060)

OEM Warranty Repair Part for Gravely

Not available

02760253

7

Weldment, Footrest (062)

Part# 02760253

Note: (062)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $212.36

07049400

8

Bolt-Serrated Hex Flange Washer Head .25-20 x .75

Part# 07049400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06226700

9

Bolt, Round Head Square Neck .31-18 x .75 Grade 5

Part# 06226700 (Superseded to 06200232)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06544500

10

Nut, Locking Top Flange .38-16

Part# 06544500 (Superseded to 06500726)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

02768500

11

Cupholder

Part# 02768500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

02763000

12

Grip, Footrest Left Hand (060)

Part# 02763000

Note: (060)

OEM Warranty Repair Part for Gravely

Not available

02771700

12

Grip, Footrest Left Hand (062)

Part# 02771700

Note: (062)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

02763001

12

Grip, Footrest Right Hand (060)

Part# 02763001

Note: (060)

OEM Warranty Repair Part for Gravely

Not available

02771800

12

Grip, Footrest Right Hand (062)

Part# 02771800

Note: (062)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06544400

13

Nut-Locking-Top-Flange .31-18

Part# 06544400 (Superseded to 06545400)

OEM Warranty Repair Part for Gravely

Not available

06530400

14

Nut-Spin Lock-Flange .312-18

Part# 06530400

OEM Warranty Repair Part for Gravely

Not available

06227000

15

Bolt-Round Head Square Neck .38-16 x .75 Grade 5

Part# 06227000 (Superseded to 06223900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

036518

16

J-Clamp

Part# 036518 (Superseded to 06909400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06226600

17

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5

Part# 06226600 (Superseded to 06223600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06711900

18

Pin-Hair-External .12 x .31 x 2.37

Part# 06711900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

032369

19

Nut-Retainer .25-20 x .56

Part# 032369 (Superseded to 07009000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

02701251

20

Tube (060, 062)

Part# 02701251

Note: (060, 062)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

05952400

21

Bolt, Hex .31-18 x 1.50 Grade 5 (060, 062)

Part# 05952400

Note: (060, 062)

OEM Warranty Repair Part for Gravely

Not available

02722700

22

Brace (060, 062)

Part# 02722700 (Superseded to 02722751)

Note: (060, 062)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

00591400

23

Bolt-Serrated Hex Flange Washer Head .31-18 x 1

Part# 00591400

OEM Warranty Repair Part for Gravely

Not available

02774900

24

Bracket, Transmission - Right Hand

Part# 02774900

OEM Warranty Repair Part for Gravely

Not available

02775000

24

Bracket, Transmission - Left Hand

Part# 02775000

OEM Warranty Repair Part for Gravely

Not available

06227000

25

Bolt, Round Head Square Neck .38-16 x .75 Grade 5

Part# 06227000 (Superseded to 06223900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06544500

26

Nut, Locking Top Flange .38-16

Part# 06544500 (Superseded to 06500726)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06435900

27

Washer-Flat-Steel .438 x 1.00 x .083

Part# 06435900

Note: (Optional)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05958500

28

Bolt-Hex .38-16 x 1.75 Grade 5

Part# 05958500

Note: (Optional)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06544500

29

Nut-Locking-Top-Flange .38-16

Part# 06544500 (Superseded to 06500726)

Note: (Optional)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

01595251

30

Weight

Part# 01595251

Note: (Optional)

OEM Warranty Repair Part for Gravely

Not available

07003300

31

Pin, Detent with Ring .25 x 1.00

Part# 07003300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

01612700

32

Spacer

Part# 01612700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06514900

33

Nut, Push .312

Part# 06514900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40
